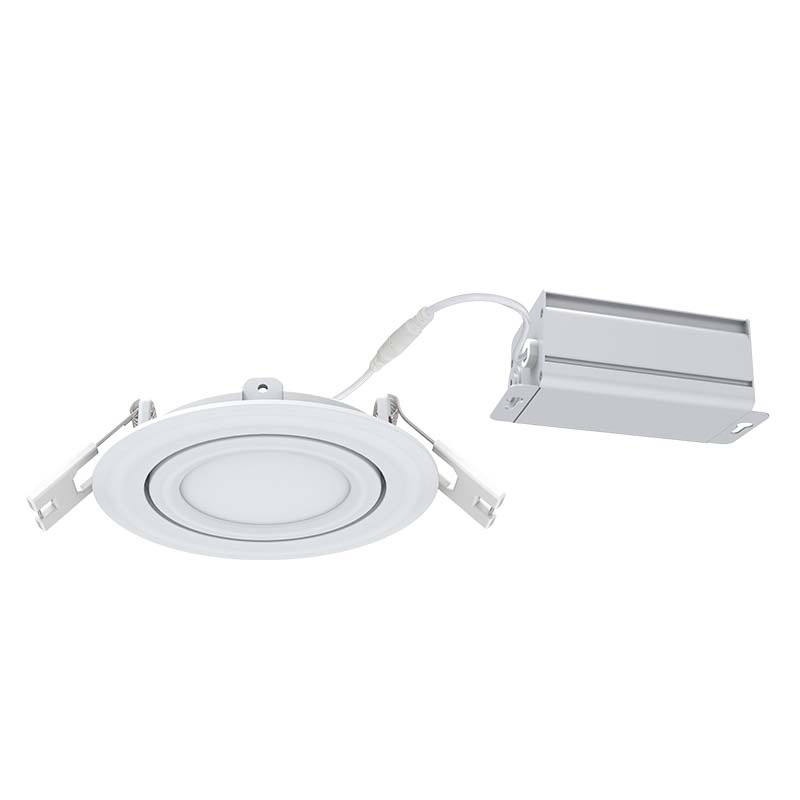

3″ Trimmed or Trimless Gimbal LED Recessed Panel Light

– The 6W super-thin gimbal recessed panel light is a high performance, easy installation of the residential lighting. Provides a good light output, good light, smooth and soft, high efficiency and energy saving.
– Using aluminum casting, good heat dissipation, simple and beautiful modelling of appearance.
– Dimmable, good compatibility matched with multi-brand dimmers, dimming stable and even, no strobe.
– Easy installation and time-saving, tool-free, no housing.
– New construction optional.
– The innovation type gimbal panel light, adjustable lighting direction, meet the demand for multiple lighting.


Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.


Applications: Recessed Ceiling Mount
Wattage: 6W
Light Output: 390lm
CRI: 80+/90+
CCT: 2700K-6000K
Driver Input: 120V AC 50/60 Hz
Power Factor: >0.9
Dimming: TRIAC Dimmers 10%-100% (120V only)
Location: Insulated Ceiling & Damp Locations
Lifespan: 50,000 Hours at 70% Light Output
Certification: ETL/ENERGY STAR
Warranty: 5 Year Limited for Fixture & Driver
Trim: Trimmed or trimless


Inner Box Size: 125X105X80 mm 1PCS/Box
CTN Size: 39.5X26.5X33 cm 24PCS/CTN

Product File Download

# File Added by File size Downloads
1 pdf BL3-007 liteharbor 297 KB 297

Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.

Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.

Contacting Liteharbor always makes surprise! www.liteharbor.com
