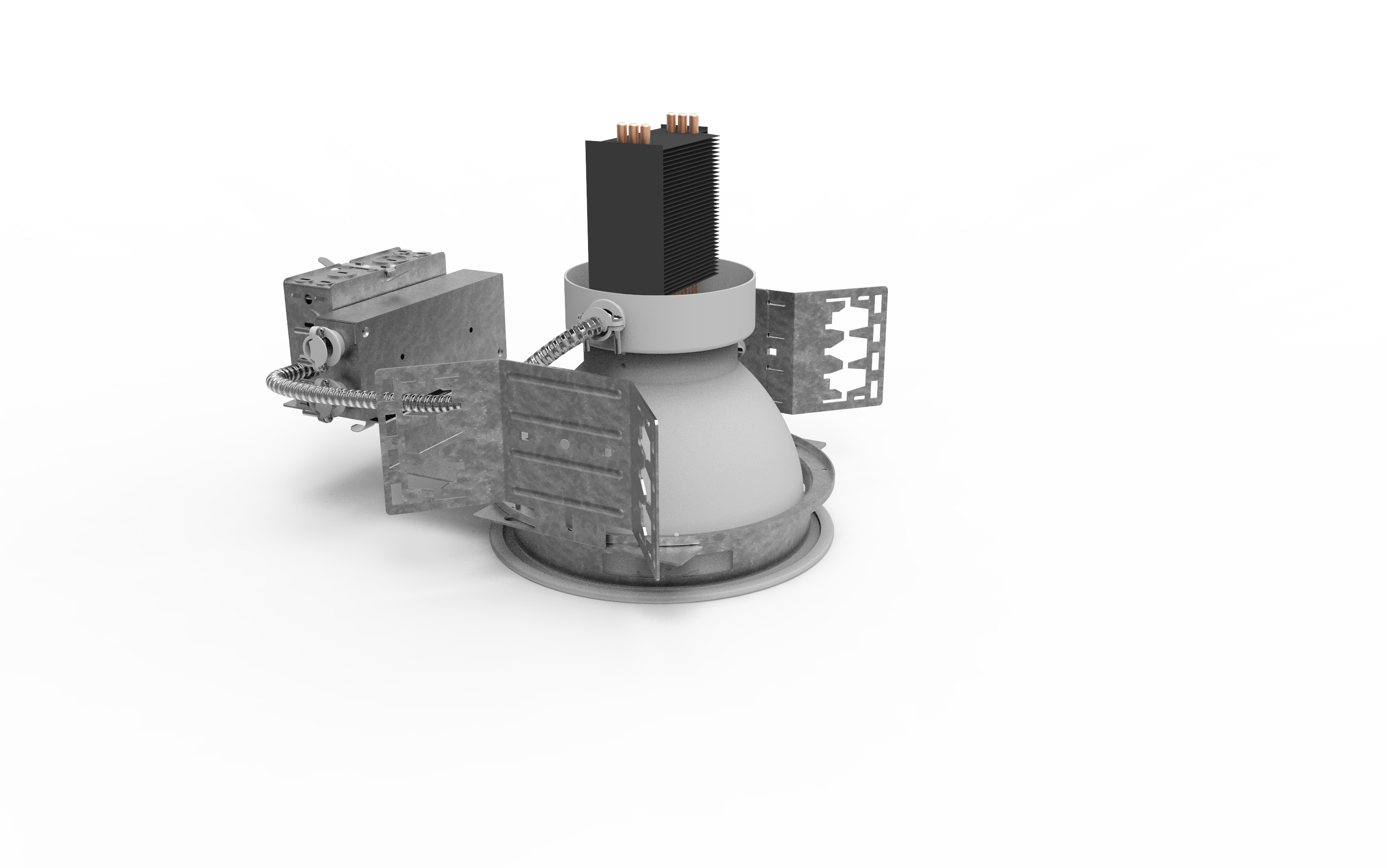

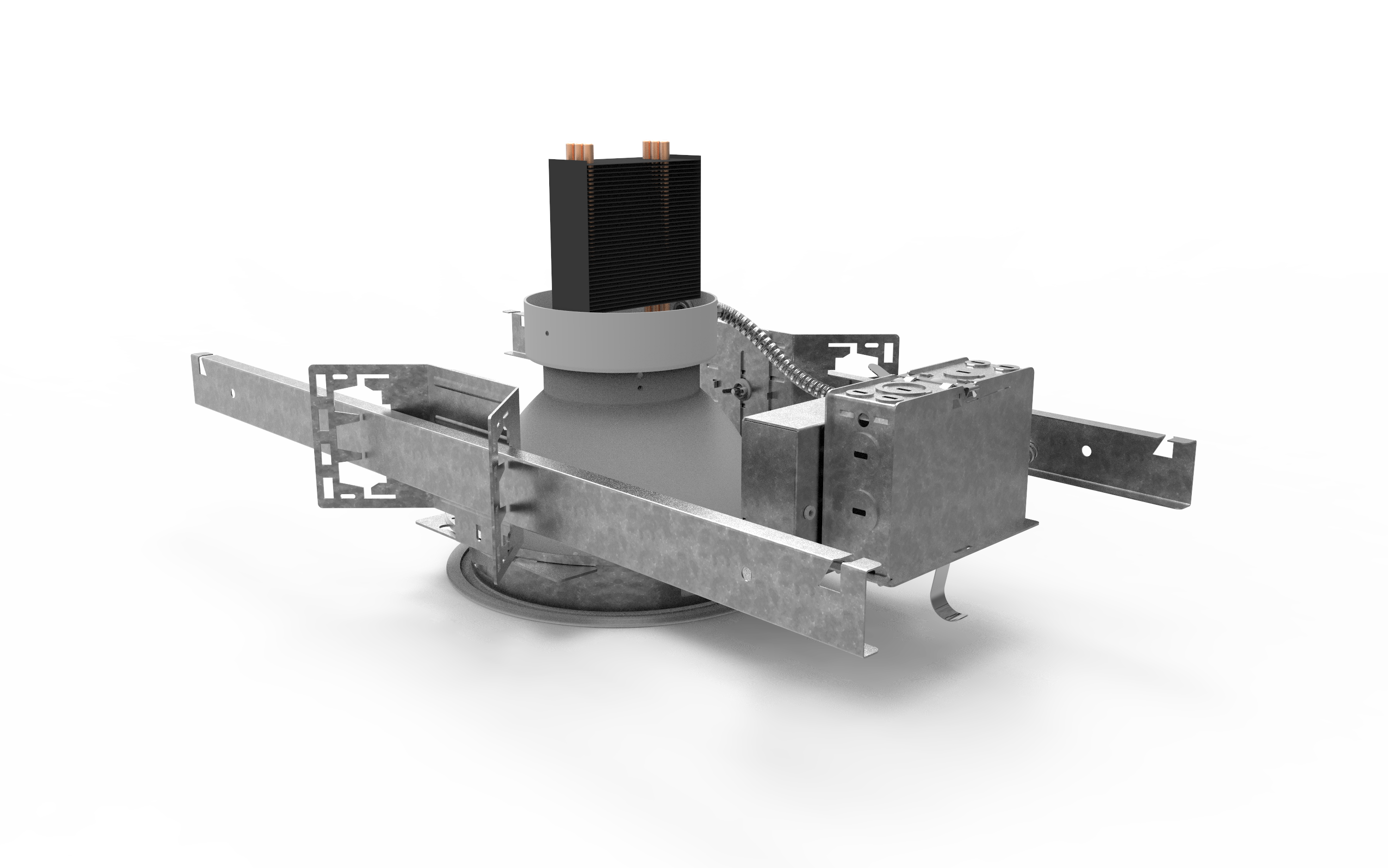

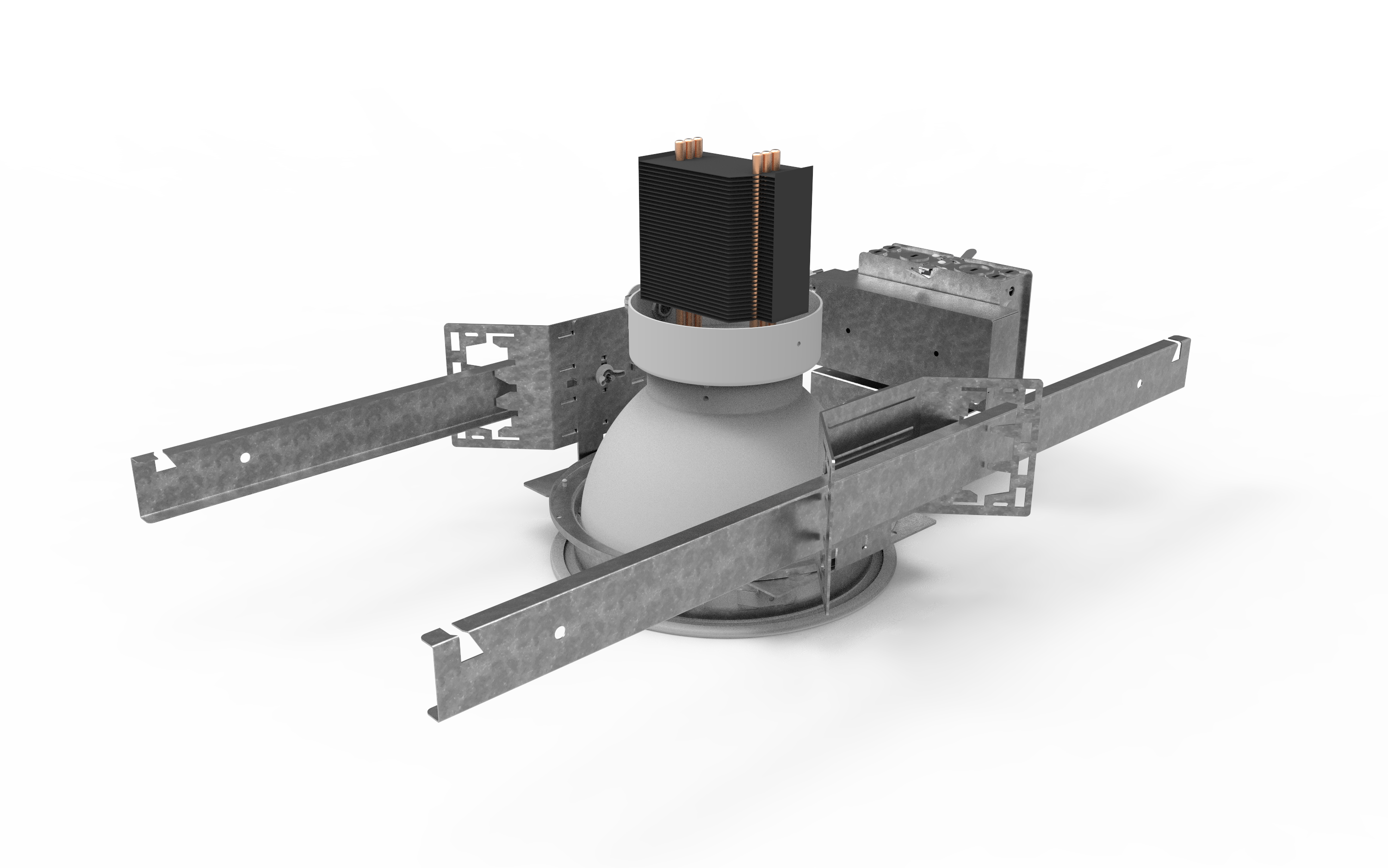

4″ High Lumen LED Recessed Lighting 60W Architectural LED Recessed Downlight

Description

1)Lighting is smooth and comfortable while using 50% less energy than the common CFL downlight.

2)Eco-friendly no lead or mercury.

3) Designed to install into an existing downlights mounting frame and convert them into energyefficient LED downlights to save anywhere from 35% up to 75% on energy cost.

4) Ideal suited for use in commercial, retail andother architectural applications.

FEATURE

•  Power Tunable, convenient inventory and cost savings.

• Up to 90lm/W, total 3200lm to 5400lm delivered lumens.

• Color temperatures selectable: 3000K, 3500K, 4000K,5000K,5500K.

• Advanced heat sink provides superior thermal management

for 50,000 hours of operation with 70% lumen maintenance.

• Unique impact resistant polycarbonate lenses provides uniform light output with lamp like appearance.

• Available with dedicated Emergency Battery Back-up.

• Die cast aluminum heat sink.

•  No Flickering, noise or RF interference.

•  Easy to install to suspended ceiling grids.

• Safe and stable guarantee without strobe, standard dimming control, matching most dimmers.

• Constant voltage 120/277V or 347V, 50/60Hz.

ELECTRICAL SYSTEM

Thermal protection guard protects the LED module from overheating and will dim LED module if necessary.

Fully dimmable down to 10% of initial light output with a 0-10 Volt dimmer.

LED MODULE

Cree true white® technology available

CRI>80%

Color temperature: 3000K-5500K

Rated for 50000 hours at 70% lumen output

No heat, mercury or UV

REFLECTOR ASSEMBLY

High purity spun self-flanged aluminum reflector with 1.2mm thickness and suppressed anodized finish. Available in several finishes in a variety of anodized colors as well as painted trim options, and available in different colors finishes.Reflector flange options include self-flanged and white painted flange.

DRIVER

The LED driver is rated for 50 to 60Hz at 120V/277V, also available in 347V input, produces less than 20%THD, has a power factor between 90% and 100%, and is thermally protected for additional safety.The LED driver is mounted to the J-box cover and is accessible from below the ceiling.

FRAME

Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection.

THERMAL PROTECTOR

External thermal device is located on the junction box wrap.

CLEARANCE

Frames require a minimum clearance of 3” ring from therma insulation and 1/2” from adjacent building component.

APPLICATIONS

Liteharbor ALX-HVA Series has 3 sizes, respectively 4”, 6”, 8” specification grade high output LED downlight capable of delivering over 13500 lumens and designed for ceiling heights from 20 to 60 feet.

Combining energy savings, long life, low maintenance cost & controllability, it is an excellent alternative to metal halide (up to 250 watts) and quartz (up to 500 watts) fixtures. Rated for a minimum of 50,000 hours life with 70% Lumen maintenance up to 40°C (104°F) when free airflow is available around the fixture.
