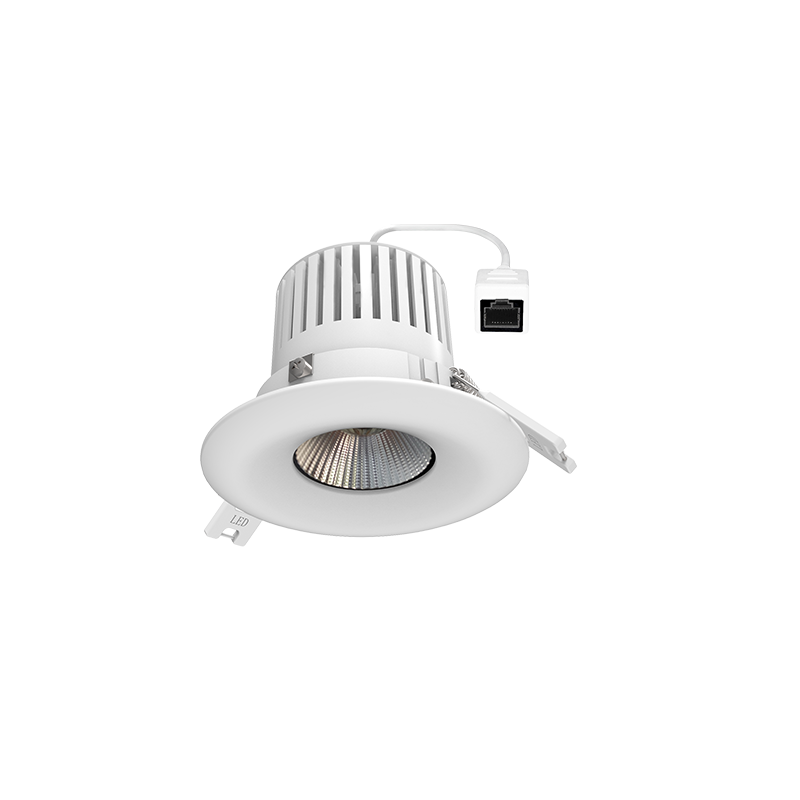

3″ LED Recessed Round LED Ceiling Down Light with RJ45 Adaptor
ITEM No.： BL3-921A
Shape : Round
Input Voltage : 24V(PoE Scheme)
Lumen : 800lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT/5CCT
Lifespan : 50000 Hours LED Dome Light
DESCRIPTION
Use cold forging radiator with good heat dissipation.Peculiar vortex type outlet, to ensure that the light is soft,avoid glare, unique irregular shape make an impression. PoE technology easy to maintain and replace. Brand chip safe and reliable. Dimming available, can be matched a variety of light regulator, dimming stability, no strobe. Square outer ring is optional
FEATURES
- PoE scheme or LED quick connector provided.
- Die cast aluminum body material with good heat dissipation.
- Higher reflection rate Reflector with nano powder sprayed on surface
- New construction is optional, no housing required
- Can be installed in 0.5 “to 1.25” thick ceilings
- Robust, durable and lightweight.
- 3CCT/5CCT range changeablen,convenient inventory and cost savings.
- Connection: RJ45 Adaptor suitable for CAT6/CAT7/CAT8 cables
- Easy to install to suspended ceiling grids
- Flicker free stable dimming, can be compatible with multi brand dimmer.
SPECIFICATION
| DESCRIPTION | BL3-921A | BL3-S921A | BL4-921A | BL4-S921A | ||||||||||||||||||||||
| Wattage | 8W | 12W | ||||||||||||||||||||||||
| Luminous Flux | 800lm | 1200lm | ||||||||||||||||||||||||
| Lumens / Watt | 100lm/w | 100lm/w | ||||||||||||||||||||||||
| CRI | 90+ | 90+ | ||||||||||||||||||||||||
| Colour Temperature | 3000K, 4000K, 6500K/3CCT/5CCT | 3000K, 4000K, 6500K/3CCT/5CCT | ||||||||||||||||||||||||
| Driver Input | DC 24V | DC 24V | ||||||||||||||||||||||||
| Dimming | Tunable White / Tunable White | Tunable White / Tunable White | ||||||||||||||||||||||||
| Location | Insulated Ceiling & Damp Locations | Insulated Ceiling & Damp Locations | ||||||||||||||||||||||||
| Finish | White,Black,Satin Nickel | White,Black,Satin Nickel | ||||||||||||||||||||||||
| Wire | Cat5/Cat6 | Cat5/Cat6 | ||||||||||||||||||||||||
| Working Humidity | 10% – 70% | 10% – 70% | ||||||||||||||||||||||||
| IP Rating | 20 | 20 | ||||||||||||||||||||||||
| UGR | <18 | <18 | ||||||||||||||||||||||||
| Beam Angle | 120° | 120° | ||||||||||||||||||||||||
| THD | <20% | <20% | ||||||||||||||||||||||||
| Installation | Recessed Ceiling Mount | Recessed Ceiling Mount | ||||||||||||||||||||||||
| Lifespan | 50,000 Hours at 70% Light Output | 50,000 Hours at 70% Light Output | ||||||||||||||||||||||||
| Executive Standard | ETL | ETL | ||||||||||||||||||||||||
| Warranty | 3 Year Limited for Fixture & Driver | 3 Year Limited for Fixture & Driver | ||||||||||||||||||||||||
APPLICATIONS
- hospitality
- Retail
- Kitchens
- hotels
- Museum
- indoor / outdoor residential,
- offices
- Commercial
- shopping mall stores
POE SOLUTION
Liteharbor PoE solution with single/double ethernet interface“One in” or “One in One out”design. It’s provides RJ45 wiring system suitable for CAT5, CAT6, CAT7, CAT8 Ethernet Cable with UL listed . PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.

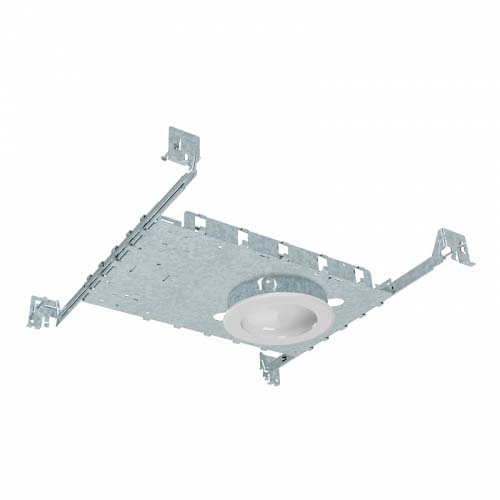

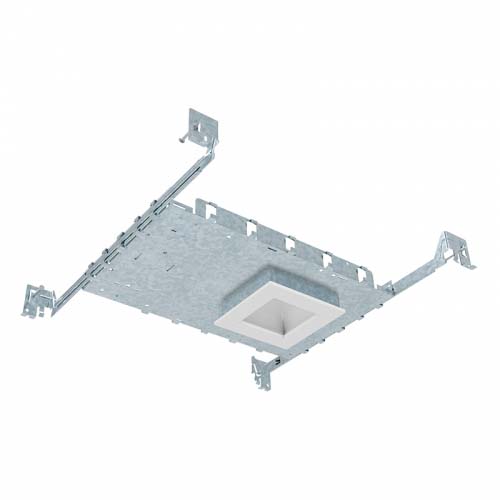

MOUNTING CLIPS
New construction is optional.
Can be adapted to the 0.5 “to 1.5” ceiling.
Easy installation, tool-free and save time.
Various installation clip for choose.
One Clips Type: Install with no housing required.
Three Clips Type: Install with housing required.
LISTING / WARRANTY
- ETL to US and Canadian standards for damp location W/Feed through.
- 3 Year Limited Warranty.
