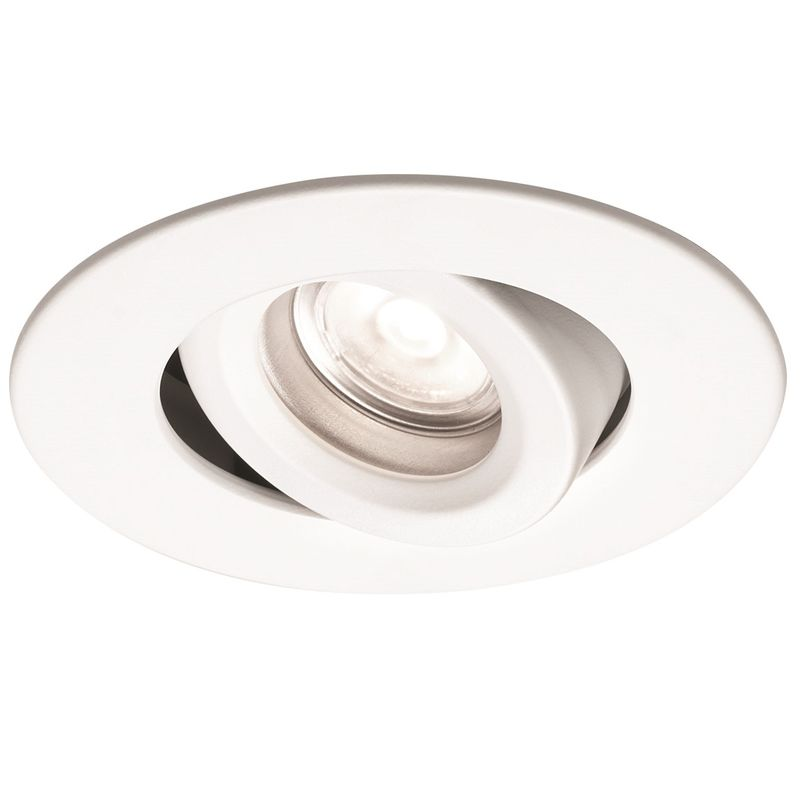

Contrast Lighting UR4A 4″ 15W Round Adjustable Trim
Series：UR4A
ITEM No.：DR4A
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round adjustable 4in dedicated LED trim of the Urbaï recessed LED series made by Contraste available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This popular model is offered with a choice of 6 lenses – or without a lens – and 6 trim finishes. Four color temperatures are offered with a 90+ or an 80+ CRI (2,700K and 3,000K only) along with a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option – from 3,050K to 1,800K – is available in performance 2 (15W). The housings allow for a wiring on 120V or 277V input and two dimming options: ELV or 0-10V. The UR4A model offers a great performance delivering 1018 @ 3,000K – 101 lm/W – in performance 1.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 915LM/ 1255LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 16°/ 32°/ 48° |
| Luminous Size: | φ 2-3/4 in |
| Height: | 3-3/4 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 217 |
| 2 |
DG-FT_UR4A_EN
|
liteharbor | 8 MB | 113 |
