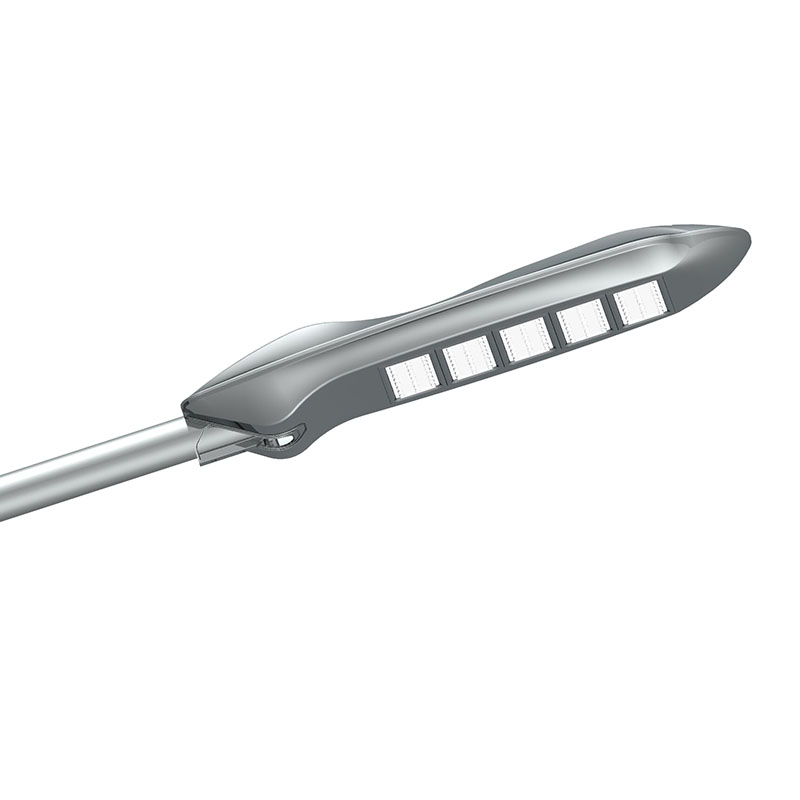

ETL High Power LED Street Light

Description

Specifically designed for road lighting needs to optimize

the design of a new type of environmental protection and

energy saving products which meet the special requirements

of the road.

This product uses CREE high power LED light source.

Features

The smooth linear and the LED structure characteristic organic combination,Appearance simplicity

and comfortable,The concept design of the humanized structure of the lamp.

Excellent self cleaning function,Curve shape design,Simple, delicate and smooth,Good self cleaning

function,make the light body surface clean,To maintain good heat dissipation effect, to ensure the life

of LED.

High pressure die casting aluminum alloy (ADC12) integral forming,With sufficient strength and good

seismic performance,At the same time, the whole lamp protection level is good, reaching IP65.

Unique two light distribution design, the lost light curve is a bat wing, the standard rectangular light spot,

to ensure that the light distance in the 40M can achieve good uniformity.

Long life power supply to ensure that the service life of 50000 hours or more, with the short circuit protection

open circuit protection, thermal protection and other multiple protection functions,to achieve synchronization

with the LED lamp life.

Details

Wattage: 90/120/150/160/200W

Input Voltage: AC90-305V   47-63Hz

Power Factor: >0.95

CRI>75

Working Temperature: -30 — 50°C

CCT: Warm white2850-3200K

IP Rating:IP65

Life Span>5,0000Hours

Class:CIASS  I

Dimensions:750X419.5X120mm

Mounting:Cantilever mounting

Application

Suitable for urban major road,secondary road,sidewalk residential zones,

Industrial area,square,park,school,Villa courtyard etc.

Other Special Requirements please Confirm with Factory

Listing/Warranty

ETL Listed to US and Canadian standards for wet locations.

5 Year LED Limited Warranty

Product File Download

# File Added by File size Downloads
1 jpg DG5103 liteharbor 47 KB 256
