8FT High End Suspended Mounted 40W/80W LED Linear Strip Light Parking Lighting

ST-4/ST-8 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Using imported high transmittance pc cover, retain color for long time.
Available in 1×4 and 1×8 models. Beam Angle :120°
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 v dimming.
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.

Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.

Light Source
Using the energy-saving highlighting 2835 SMD LED light source.

Distributed LED array in a variety of lumen output packages.

LED color is available in 2700-6500K. Module is replaceable.

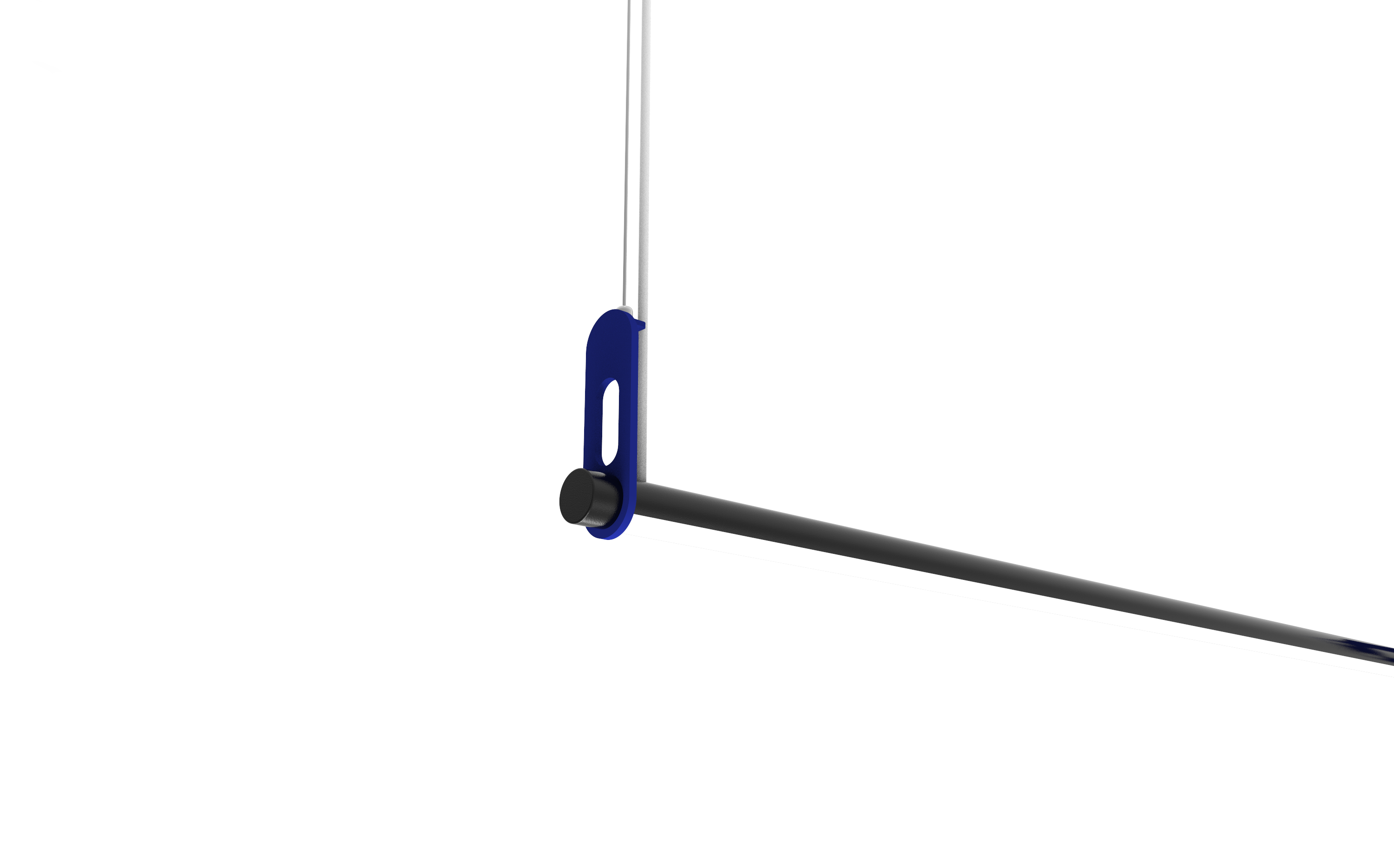

Luminaires can be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.

Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.



Power 40W/80W
Voltage 120V ~ 277V AC
Frequency 50/60Hz
CRI 80+/90+
Dimmable NONE/0-10V
Power Factor >0.98
CCT 2700-6500K
Certification ETL listed.DLC
Lifespan 50000 H


Inner box: 140*80*1225mm 1 pcs/Box     Outer box: 124*29.5*18.5CM   4PCS/CTN

Product File Download

# File Added by File size Downloads
1 pdf ST-4 & ST-8 liteharbor 133 KB 511
