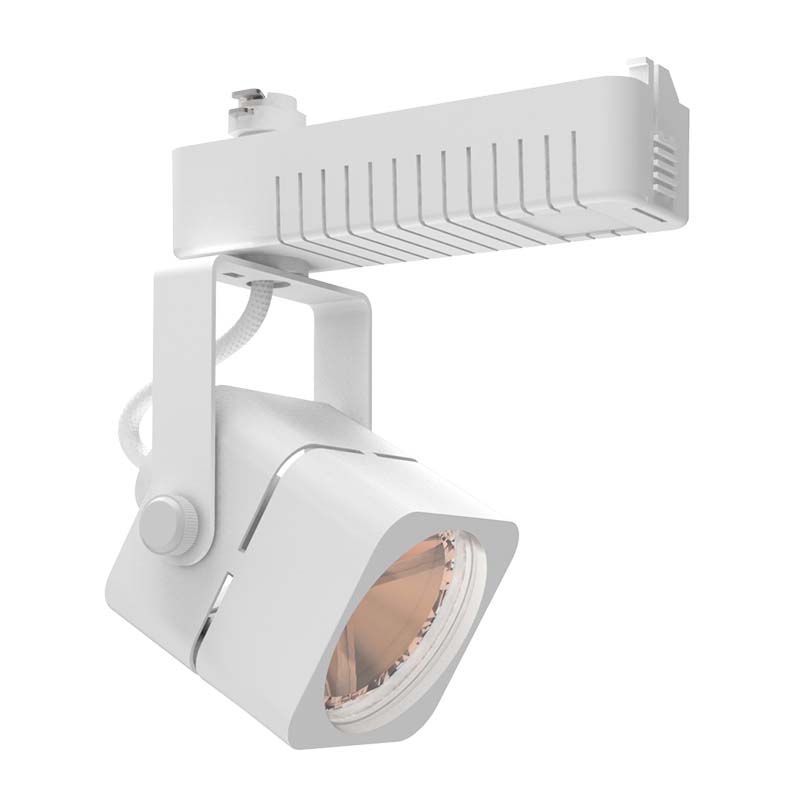

LED Track Lighting Canada America Standards
ITEM No.: K1103
Input voltage: 12V
Lamp: LED MR16 8W max.
Material: Die cast aluminum
Finish: Black/ White/ Silver or customized
Wires: 2/ 3/ 4 wires track
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
A small profile LED track light head that delivers optimal lumen output, with precise aiming for accent, task, or general illumination, integrating into any design. Track heads are adjustable up to 360 degrees horizontally, 180 degrees vertically, and are compatible with 1-circuit and 2-circuit track. With the use of a friction-based locking movement system, the head can be adjusted and re-adjusted to a precise position, delivering light where needed. A perfect complement for retail merchandising, galleries, museums, supermarkets, hospitality, and commercial. Engineered to dissipate heat for long lasting operation and high color rendering. Low voltage die cast aluminum designer gimbal fixtures with MR16 light source. Yoke provides full adjustment position of light source for special aiming and dual tightening knobs assure secure lock on angle position.
Die cast aluminum provides superior strength and rigidity.
Low profile, aesthetic design.
Adjustable yoke for custom aiming.
One or two circuit track capable.
Iron / die cast aluminum construction; gimbal appearance and design features. All edges are softened for aesthetic appearance.
Iron yoke connects fixture housing to electrical contact head. Dual plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provide secure angle position.
LED MR16 8W max.
Solid state electronic transformer provides noise-free voltage reduction and operation. If dimming, use electronic low voltage rated only dimming controls. Integral Unit: 120V/60Hz Input; 12V Output; 50VA Max. load
Black, White and Satin Nickel heat rated baked enamel paint.
Custom painting or anodizing for special applications is also available. Custom finishes will require lead times that vary depending on vendor schedule. Please consult factory for quotation.
Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.
Two Year Limited Warranty.
