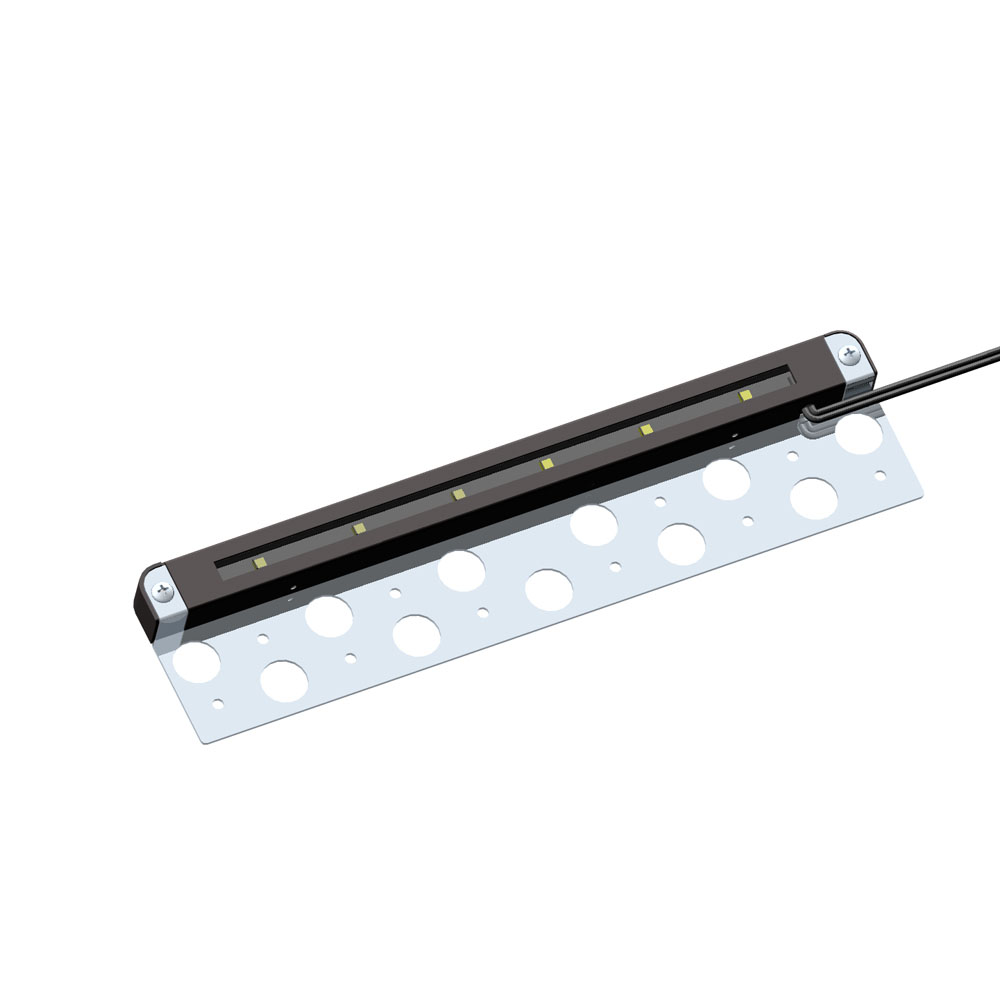

Liteharbor Outdoor Hardscape Light with 6 PCS LED Chips

Liteharbor Hardscape Lamp is the perfect solution for outdoor applications, this fixture is intended to be installed between
brick or masonry, fully encapsulated design ensures the fixture will stand the test of time with no callback or replacement.

– Die-casting aluminum light bar, stainless steel mounting bracket and screws.
– Break off corners on mounting plate for easy install.
– Operates at 12V with no loss in output due to constant current technology.
– Removable light bar can suitable for different application.
– 120 degree beam angle with 6 pcs LED chips at a total of 1.5W.
– Using LED SMD 3535/5050 Chips, the quality is guaranteed.

Suitable for retaining wall, gardens, benches, gazebos, decks, patios, stairs and outdoor living spaces.

Product Details

Product Series LED Hardscape Light
Item No. DG6205


Electronic Performance

Input Voltage AC/DC 12V
Frequency Range 60Hz
System Power 1.5W
PF >0.9
Driver Liteharbor
Dimmable Non-dimmable


Optical Performance

Total Lumen 100 lm
LED Light Source SMD3535/5050
CCT 2700K-5000K
CRI 90+
IP Rating IP66
Beam Angle 120 Degree


Mechanical Performance

Material Stainless steel/Aluminium/Bronzed
IP Rating IP65
Finish White/Black/Brown
Dimensions 327.5mm*76mm*18.5mm



5 Years Lmited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf DG6205 liteharbor 77 KB 249
