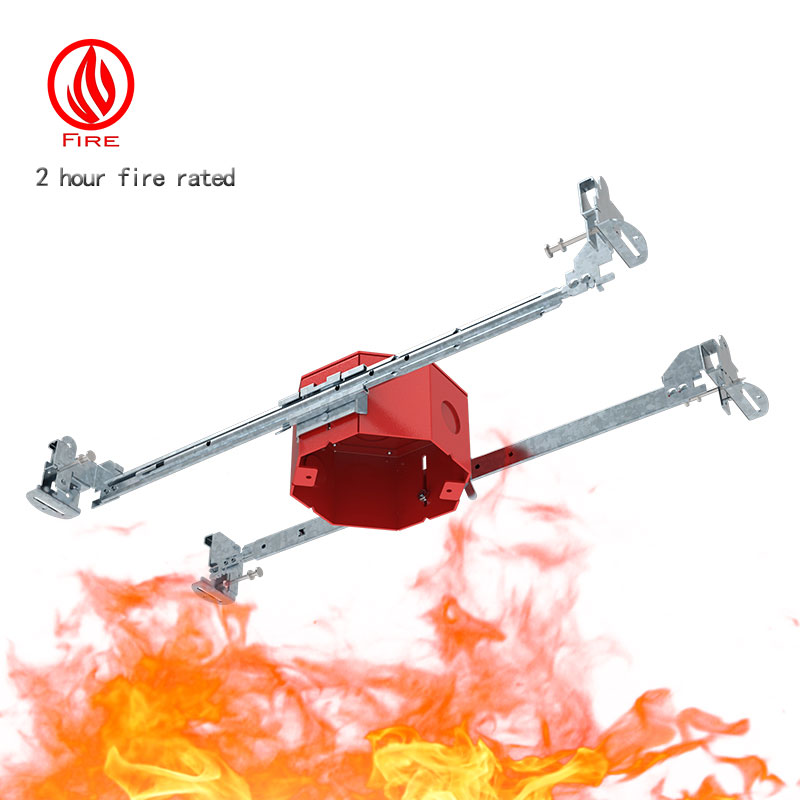

NEW CONSTRUCTION OCTAGOD FIRE RATED JUNCTION BOX

Description

Liteharbor FIRE RATED JUNCTION BOX  has a two-hour fire rating, which is code compliant for a maximum two-hour fire rating when installed in the appropriate fire-rated assembly. This is suitable for use in common entry/exit passageway applications when a fire rating is required.

Feature

₋2 Hour Fire Resistance to meet and exceed strict fire safety codes.

₋Rated for direct contact with IC insulation.

₋ETL Certificates ASTM E283 certified Air Tight.

Applications

Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail. Especially in areas with limited ventilation, such as closets and utility rooms.

Housing:

Unit:mmDie formed #16 gauge galvanized steelconstruction, Up to 120 minutes fire rated L500 (floor-ceiling) & P500 (roof-ceiling) design.

Hanger Bars:

Pre-installed #21 gauge adjustable bar hangers (14”-24”) for wood joist or t-bar ceiling installations.

Installation:

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams. Integral T-bar slots for easy installation in T-Bars.

Spans up 24″ and can be repositioned 90°.

Score lines allow for tool-free hanger bar size reduction.

Integral leveling flange allows forsingle-person installation while easily aligning the housings with the joists.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through. IC rated, Airtight ASTM-E283 Certified, UL 263 certificated up to 2 hour fire rated.

3 Year Limited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf FJ-BOX-O liteharbor 1 MB 651
