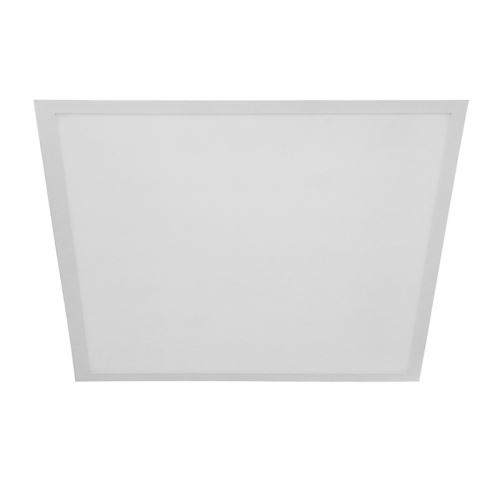

POE Solution 600 * 1200 Back-lit LED Panel Light With Power/ CCT Tunable For Commercial Lighting


LED panel light is a kind of top grape indoor lighting product which is composed of a number of high-brightness LEDs. Its unique structure design, side view emitting, uniform plane emitting effect which is formed after the light go through the high-transmittance LGP and diffusion plate, good illumination uniformity and soft light which is comfortable but bright, can relief eye fatigue effectively, and prevent radiation. It will not stimulate the skin of pregnant women, elders and children. The lamp design is simple, beautiful and luxurious. It not only has good lighting effects, but also brings a feeling of beauty. It is a new, top grade, and fashionable indoor lighting luminaire.



  • Power over Ethernet(POE) Lighitng Solution option
  • 2.4G Wireless CCTTunable.
  • Power & CCTTunable.
  • Without LGP, never turn yellow.
  • Isolated driver, PF>0.9, THD≤15 %
  • Super bright SMD2835 LEDs, LM80 rated Ra>80.
  • Lumen output: 130LM/W
  • AC120-277V or AC120-347V, 0-10V dimmable.
  • Non-flicker, no dark spot, protect your eyes.
  • Ideal replacement for traditional troffer with over 80% energy saving.
  • Back-lit technology diffuse reflection, uniform and soft light, no glare, no humming, no flare, no direct attention, effectively alleviate eye fatigue, more healthy use.
  • Newest LGP technology, higher luminous efficiency.
  • Leading LED driver design, overlong lifespan.
  • Delicate structure design, ultra thin and ultra light.
  • Simple, fashionable and elegant appearance.
  • Easy installation,can replace the same size of ceiling lights or grille lights.
  • No lead, no mercury, energy saving and environment friendly.
  • IP Rating: IP40.
  • Operating temperature: -20°C to 50°C.


Liteharbor’s DGL-P series with single/double ethernet interface“One in” or “One in One out”design. It’s provides Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.

Attribute Cat 6 Cat 7 Cat 8
Frequency 250 MHz 600MHz 2000MHz
Transmission speed 1Gbps/10 Gbps 10 Gbps 25 Gbps/40 Gbps
Distance 100m 100m 30m
Number of Connectors in Channel 4 4 2
Cable Construction UTP or Shielded Shielded Shielded
Connector Type RJ45 RJ45 RJ45


LED panel light is widely used in commercial lighting, residential lighting and communal facilities lighting such as meeting room, office, office building and so on.
Factory, hotel, restaurant, KTV, supermarket, market, subway station, the station’s waiting room, school, hospital, and all other places need energy saving and high CRI.



Description DGL-P6628-B DGL-P12328-B DGL-P12628-B
Size 24”*24” 12”*48” 24”*48”
Regular Back-lit Series Wattage 25W/30W/35W 25W/30W/35W 35W/40W/50W
2.4G Wireless Back-lit SeriesWattage 35W 35W 50W
Edgelit Power & CCT Tunable Series Back-lit Wattage 20W-25W-30W-35W 20W-25W-30W-35W 35W-40W-45W-50W
Input: AC100-277V/AC120-347V, 50/60Hz
Luminous Flux 3250lm/3900lm/4500lm 3250lm/3900lm/4500lm 4500lm/5200lm/6500lm
Lumens / Watt 130LM/W
Dimming 0-10V Dimminhg/ 2.4G Wireless Dimming / CCT Tunable
Color temperatures 3000K,3500k,4000k,5000k
Function ●Wireless dimm ing                                      ●Dimming
●Wireless dimming + Sensing                        ●Dimming + Sensing
●Wireless dimming + Emergency                  ●Dimming + Emergency
●Wireless dimming + Sensing + Emergency   ●Dimming + Sensing + Emergency
●CCT & Watt Tunable                                 ●CCT & Watt Tunable + Sensing
●CCT & Watt Tunable + Emergency            ●CCT & Watt Tunable + Sensing + Emergency
PF: 0.98
Working Temperature: -20℃ – 50℃
IP Grade: IP44
Anti-power level: Class II
LED Chips: SMD2835
Emitting Color: Warm white/Pure white/Cool white
Certifications: UL DLC CE RoHS FCC
Lifetime 50000 Hours



Certifications: UL DLC CE RoHS FCC
50000 Hours Lifetime.
5-Year Limited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf DGL-P6628 Back-lit liteharbor 2 MB 200
2 pdf DGL-P12328 Back-lit liteharbor 2 MB 193
3 pdf DGL-P12628 Back-lit liteharbor 2 MB 190
