Square Shape 2″ New Construction LED Downlight Series

Construction

– Cast aluminum trim routes heat away from electrical components

– 2″ LED housing required for use of 2″ LED Downlight Series

Optical System

– Optical lens diffusers eliminate “hot spots” , uniform light

– Beam spread options available: Standard Flood, Narrow Flood

Electrical

– Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50

– Dimmable to 10% with most standard triac dimmers

– Operating temperature rating of 0°F to 120°F (-18°C to 49°C)

–  Lifetime rated for greater than 35,000 hours

– LM-79, LM-80 testing performed in accordance with IESNA standards

– 120V input to driver

Finish

– Exterior white powder coat finish

– Also available in Black, Oil-Rubbed Bronze and Nickel

Installation

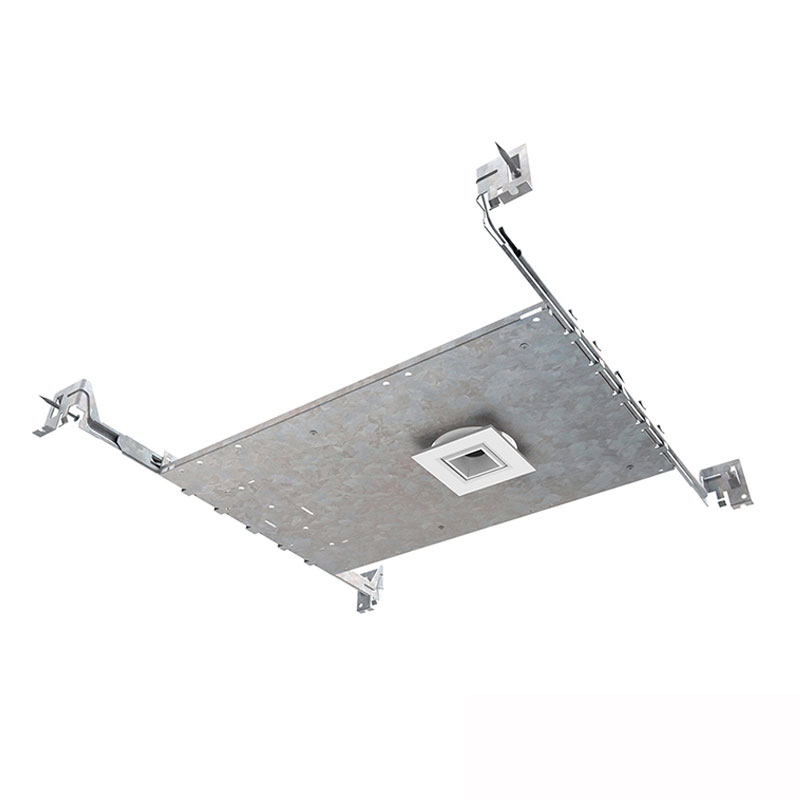

– 2″ recessed housings required: Available in remodel, new construction, and IC/ Airtight new

– Quick and easy installation with a snap-in IDEAL connector and friction clip mounting system

Listing / Warranty

– ETL listed to US and Canadian standards for damp location W/Feed through.

– 5 Year Limited Warranty.

Applications

– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.

Parameter

Voltage: 120V

Watt: 8W

Lumen: 600lm

CRI: 80/90+

CCT: 3000K, 4000K, 5000K

Product File Download

# File Added by File size Downloads
1 pdf BL2-R-NC, BL2-S-NC liteharbor 553 KB 271
