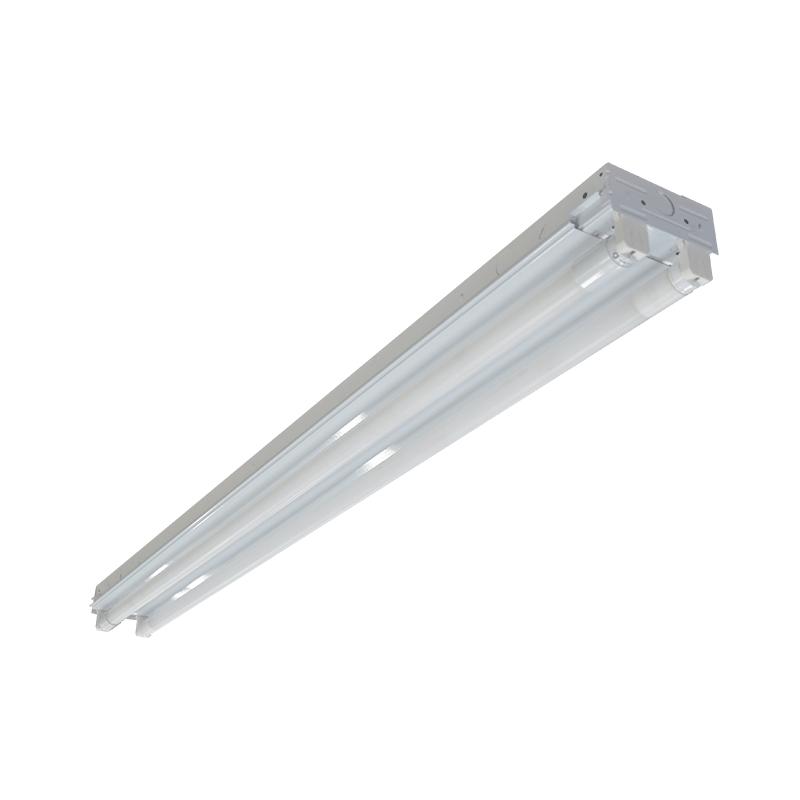

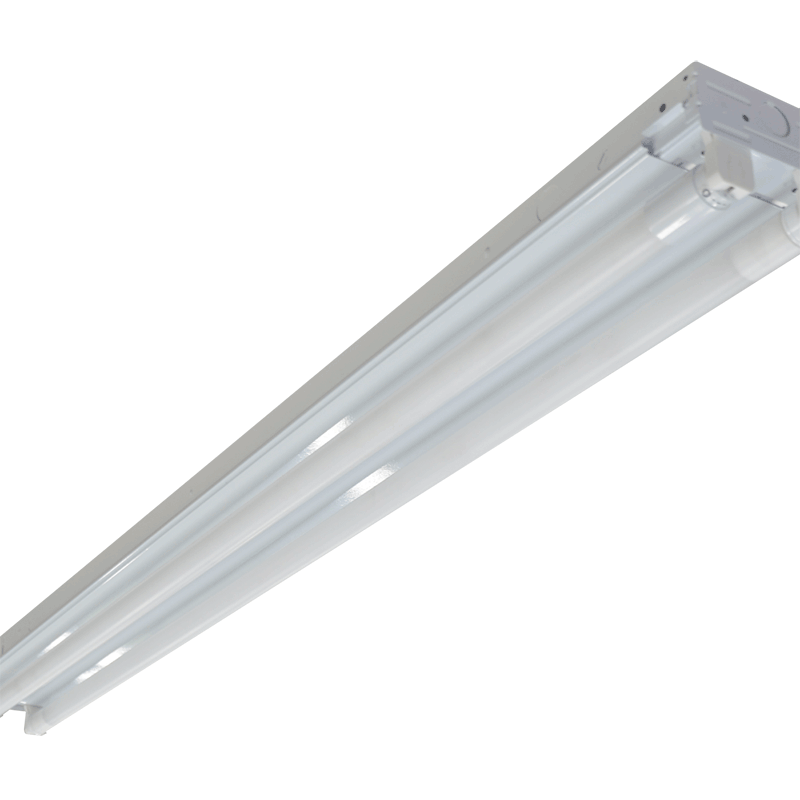

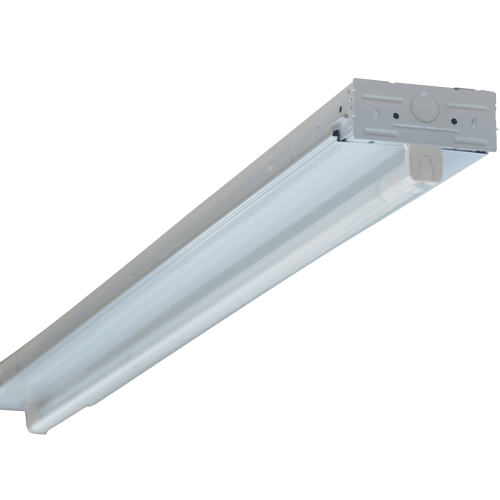

Suspended/Surface Mounted 8ft Ready Strip Light for T8 Tube Surpermaket Lighting

Features
The product is a single tube or double tube T8 LED tube, providing high lumen, thin, elegant in appearance,
safe and reliable, easy to install and maintenance linear Light.
This series product is an industrial grade luminaries which is ideal for retail, commercial and industrial applications.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Single socket or double socket for options
Available in 1×4 and 1×8 models
IP Grade: IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.

Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.
End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.

Mounting
Luminaires can be surface mounted or suspended, individually or in continuous row.
Fixtures easily snap together for long continuous rows.

Application
Suit for the garage, warehouse, basement and car parks and other places to provide general illumination.

Specification

Power 18W/Tube
Voltage 120V/277V AC
Length 8 Foot
Lumens 2000 Lumens/Tube
Beam Angle 120°
CRI 80+/90+
Dimmable NONE/0-10V Dimming
CCT 2700-6500K
Certification ETL listed

Light Source is not included

Packing
4 Foot Outer box: 13.3*10*124CM   2PCS/CTN
8 Foot Outer box: 13.3*5.3*246CM   1PCS/CTN

Product File Download

# File Added by File size Downloads
1 png Led Ready strip Light liteharbor 54 KB 44
2 png DGL-4WT81 liteharbor 39 KB 41
3 png Led Ready strip Light liteharbor 65 KB 42
4 png Led Ready strip Light liteharbor 43 KB 44
5 pdf DGL-4WT81 DGL-4WT82 DGL-8WT82 DGL-8WT84 liteharbor 273 KB 74
