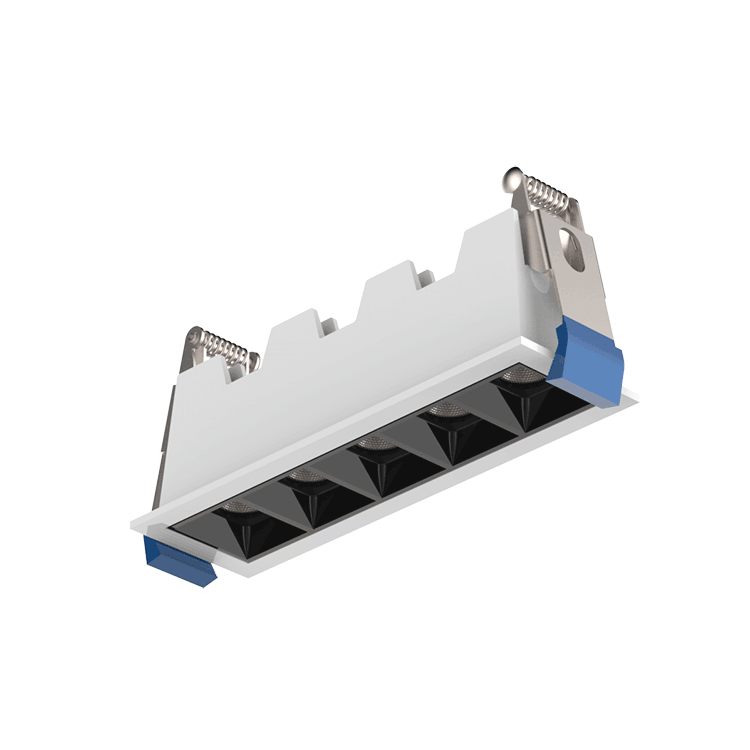

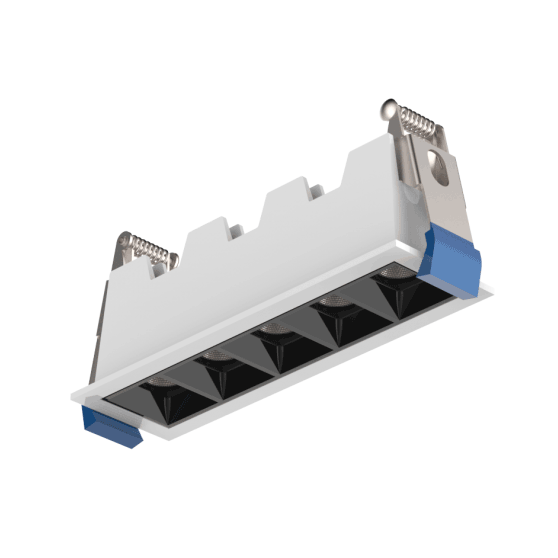

Trimmed/Trimless Vertical Mini LED Multiple Downlight with 5 Lamps
ITEM No.: G4011A-05
Watt : 2W/Lamp
Series : Mini LED Multiple Downlight
Application : Commercial/Residential
Description
The Mini multiple downlight Series is equipped with1, 2, 5, 10 and 15 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort.Multi spotlight recessed features a quiet aperture for a nearly glare free environment.
Features
– Revolutionary narrow Recessed downlight available in slim trim or trimless.
– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.
Specification
– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic

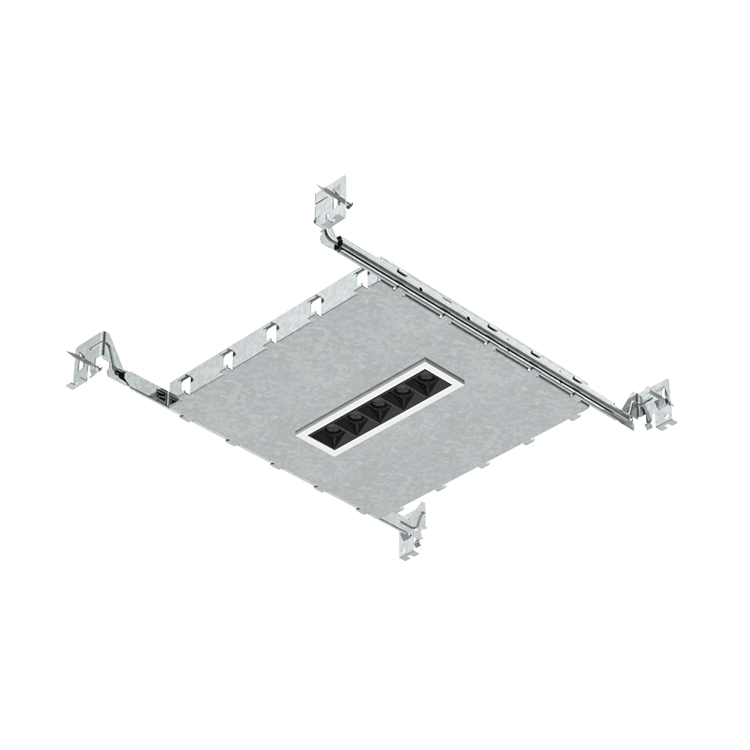

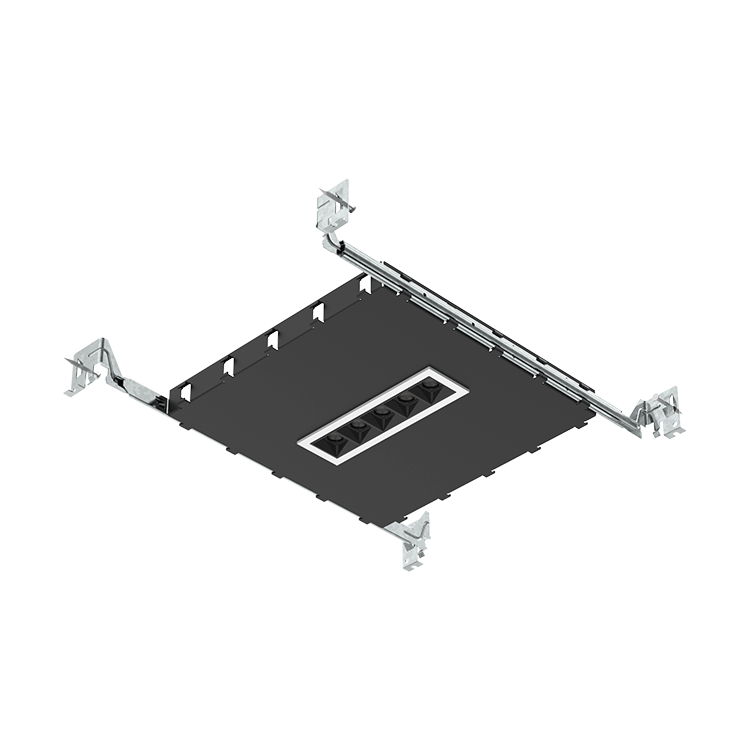

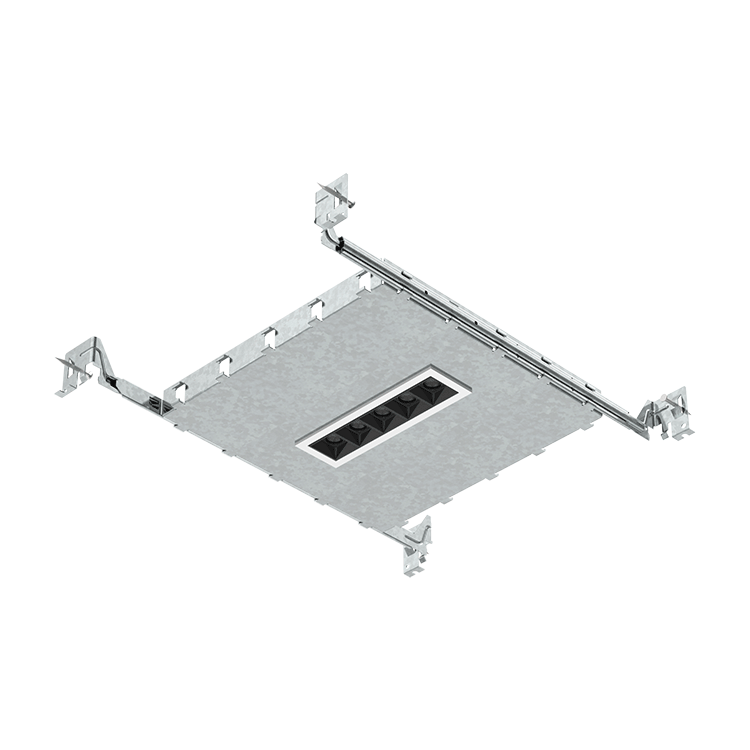

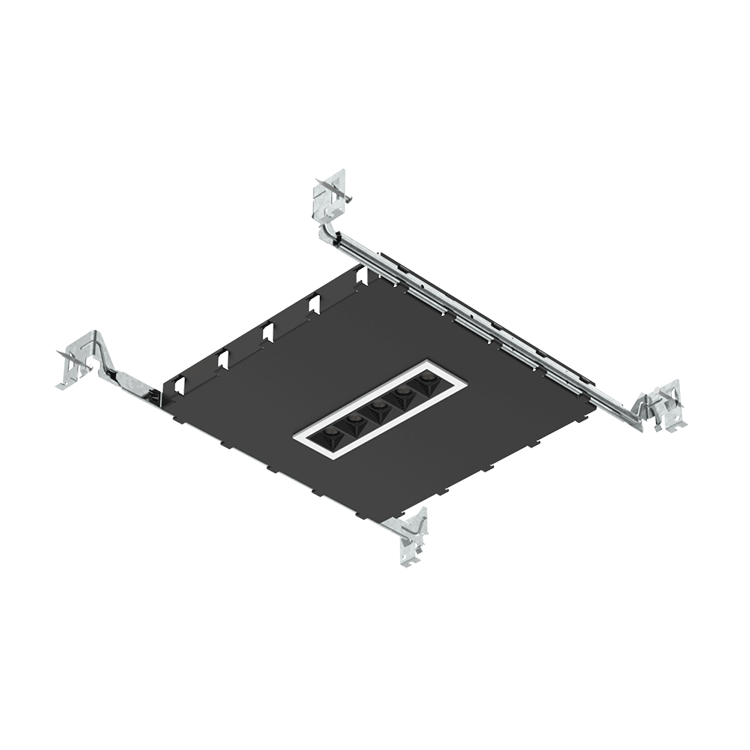

– Mounting: New construction installation or remodel installation
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.
Parameter
Wattagte | 2W/Lamp |
Lumen | 65-80lm/W |
Optics | 30° |
CCT | 2700K ~ 6000K |
Material | Die-cast Aluminum |
Dimming | Non/TRIAC/0~10V |
Finish | White/Black/Silver |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | G4013A-15 | liteharbor | 917 KB | 568 |
2 | G4013A-15-NC | liteharbor | 385 KB | 440 |
3 | Mini Multiple DownLight | liteharbor | 1 MB | 775 |
