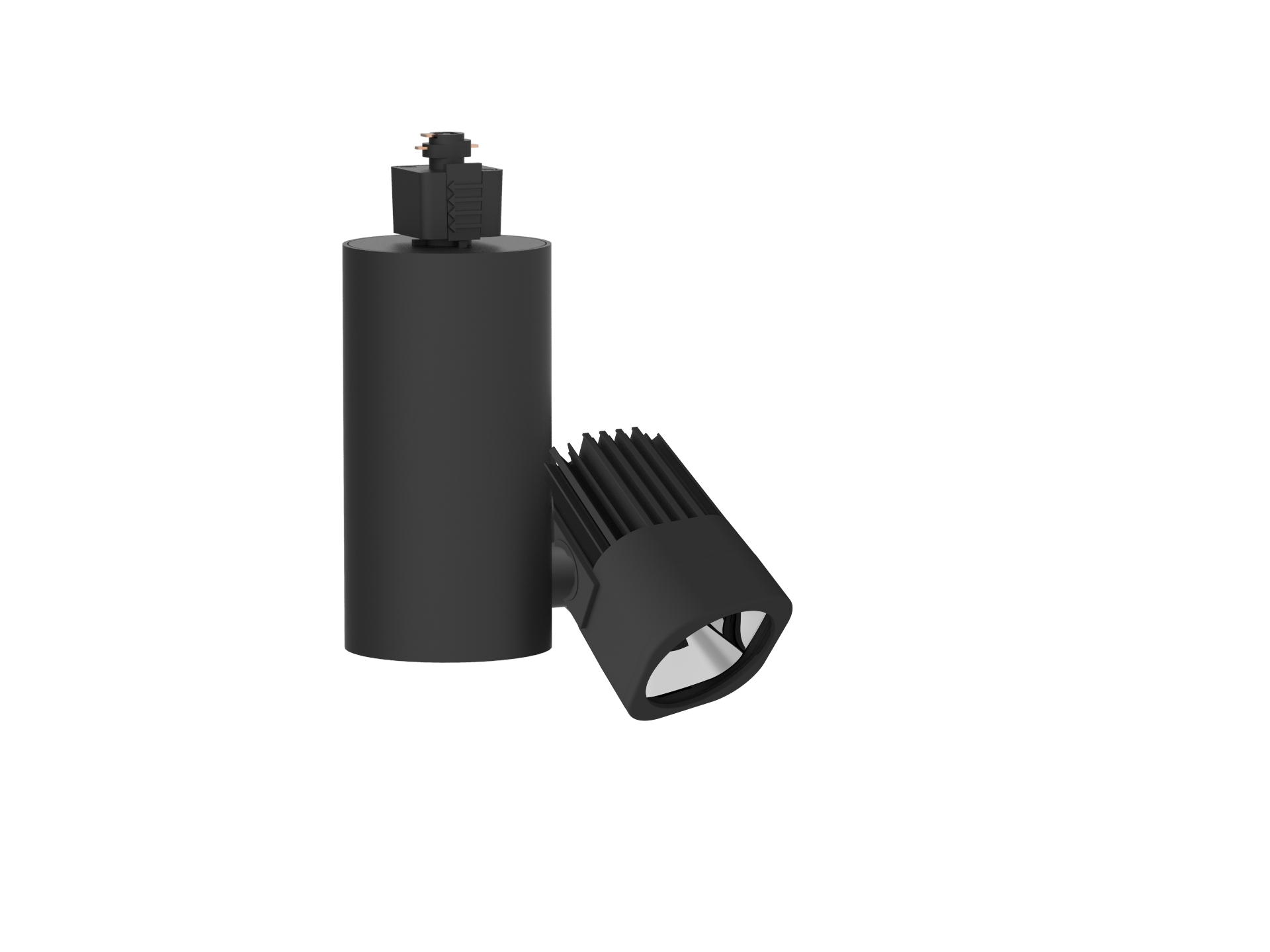

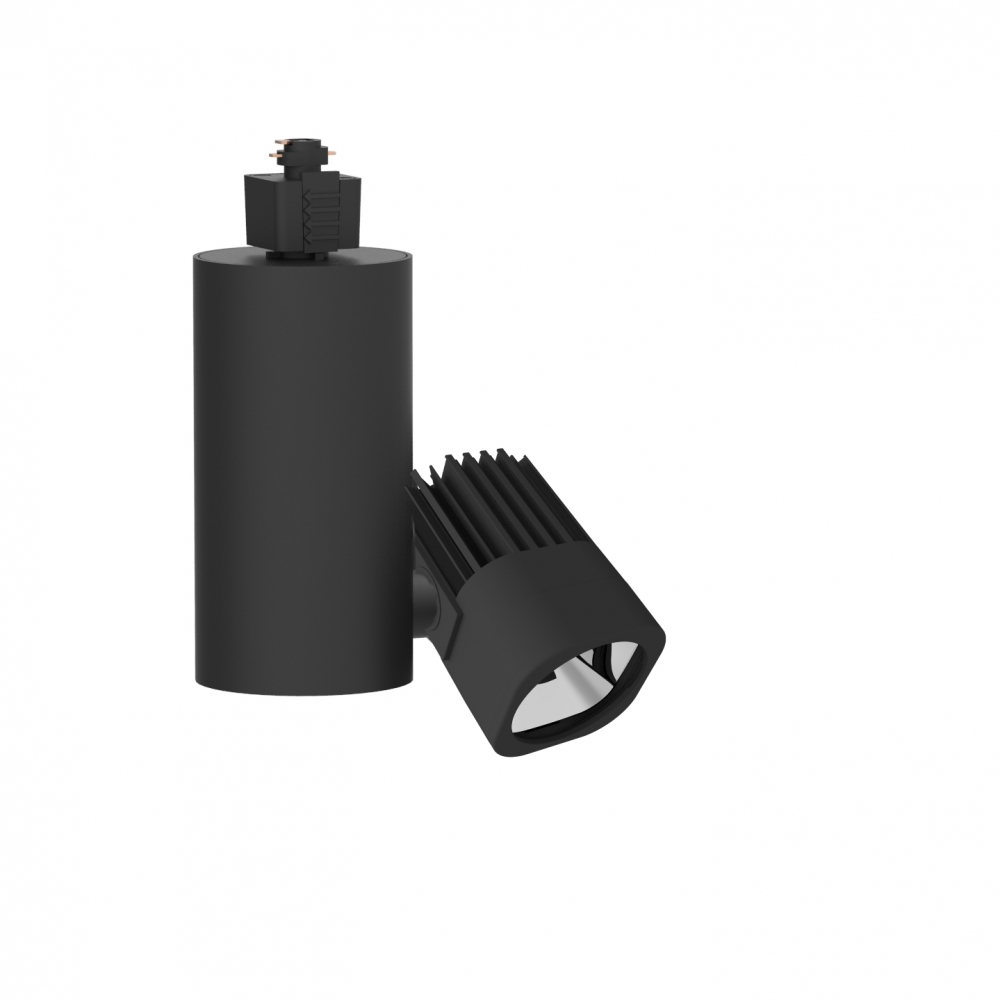

30W J/H/L Type Track System 3CCT COB LED Track Light K3023M-S Kitchen Lighting

Description
LED track light is a perfect lighting solution for demanding and changing environments like shops, showrooms, public buildings and galleries. An extremely powerful and versatile fixture with outstanding light output and consuming 30w max of power. LED track light unique segmented reflector in sheet reflector plate, provides superior reflection abilities and up to 90% and can be applied for accent lighting and/or general lighting.

LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• Multiple connectors can share a lamp body
• 3 color temperature selectable, convenient inventory and cost savings
• 50,000 hrs average rated life

Electrical System
• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
• Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Material Die cast aluminum
Input Voltage 120/277vV
Wattage 20W/25W/30W
CCT 2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF >0.98
CRI 80+/90+
Mounting Track Mount



Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty

Product File Download

# File Added by File size Downloads
1 pdf Track Light 2022 liteharbor 23 MB 231
