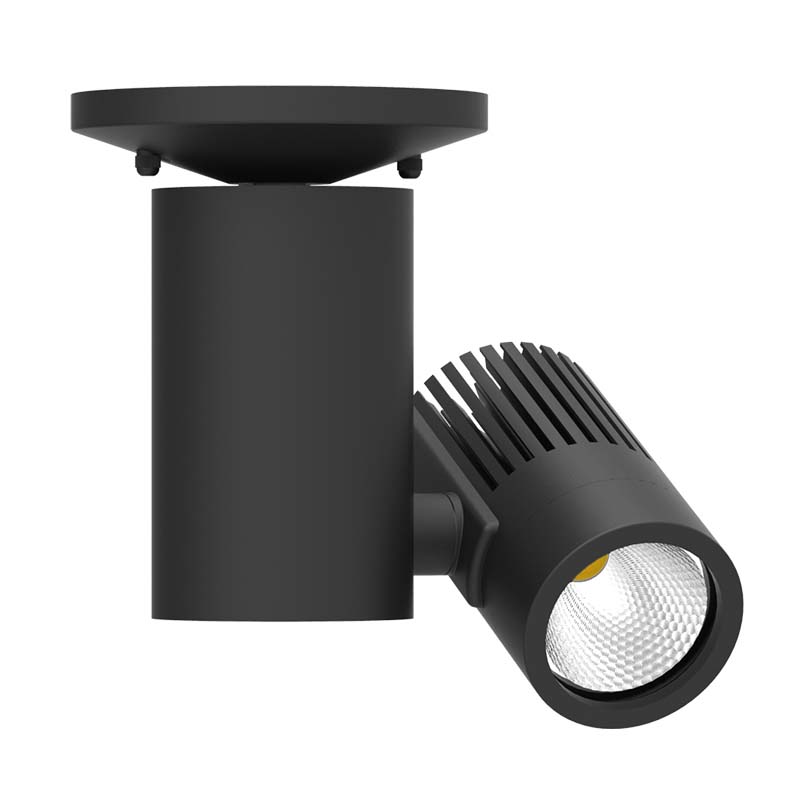

45W Flush Mounted COB 3CCT LED Track Lighting FM3024 Shop Lighting

LED COB track light WITH CANOPY

LED Light Engine

  • Color Temperature 2700K-6000K
  • CRI 80+
  • 3 Step MacAdam (3 SDMC)
  • Passive aluminum heat sink
  • 50,000 hrs average rated life
  • 3 color temperature selectable, convenient inventory and cost savings



Electrical System

  • 120V/277V 50/60Hz input
  • Over voltage, over current and short circuit protection: Auto recovery
  • MTBF > 100,000 hours

FM3024

Ceiling mounted single head

30 Watt

2550 Lumen



FM3024A

Ceiling mounted single head

32 Watt

2550 Lumen



Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood



Dimming

  • Track Dimming
  • (ELV) reverse phase control dimmers. 120V only.
  • Dimmable 100 – 10%



  • Canopy Dimming
  • ELV Dimming 120V
  • 0-10V Dimming 120V or 277V
Material Die cast aluminum
Input Voltage 120/277vV
Wattage 20W/25W/30W/35W/40W/45W
CCT 2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF >0.98
CRI 80+/90+
Mounting Canopy  Mount



Compatibility

Track luminaire is designed for use with the following track systems:

  • Single Circuit/Single Neutral 120V
  • Two Circuit/Single Neutral 120V (No Dimming)
  • Two Circuit / Two Neutral 120V
  • Two Circuit / Two Neutral 277V



Mounting

Mounts to a standard 4” square or octagon junction box



Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty

Product File Download

# File Added by File size Downloads
1 pdf FM3024 liteharbor 949 KB 291
