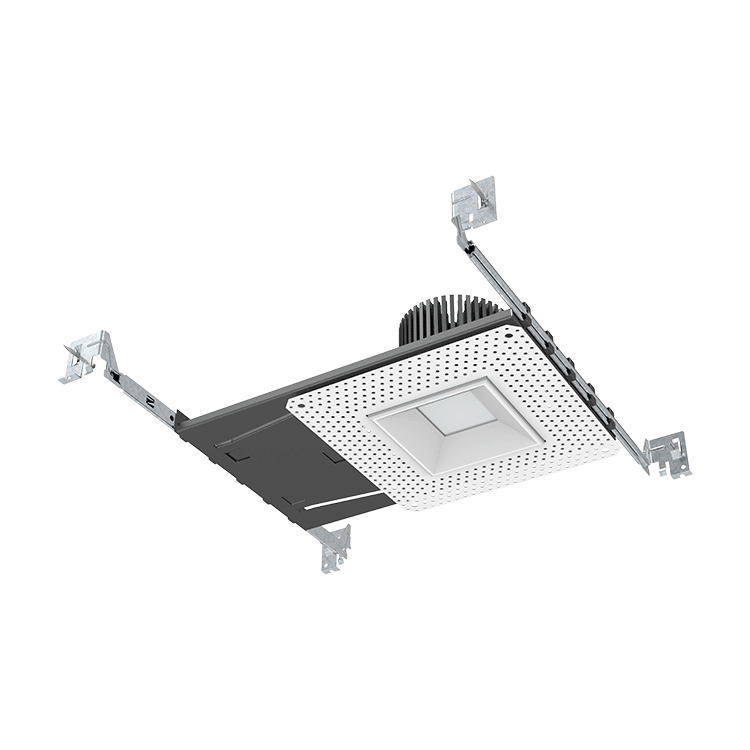

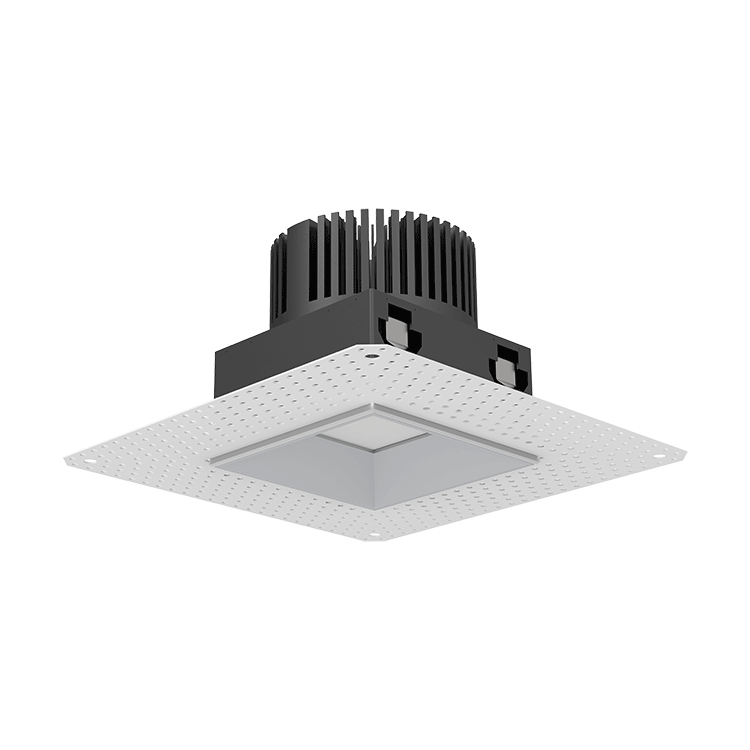

Lighting Project 4″ New Construction Square Commercial Trimmed or Trimless LED Recessed Downlight
ITEM No.： AL4-NC
Power : 15/20/30W
Voltage : 120/230/277V
Lumen : 1000/1500/2250LM
Power factor : PF>0.98
CRI : 80+CRI/90+CRI
Frequency : 50/60Hz
Dimmable : NONE/TRIAC/RD 0-10V
CCT : 2700/3000/3500K
Lifespan : 50000 H
Certification : ETL
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
The Square Commercial recessed LED downlight offers a variety of high-end features in a compact package for commercial use.

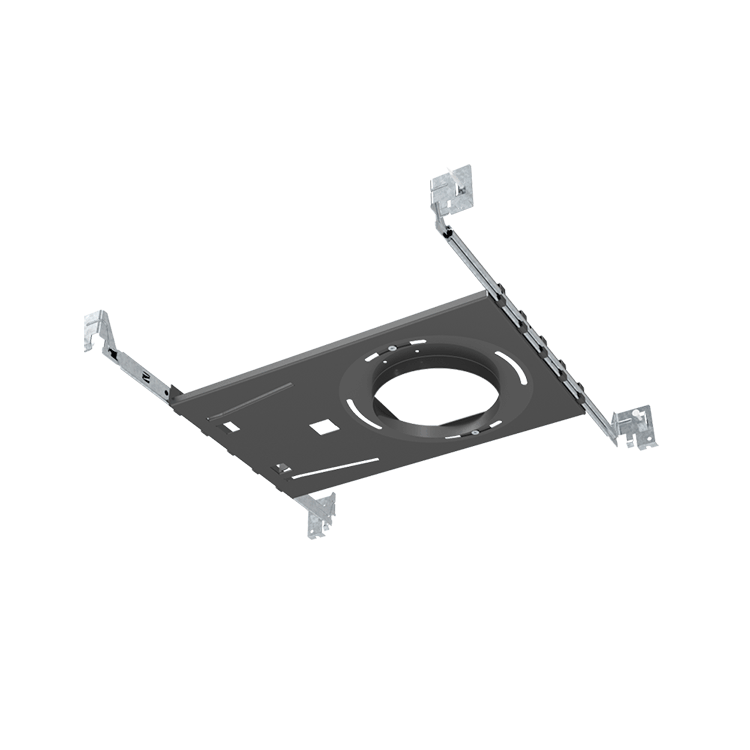

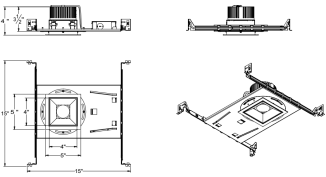

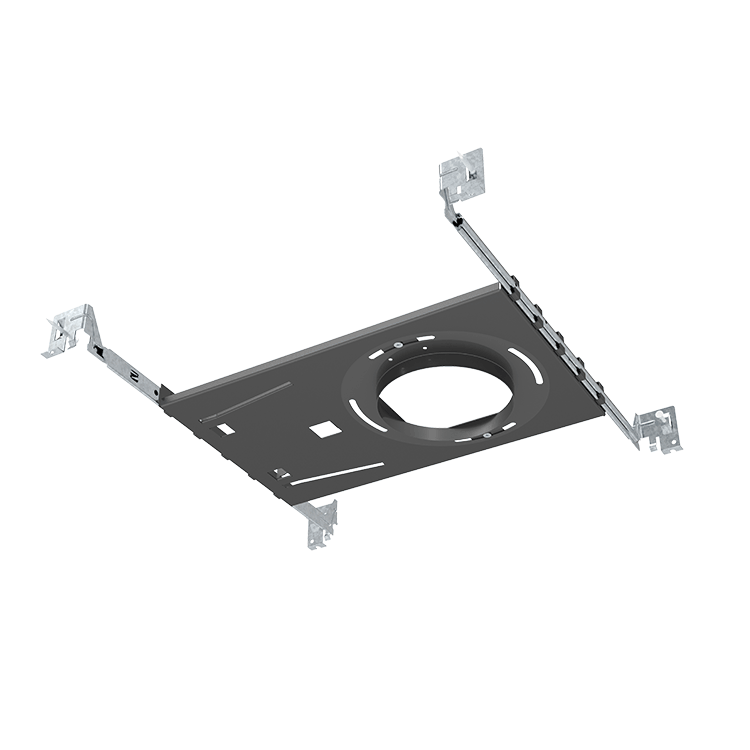

Four sides staddle install, the staddle can be adjusted from 14½ “-24”, to adapt to a variety of joist structures and keel sizes.
Lamp height can be adjusted, accommodate 1/2 “to 1 1/4” ceiling thickness.

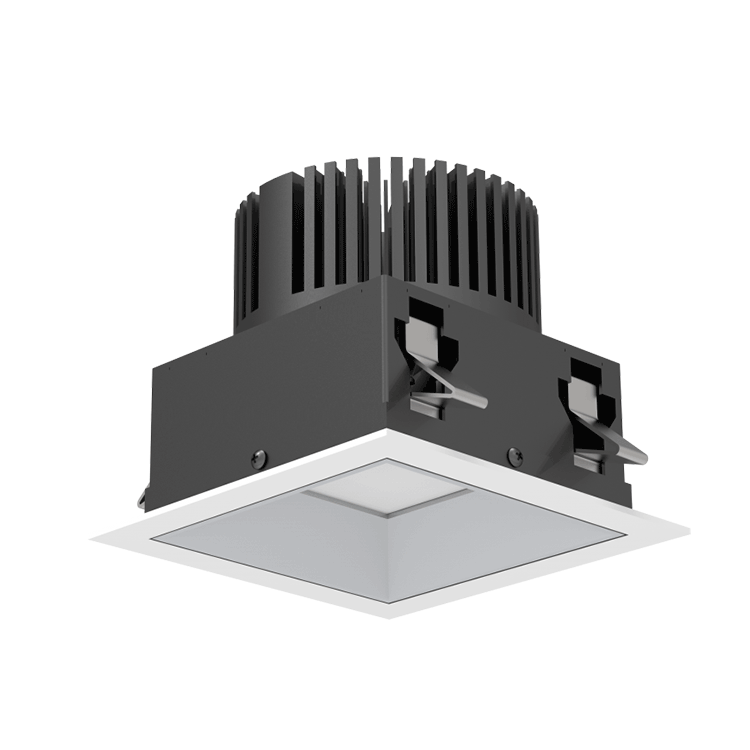

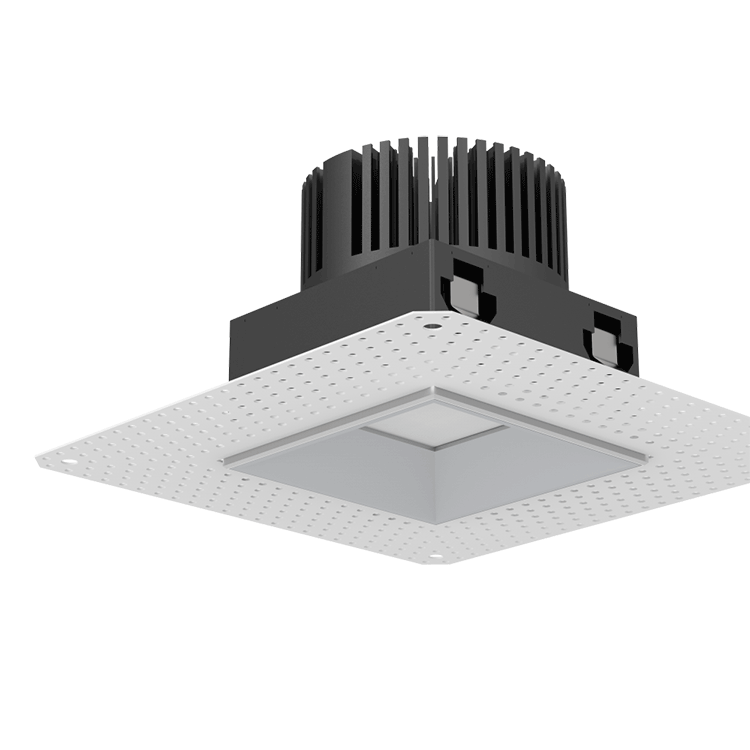

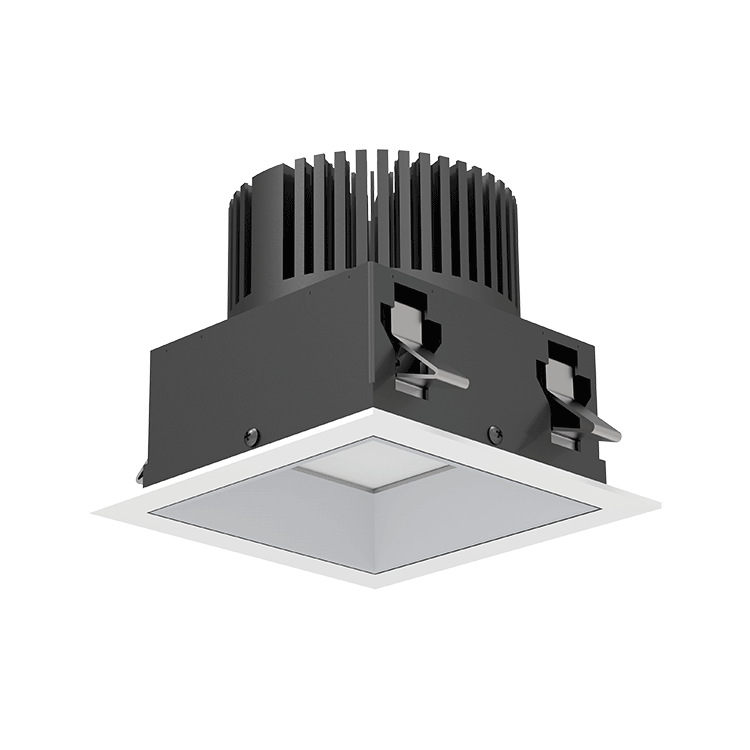

Trimmed and trimless available.
Rotated separated reflector, more convenient for parts replacement.
Isolation driver, high power factor and conversion efficiency, constant current output.
Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail.
Die-casting aluminum, spray high-reflective powder, high light uniformity.
High light transmittance, strong light diffusion performance, no shadow, no glare.
Point light source turned into spherical light emitting.
Milky white light transmission rate reach 90% above.
Excellent concealed light source, achieve the best light transmission rate without seeing the LED lamp bead.
Excellent cold forging radiator, good heat dissipation.
Independent isolation constant current drive, high power factor optional .
Constant current design, high reliability, stable performance.
Wide voltage design, 120V-277V available.
Meets the requirements of safety and electromagnetic compatibility.
