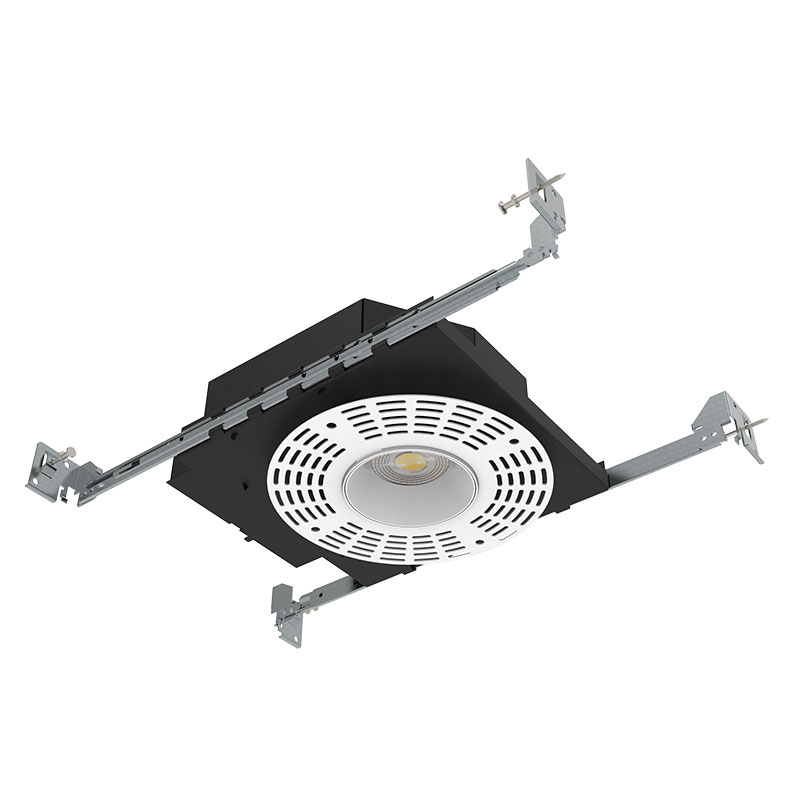

Light Project 3” Shallow New Construction fire rated commercial downlights
ITEM No.： A3-M-2-TL
Downlight Name : COB LED Recessed Downlight
Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Housing Type : NON-IC / IC Rated
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
– Beam angle: 12/24/36°
– Available in trimmed or trimless.
– Accommodates ceiling thickness 1/2″
– Delivered lumens are maintained through entire range
Listing / Warranty
– ETL listed to US and Canadian standards for damp location W/Feed through.
– 5 Year Limited Warranty.
– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
|Input Voltage||AC 120V/277V|
|CCT||2700K, 3000K, 3500K, 4000K, 5000K|
Product File Download
|#||File||Added by||File size||Downloads|
|1||A3-M-2, A3-M-2-TL||liteharbor||613 KB||48|
