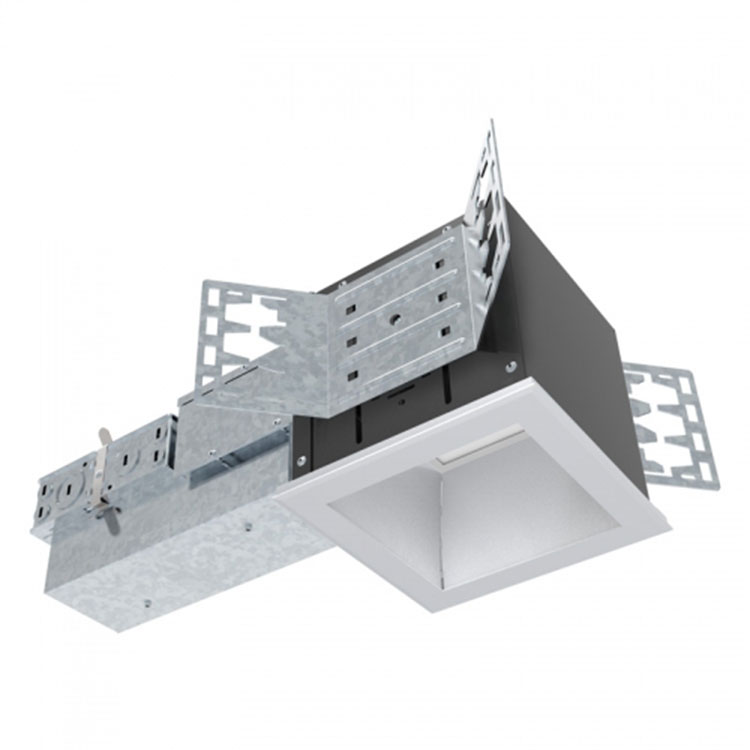

Store Lighting 8” Architectural LED Downlight
ITEM No.： AL8-VA
Series : LED Architectural downlight
Input volt : 120V-277V
Color temperature : 3000K-5000K
Wattage : 32W Max.
Warranty : 5 years
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Lighting is smooth and comfortable while using 50% less energy than the common 26W & 32W CFL downlight.
Eco-friendly no lead or mercury.
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights to save anywhere from 35% up to 75% on energy cost.
Idea suited for use in commercial, retail and other architectural applications.
Available with dedicated Emergency Battery Back-up.
High quality reflector with 1.2mm thickness available finishes and types in multiple architectural finishes and types.
Optional painted white flange is available
Reflector easily wires to dedicated frame with locking quick connect
Cree true white® technology available
Color temperature 3000K-5000K
Rated for 50000 hours at 70% lumen output
No heat, mercury or UV
Thermal protection guard protects the LED module from overheating and will dim LED module if necessary
Fully dimmable down to 10% of initial light output with a 0-10 Volt dimmer.
3000K – 5000K
Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection.
Frames require a minimum clearance of 3” ring from thermal insulation and 1/2” from adjacent building component.
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights.
Flex is designed to attach into existing junction box.
Vertically adjustable universal mounting brackets accept flat bar hangers, conduit or C channel.
The reflector assembly is held in with 4 “butter-fly” spring clips.
Reflector assy quickly attaches with lockable quick connect. Hanger bars ordered separately.
Compatible with C-channel, flat bar wood joist bar hanger and EMT
Plaster frame integrated 29 cubic inch 0.064″ thick galvanized steel
Provided with four ½” knockouts, one ¾” knockout and four Romex knockouts with true pryout slots and strain clamps. Designed for straight through conduit runs.
Electrical connections are made through a single junction box door.
Green wire provided for installation with ground wire fed through PVC pipe conduit.
External thermal device is located on the junction box wrap.
The LED driver is mounted to the J-box cover and is accessible from below the ceiling.
Rated for 50 to 60Hz at 120V/277V input
Produces less than 20% THD
Listing & Warranty
ETL listed to US and Canada standards for wet locations
5-year limited warranty
