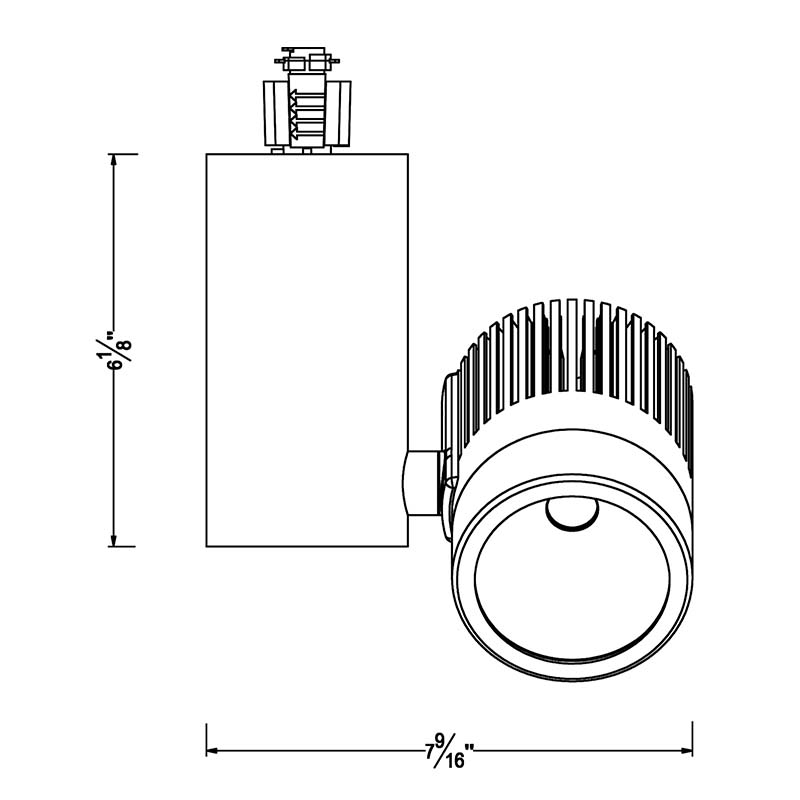

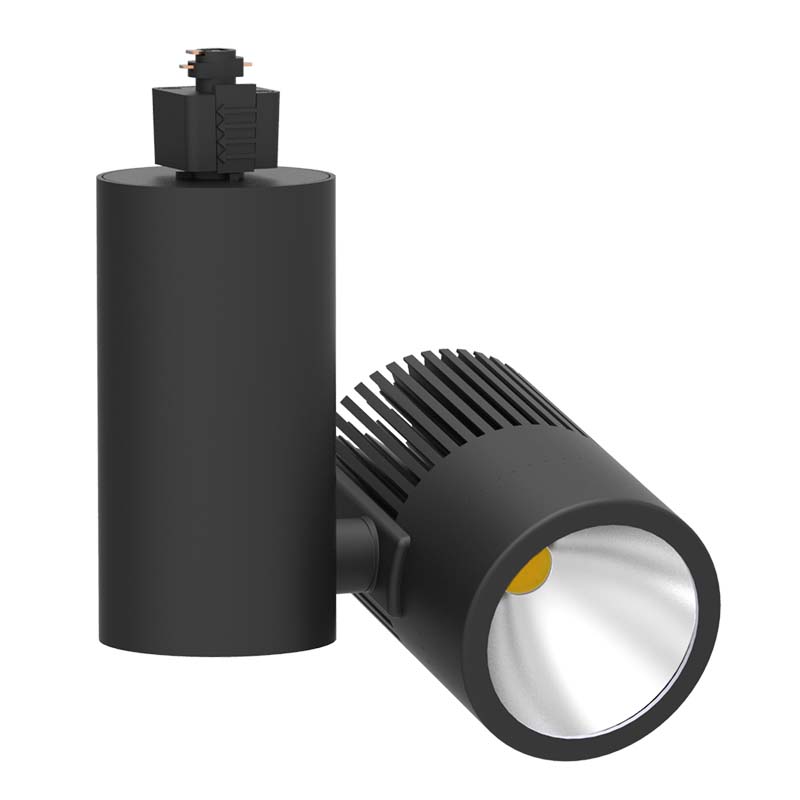

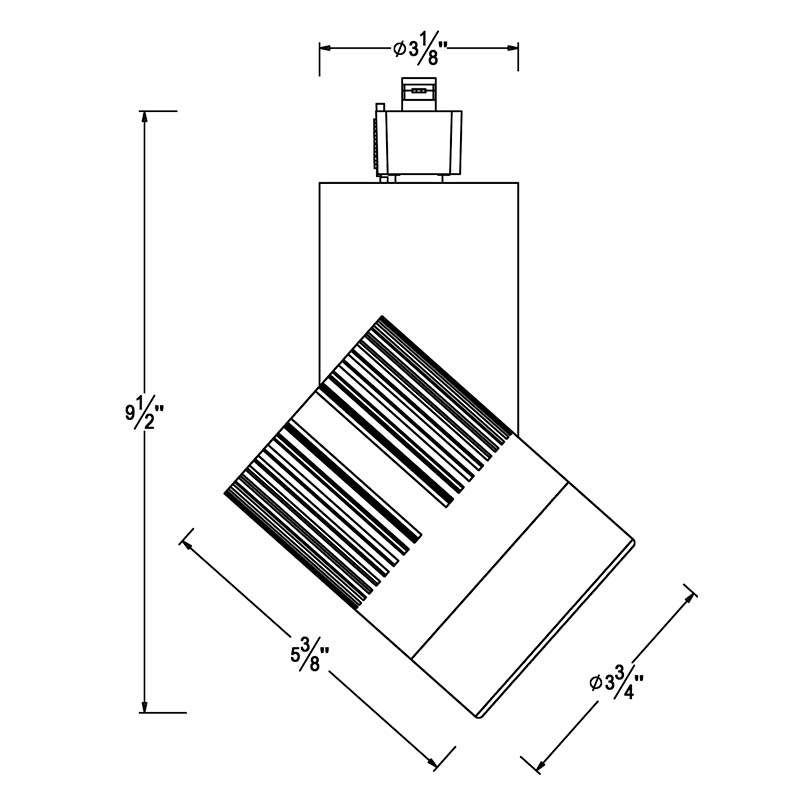

45W J/H/L Type Track System 3CCT COB LED Track K3023L Gallery Lighting

LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink

• Multiple connectors can share a lamp body

• 3 color temperature selectable, convenient inventory and cost savings

• 50,000 hrs average rated life

Electrical System
• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

Single head, 40 Watt
Finish: White/ Black/ Silver/ Satin Nickel

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%

Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Material Die cast aluminum
Input Voltage 120/277vV
Wattage 30W/45W/45W
CCT 2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF >0.98
CRI 80+/90+
Mounting Track Mount


Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty

Product File Download

# File Added by File size Downloads
1 pdf K3023L liteharbor 415 KB 284
