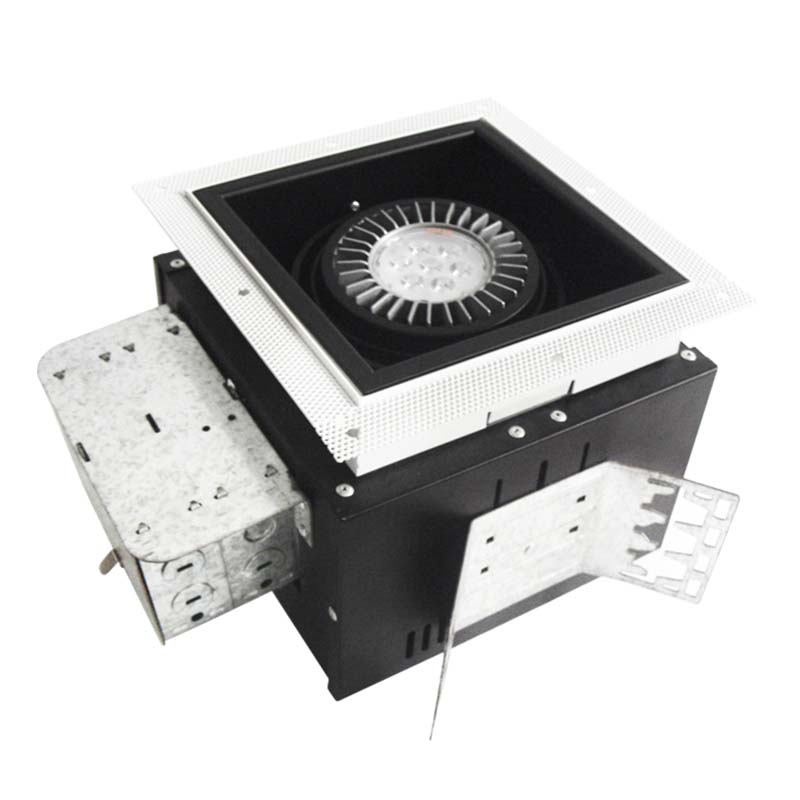

Commercial 1-Lamp New Construction Multiple Recessed Downlight
ITEM No.： G4011-A
Input Volt. : 120V/277V/120-277V
wattage : 20w Max/Lamp
FIXTURE : Trim less or trimmed
CERTIFICATE : ETL
WARRANTY : 5 Years
Easy Installation and maintenance
All parts and components accessible from below the ceiling
Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions
Actual adjustment may vary depending on the lamp beam spread
The inner trim is constructed of 22GA steel
Finish can be black, white or silver
Special finish please confirm with factory
Internal wire bundles and locked and covered with a glass sleeve
Junction box can be accessible from below the ceiling with a plate
Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness
Channel bracket allow up to 5″ vertical adjustable
Universal mounting brackets included
Compatible with C-channel, flat bar, and EMT
C-channel are recommended for T-bar ceilings
Bar hangers must be ordered separately
Extruded trim frame includes torsion springs for convenient installations or removal from the housing.
Optional mud frame available for trimless mounting
The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting
|Light Source & Socket||Input Volt.||Wattage||CCT||Life Span|
|LED MR16/ GU5.3||12V||8W Max|
|LED PAR20/ E26||120V
|LED PAR30/ E26||18W Max|
|LED AR111/ G53||33W Max|
|Metal Halide T4/ GU6.5||39W Max||30000h|
|Metal Halide T4.5/ G8.5||70W Max|
|Metal Halide T6/ G12||100W Max|
|Metal Halide CDM-Tm/ PGJ5||39W Max|
|Metal Halide MR16MH/ GX10||12V||39W Max|
