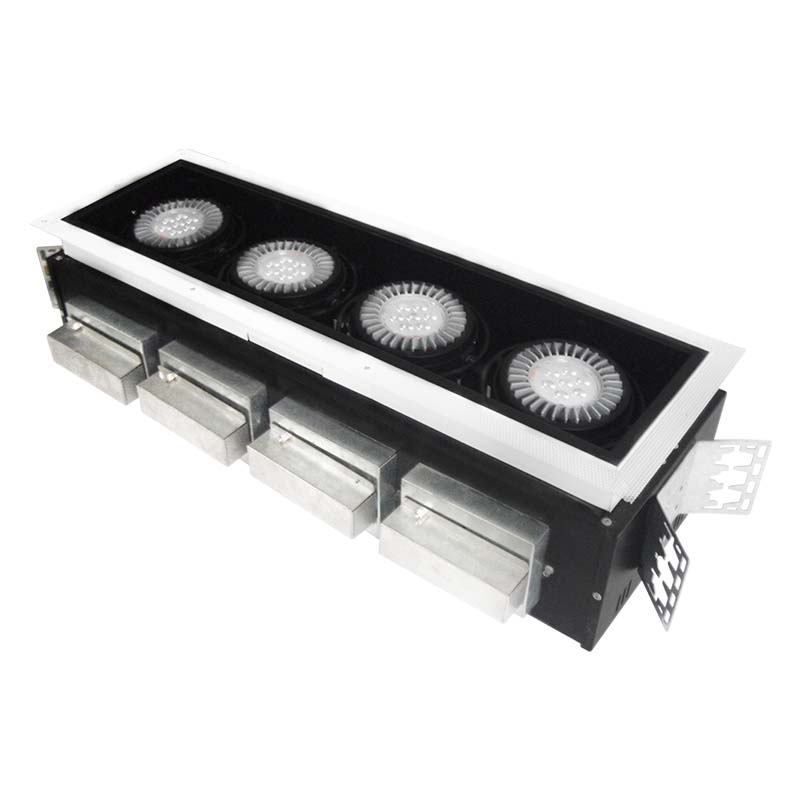

Commercial 4-Lamp New Construction Multiple Recessed Downlight


Easy Installation and maintenance

All parts and components accessible from below the ceiling

Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions

Actual adjustment may vary depending on the lamp beam spread


The inner trim is constructed of 22GA steel

Finish can be black, white or silver

Special finish please confirm with factory

Internal wire bundles and locked and covered with a glass sleeve

Junction box can be accessible from below the ceiling with a plate

Mounting Frame

Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness

Channel bracket allow up to 5″ vertical adjustable

Universal mounting brackets included

Compatible with C-channel, flat bar, and EMT

C-channel are recommended for T-bar ceilings

Bar hangers must be ordered separately

Flanged Trim

Extruded trim frame includes torsion springs for convenient installations or removal from the housing.


Optional mud frame available for trimless mounting

The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting

Technology Data
Light Source & Socket Input Volt. Wattage CCT Life Span
20W Max 2700-
LED MR16/ GU5.3 12V 8W Max
LED PAR20/ E26 120V
10W Max
LED PAR30/ E26 18W Max
LED AR111/ G53 33W Max
Metal Halide T4/ GU6.5 39W Max 30000h
Metal Halide T4.5/ G8.5 70W Max
Metal Halide T6/ G12 100W Max
Metal Halide CDM-Tm/ PGJ5 39W Max
Metal Halide MR16MH/ GX10 12V 39W Max

Product File Download

# File Added by File size Downloads
1 pdf G401X-A liteharbor 322 KB 406
2 pdf Multiple down light brochure liteharbor 3 MB 828
