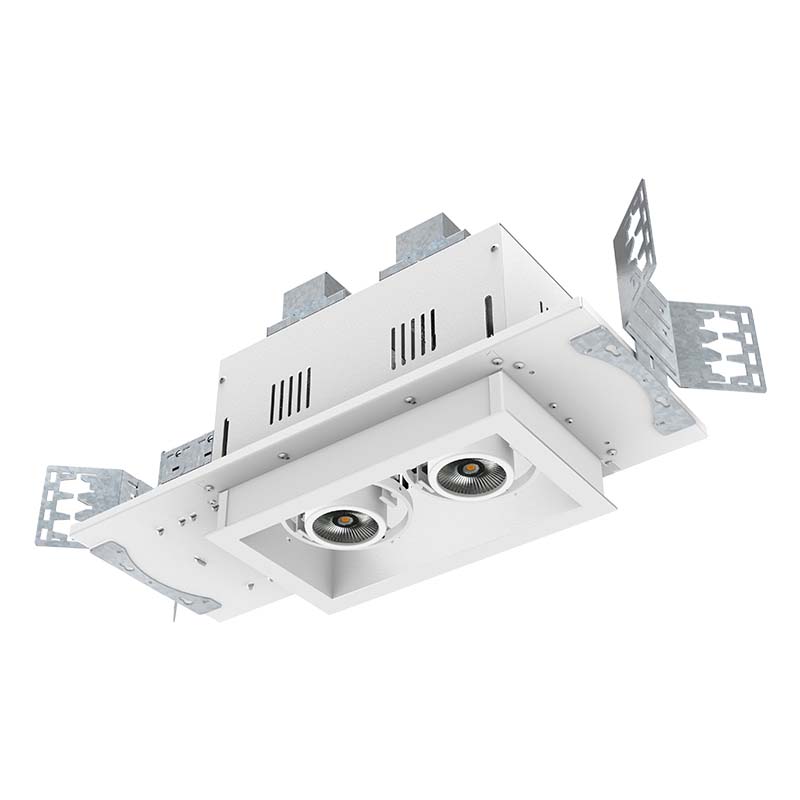

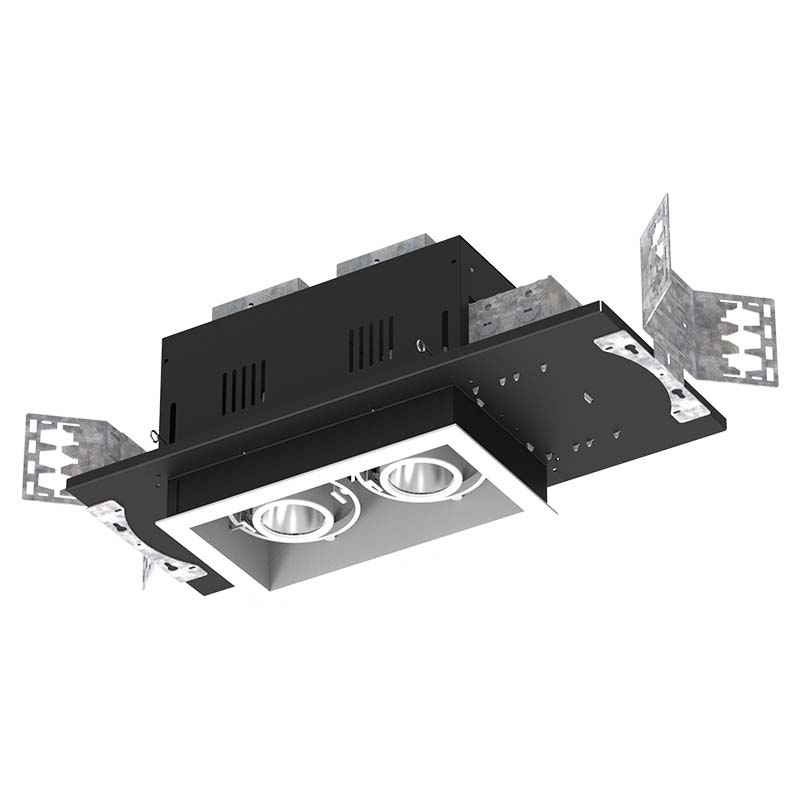

Commercial LED Recessed Light Multiple Downlight 2 lights Shopping Light


LED Recessed Downlights are designed with state-of-the-art LED and driver technology. All of the models feature high end, Architectural Spec quality with the energy efficiency and all the advantages of a LED source. The multiple downlight series are for new construction and are offered in 1 to 4 lamp versions. Easy Installation and maintenance. All parts and components accessible from below the ceiling. Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions. Actual adjustment may vary depending on the lamp beam spread.


The inner trim is constructed of 22GA steel

Finish can be black, white or silver

Special finish please confirm with factory

Internal wire bundles and locked and covered with a glass sleeve

Junction box can be accessible from below the ceiling with a plate

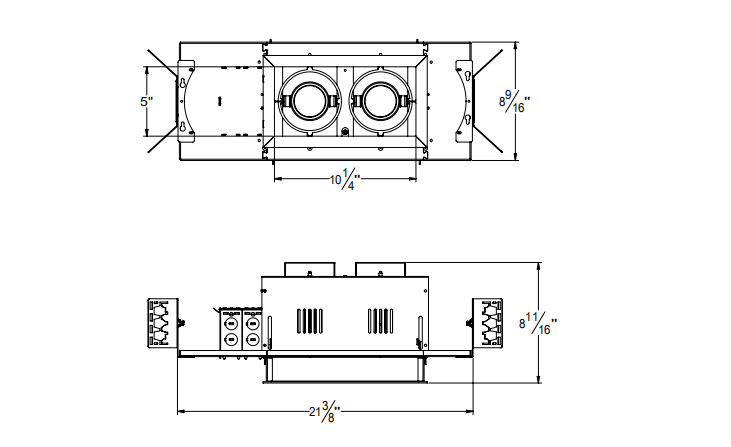

Mounting Frame

Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness

Channel bracket allow up to 5″ vertical adjustable

Universal mounting brackets included

Compatible with C-channel, flat bar, and EMT

C-channel are recommended for T-bar ceilings

Bar hangers must be ordered separately

Flanged Trim

Extruded trim frame includes torsion springs for convenient installations or removal from the housing


Optional mud frame available for trimless mounting

The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting

LED Light Engine



LED mounted to die-cast/extruded aluminum heat sink

50000 hours average rated life at 70% lumen

Electrical System

120-277V input

Class 2 power supply

Over voltage, over current and short circuit protection

Auto recovery

10% dimmable is available 120V only

10/15/17.8/20W each lamp

Light Efficiency:70-80lm/W(Consult with our factory)


Lamp Q’ty (PCS)

Wattage (W)

Lumen (LM)

Color Temperature (K)






















Product File Download

# File Added by File size Downloads
1 pdf G401X-B liteharbor 217 KB 781
