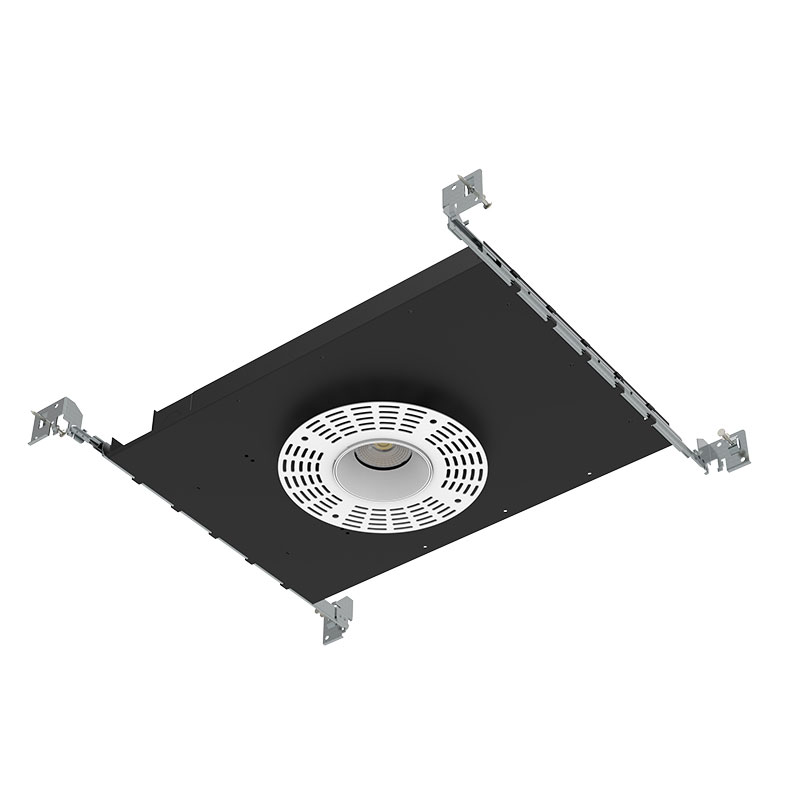

Commerical Lighting 3” Trimless Shallow Round COB commercial recessed downlights
ITEM No.： A3-M-R-3-TL
Downlight Name : COB LED Recessed Downlight
Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Aperture : Round
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
LED downlight with architectural appearance housed in an ultra-shallow 3″ above the ceiling housing. Give ceilings their glory with the shallowest and tiniest recessed LED housing. LED module and optics are modular for ease of replacement. Wood ceiling option allows for a smooth, flangeless appearance using any flangeless trim.
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
– Beam angle: 12/24/36°
– Available in trimmed or trimless.
– Accommodates ceiling thickness 3″
– Delivered lumens are maintained through entire range
LED Light Engine
Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is available)
12W 15W 20W
1000 1300 1600 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output
12° Spot, 24° Narrow Flood and 36° Flood
Widely used for commercial and residential applications.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
Product File Download
|#||File||Added by||File size||Downloads|
|1||A3-M-3, A3-M-3-TL||liteharbor||487 KB||228|
