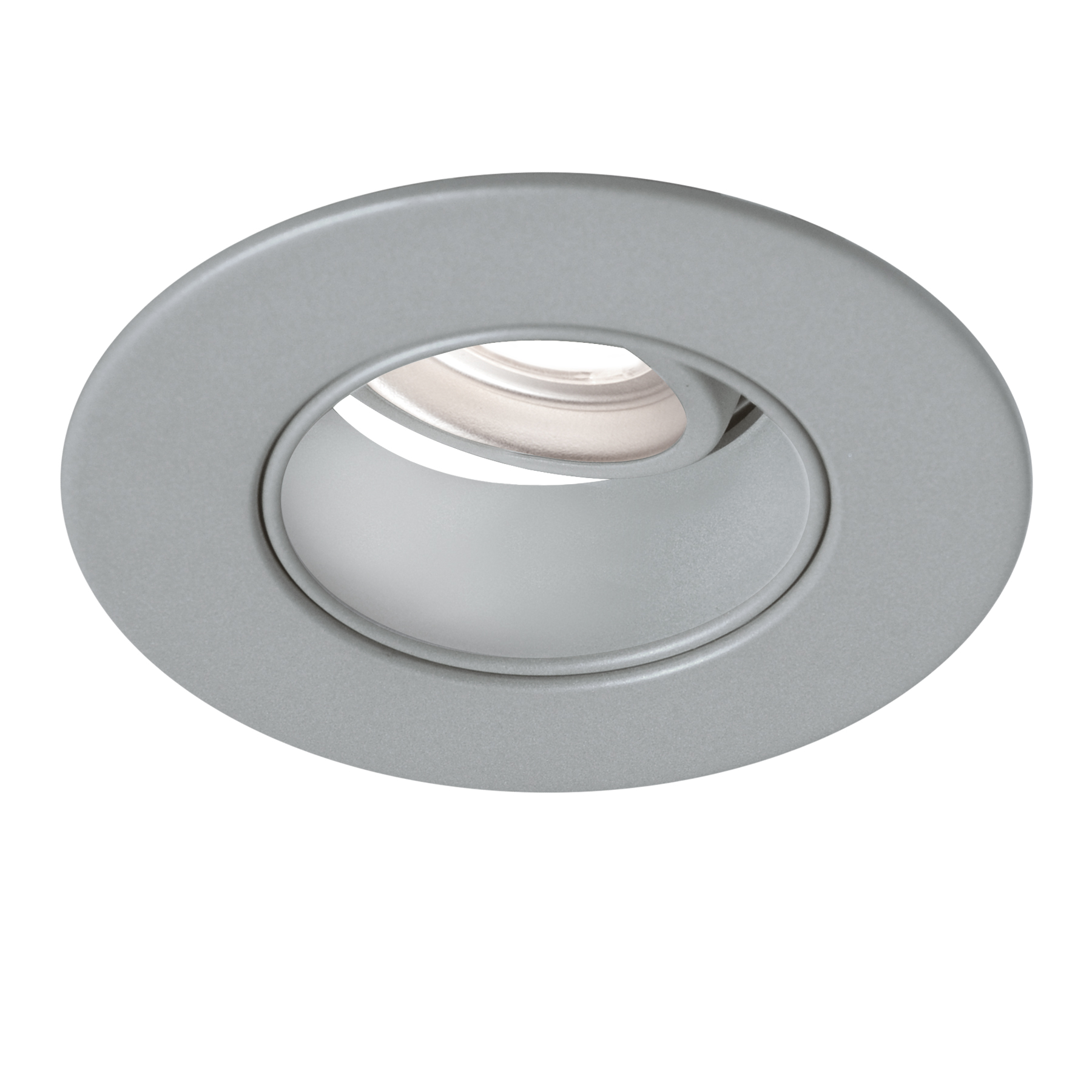

Contrast Lighting UR3D 3-3/4″ 10W Round Downlight Adjustable Trim

Description
Round adjustable dedicated LED regressed 3.5in trim of the Urbai recessed LED series made by Liteharbor available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). The Urbai collection housings are compatible with 120V and 277V input and two dimming options : ELV and 0-10V.This trim model is offered with a choice of six lenses or without a lens. The standard UR3D model, without a lens, offers a good lighting performance with 815 delivered lumens @ 3,000K in performance 1, for 82 lm/W. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with the 2,700K and the 3,000K, along with three beam angles : the 16° spot beam, the 32° narrow flood beam, and the 48° flood beam. The warm dimming option, that dims the light from 3,050K to 1,800K, is available in performance 2 (15W). Eight trim finishes and three painted reflector finishes are offered to maximize the integration of the product.



Specifications

Volts: 120V-277V
Watts: 10W/15W
Lumens: 764LM/ 1048LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 16° /32°/48°
Luminous Size: φ 2-5/8 in
Height: 4-1/8 in
Green: Energy Star, Yes

Product File Download

# File Added by File size Downloads
1 pdf DG-URBAI liteharbor 20 MB 202
2 pdf DG-FT_UR3D_EN liteharbor 2 MB 113
