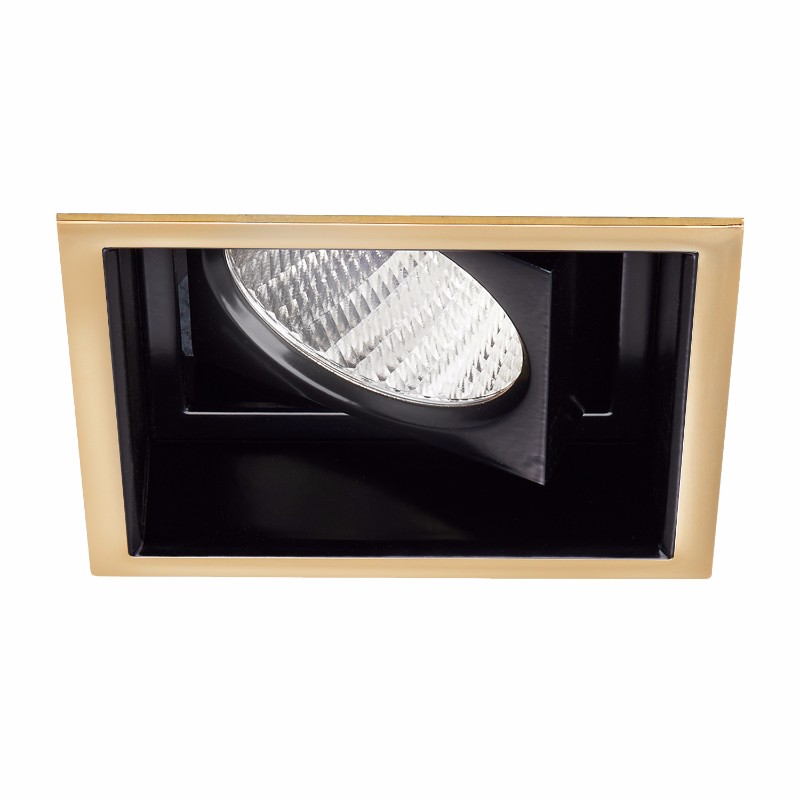

Contrast Lighting A3SAR 3.5″ 14W Square Adjustable Regressed LED Downlight


Ardito dedicated LED ultra-thin square adjustable regressed 3-1/2” trim available in performance 1 (14W) and performance 2 (23) with the remodeler, the new construction and the IC Air Tight housings. Four color temperatures are available, each with a 90+ CRI, and the warm dimming (from 3,050K to 1,800K) and color tuning options. This versatile model produces a 15° spot beam, a 32° narrow flood beam and a 40° flood beam, thanks to its top of the line optical reflector, and can tilt up to 30°. Elegant and dynamic, A3SAR delivers between 1,300 and 1,900 lumens, for a performance of 96 lm/W @ 3,000K in performance 1. This product is offered in sept trim finishes and four reflector finishes to maximize its integration.

Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.

Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.

Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations


Ardito Series

Three aperture sizes: 2.5″, 3.5″ and 4″

Trim and Trimless (-TR) available.


Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.



Volts: 120V-277V
Watts: 14W
Lumens: 470 – 670LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 15°/30°/42°
Luminous Size: 3-1/2 in*3-1/2 in
Height: 6 in
Green: Energy Star, Yes

Product File Download

# File Added by File size Downloads
1 pdf DG-Ardito_EN liteharbor 9 MB 314
2 pdf DG_A3SAR-TR_EN liteharbor 8 MB 149
3 pdf DG_A3SAR_EN liteharbor 8 MB 132
