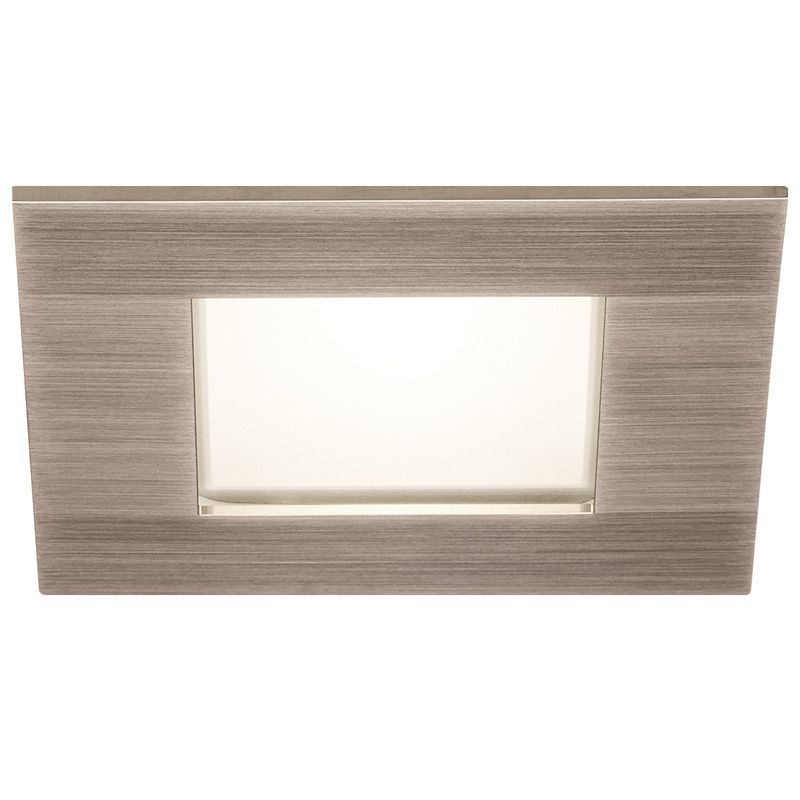

Contrast Lighting UR4H 4″ 15W Square Shower Trim With Square Opening
Series：UR4H
ITEM No.：DR4H
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square 4in dedicated LED shower trim of the Urbaï series available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This model is offered with a choice of three lenses. The clear lens is suggested as the standard lens for the UR4C model – a clear lens is available for a greater lumen output. With its standard frosted lens, the UR4H model delivers 519 lumens @ 3,000K – 52 lm/W – in performance 1. Four color temperatures are offered, with an 80+ CRI (2,700K and 3,000K only) or a 90+ CRI; only a flood beam of 48° is offered with this model. The warm dimming option is available in performance 2 (15W) and two dimming options are possible: ELV and 0-10V. Six trim finishes and three reflector finishes are suggested to maximize the integration of this model.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 460LM/ 972LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 48° |
| Luminous Size: | 2-5/8 in * 2-5/8 in |
| Height: | 4-1/2 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 216 |
| 2 |
DG-FT_UR4H_EN
|
liteharbor | 8 MB | 118 |
