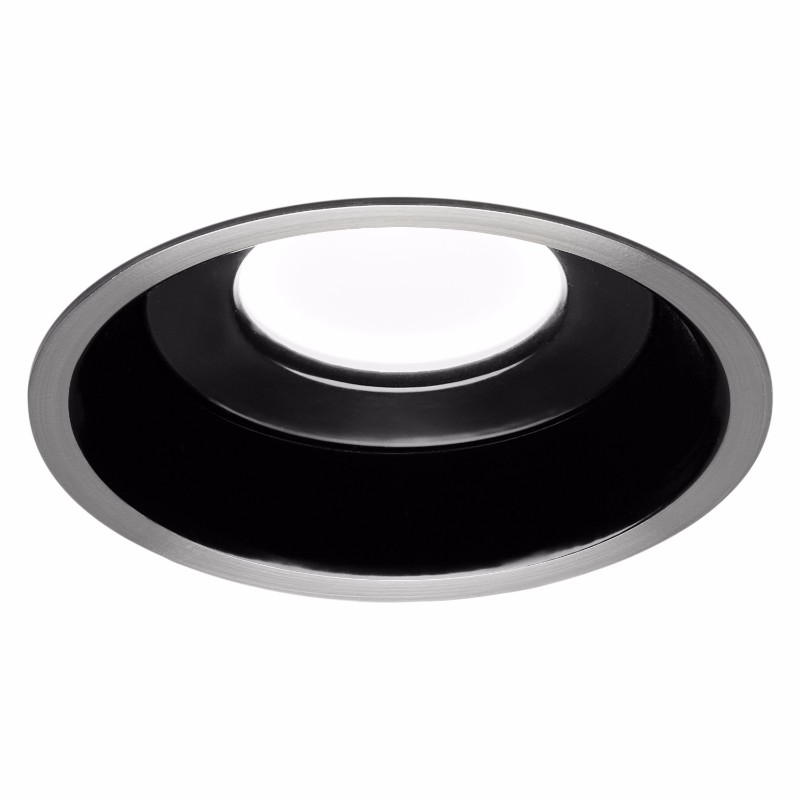

Contrast Lighting A4RSF 4″ 14W Round Regressed Shower LED Downlight
Series:A4RSF
ITEM No.:DL4RSF
Watt:14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Round
Description
Ardito dedicated LED ultra-thin square regressed 4” shower trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, the new construction and the IC Air Tight housings. The high-quality A4RSF trim is offered with a standard frosted lens and delivers between 1,050 and 1,550 lumens. Available in seven trim finishes, five reflector finishes and 4 color temperatures, this shower trim, discrete and elegant, fits into any decor. With its top of the line components, this product offers two dimming options: ELV and 0-10V.
Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″
Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
Volts: | 120V-277V |
Watts: | 14W |
Lumens: | 470 – 670LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 44° |
Luminous Size: | ø 4 in |
Height: | 6-1/8 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-Ardito_EN | liteharbor | 9 MB | 357 |
2 | DG_A4RSF-TR_EN | liteharbor | 6 MB | 167 |
3 | DG_A4RSF_EN | liteharbor | 6 MB | 170 |
