Liteharbor LED Pendant Light for Residentail Light

DESCRIPTION

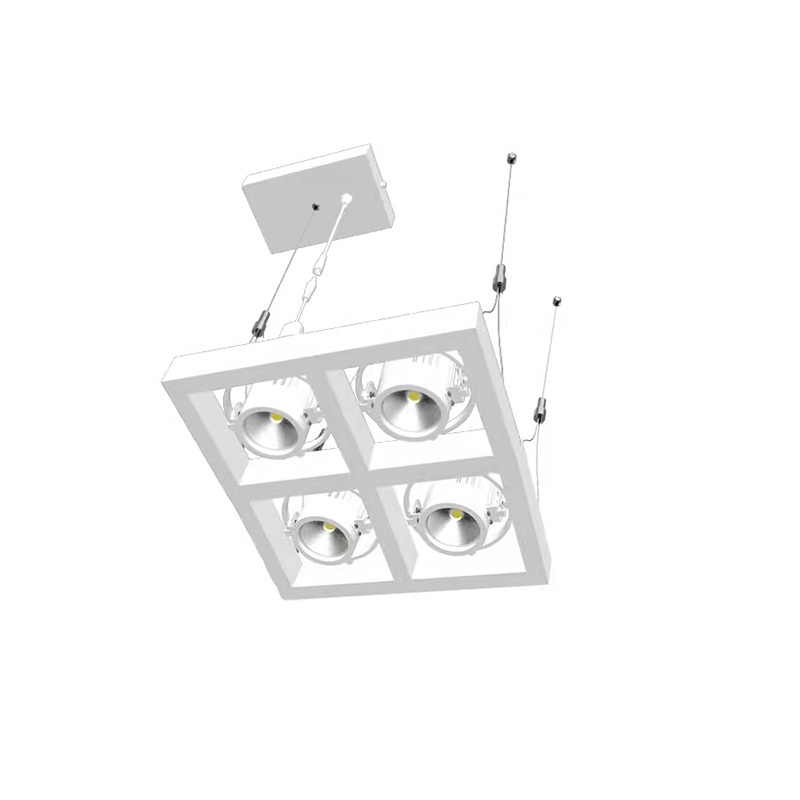

LED Multiple Pendant Spots for remodeling and new construction applications for residential and commercial environments.The Multiple Spots are marketed as complete units. Single to six head units available,four and six head unit is available in two and three configurations: rectilinear or two-by-two square and three-by-three rectangle . each spot is individually adjustable and provides a 30 degree visual cutoff for glare control and 3CCT Switch.

CONSTRUCTION

High efficiency cold forged aluminum heat sink.

The frame are constructed of 22mm gauge steel square pole.

MOUNTING

Simple pendant installation with stainless steel aircraft cable.

The standard aircraft cable is 40” or custom length.

ELECTRICAL

Driver: Universal (120V – 277V) or 120V input only

Light Source: High output LED (The whole light)

Dimming: 0-10V or ELV (see list of housings below)

OPTICS

12˚ Spot, 24° Narrow Flood, and 36˚ Flood

Up to 30° Vertical Adjustment

Can change the lens color for different applications.

LED LIGHT ENGINE

2700K, 3000K, 4000K, 5000K and 6500K, 80CRI/90CRI Option

Typle A – 3CCT, provides 3000K-4000K-5000K option

Typle B – 3CCT, provides 2700K-3000K-3500K option

LED mounted to high efficiency cold forged aluminum heat sink.

Rated life of 50,000 hours.

LISTING / WARRANTY

cETLus listed for damp location and feed through wiring.

5 Year Limited Warranty.

PERFORMANCE FOCUS

    Series Energy (W) Light                (lm) Efficacy (lm/W)
G4011-B-P 1*25W 2000 80
G4012-B-P 2*25W 4000 80
G4013-B-P 3*25W 6000 80
G4014-B-P 4*25W 8000 80
G4014-B-P-S 4*25W 8000 80
G4015-B-P 5*25W 10000 80
G4016-B-P 6*25W 12000 80
G4016-B-P-R 6*25W 12000 80

Product File Download

# File Added by File size Downloads
1 pdf G401X-B-P liteharbor 2 MB 337
