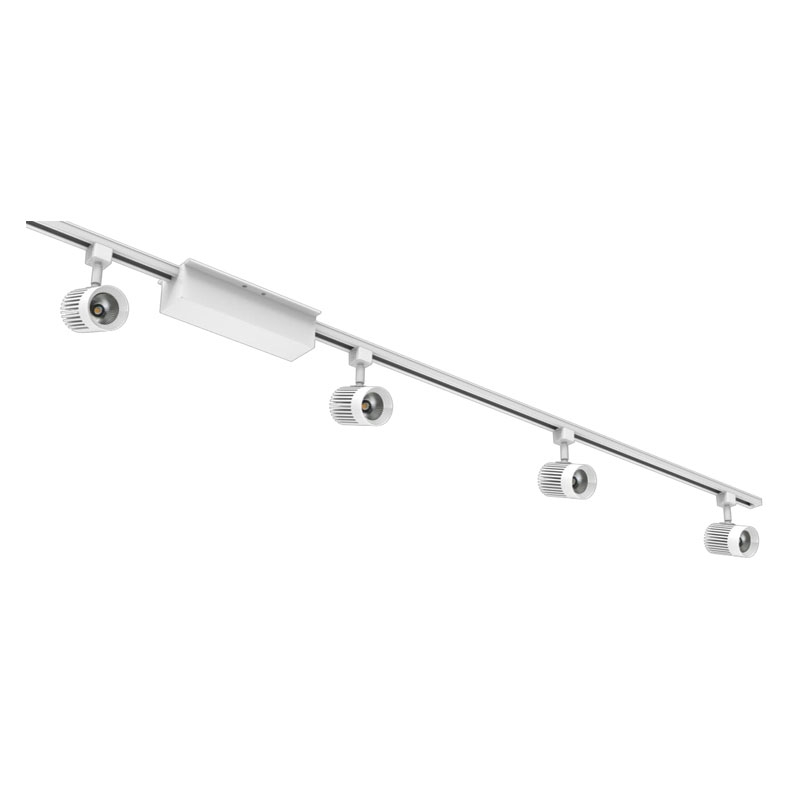

Liteharbor Line-voltage Centralized Power Supply LED Track Light Clothing Store Spotlight

Liteharbor Line-voltage Centralized Power Supply LED Track Light Clothing Store Spotlight

ITEM No.: K3023-4C
Series : LED Track Light
Lamp : 15W/lamp
Input Voltage : AC120V 50/60Hz
CCT : 2700/3000/4000/5000/6000K
Working Lifetime : 50000Hrs
Finish : Black/ White/ Silver or customized

Features

– Centrally powered driver 120V input to 42V low pressure output to track bar, then through a buck pcb at the light source
becomes the output 36V power lamp beads. Low-voltage centralized power supply improves safety and reduces single lamp
spare parts.
– The structure of the track lights is compact and the appearance is simple and generous.
– 15W per lamp, up to 9 lamp heads can be installed (8 foot track bar, others can be customized as required).
– The lighting has a wide range of adjustments, the horizontal adjustability is as high as 358º, and the vertical tunability is up
to 90 degrees. It provides good light output, high efficiency and energy saving, and can be suitable for various lighting places.
– Long life, low electromagnetic interference, low energy consumption, high performance and provides short circuit and over current protection.
– Dimming: Non-Dimming/TRIAC Dimming, compatible with a variety of silicon controlled dimming, dimming depth 5% without flicker.

Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.

Specifications

Radiator: Using cold forging radiator, fast heat dissipation, he patented structure of the heat dissipation module, integrated
balanced conduction convection, radiation heat, to ensure long product life.
Lens: Professional optical grade PMMA lens, a variety of beam angles (narrow 10°, medium 20°, wide 30°) are available, and other beam angles are available.
Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.

Parameter List

Watt: 15W/lamp
Voltage: AC 120V
Frequency: 50/60 Hz
PF: >0.9
Dimming: Non-Dimming/TRIAC Dimming
CRI: 80+/90+
CCT: 2700/3000/4000/5000/6000K

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf K3023M-1805 liteharbor 145 KB 91

Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.

Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
