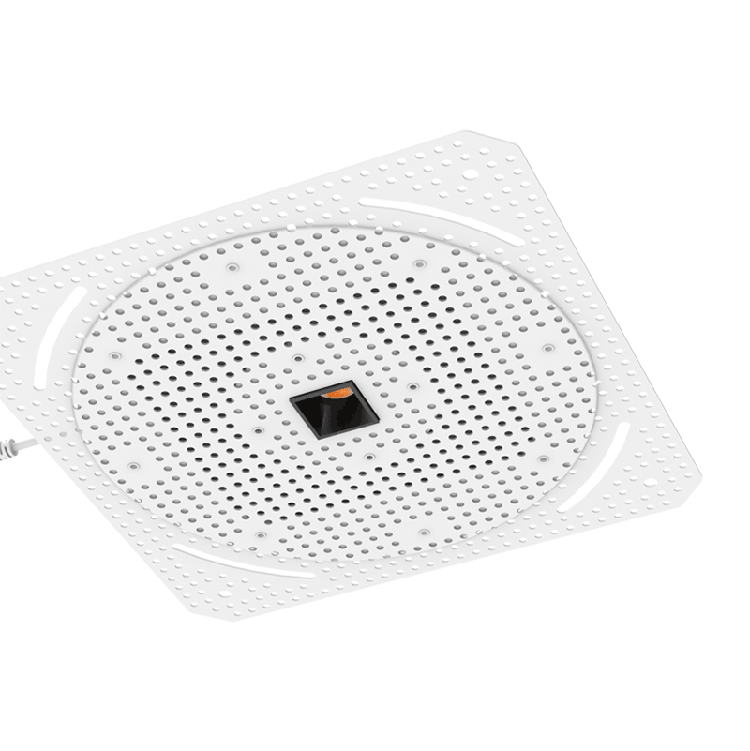

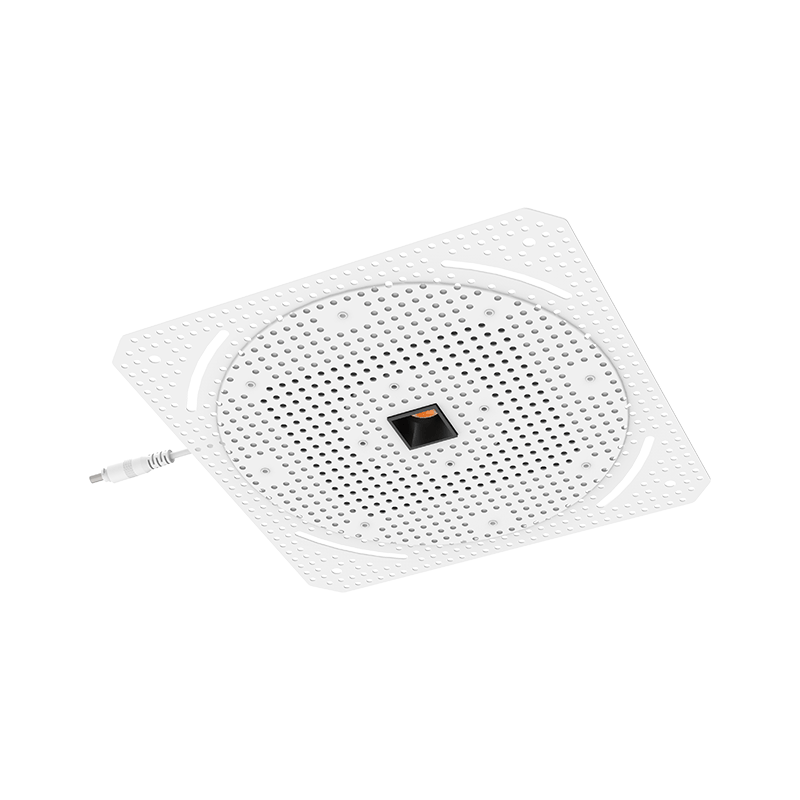

1 Inch Super Thin Trimless 16W Square LED Mini Spotlight Villa Lighting

1 Inch Super Thin Trimless 16W Square LED Mini Spotlight Villa Lighting

ITEM No.: X-Light-B
Shape : Round/Square
Input Voltage : 120-277V AC
Lamp Voltage : 42V/24V
Lumen : 1400lm/lamp
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K
Beam Angle : 30 Degree
Lifespan : 100000 HoursLED Mini Spotlight


X-Light I series, it provides a quick and convenient installation method, provides the solution of the edge of
architecture lighting, and makes a big breakthrough in the use and design. 1 inch (∅25mm) of the light-emitting surface the size to achieve the ultimate.

– X-light-B with square and circular light emission effect.
– Use big brand COB light source with high luminous efficiency (140lm/w) and long service life (100000 hours).
– Professional light distribution devices, no glare, perfect control light, spot even transition.

Lamp Body
– Ultra thin, the height of the whole lamp is only 23mm .
– Ultra small light emitting surface, only 1 inch (∅25mm).
– All-in-one die casting lamp body with unique appearance.
– Double-sided heat dissipation, can be made into IC type directly.
– The anti-pull device is hidden inside the lamp body.

Power Supply
– Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage and constant current mode.
– The power has UL listed, can be applied to a variety of applications.
– Integrated power supply, easy to replace the power supply.
– The input voltage of each lamp is 42V/24V, the load termin can be used independently.
– Each luminaire is connected in parallel, one power supply can simultaneously control the use of  five lamps.

Mounting And Maintenance
– Remodel and new construction optional.
– Wide range of applications, it can be installed in different thickness of ceiling, is the real universal type downlight.
– Cut-out dimensions 142*142mm .
– The subsequent decoration is also convenient and quick.
– There is no welding between the light source and the power supply, can replace the LED lamp beads according to the  demand.

Wattage: 16W/lamp
Input Voltage: 42V/24V
CCT: 3000K/4000K/5000K/6500K
CRI: 80+/90+
Luminous flux: 1400lm/lamp
Light source: COB
Dimming: TRIAC Dimmers 10%-100% (120V only)
Life span: 100000Hours
Dimmensions: 235*235*29mm

Power Supply
Wattage: 120W Max .
Input Voltage: 120-277V AC
Frequency: 50/60 Hz
Output Voltage: 42V/24V
Electric current: 3.4A Max .
Power Factor: >0.9
Dimming: TRIAC Dimmers 10%-100% (120V only)


Apply to residential, offices, hotels, shopping mall stores etc.

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
