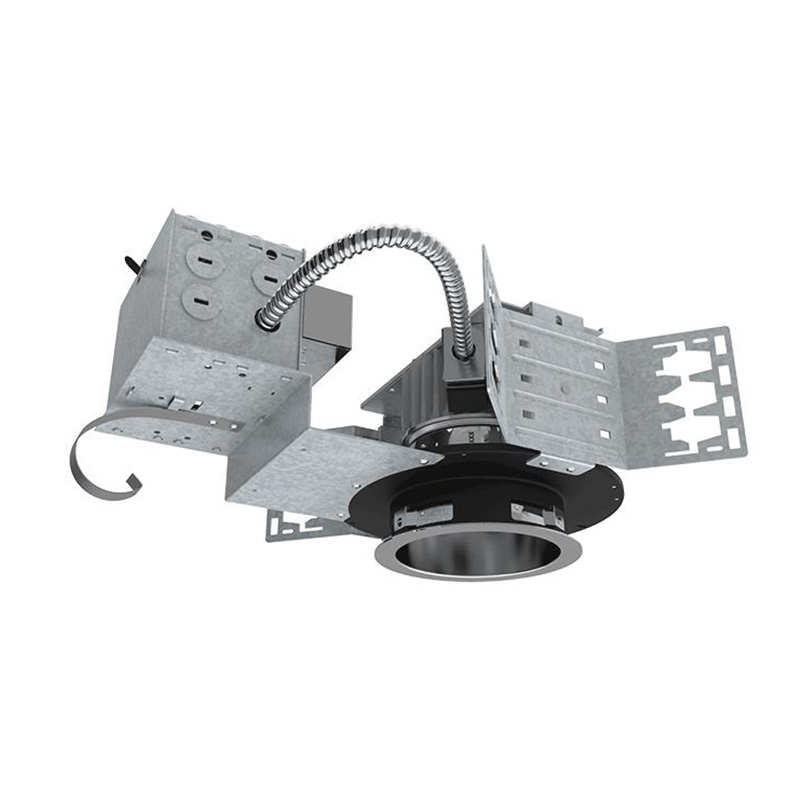

Shop Lighting 4” Recessed led ceiling lights Architectural LED Downlight
ITEM No.: AL4-VA1
Series : LED retrofit
Input volt : 120V-277V
Color temperature : 3000K-5000K
Wattage : 20W Max.
Warranty : 5 years
Description
Lighting is smooth and comfortable while using 50% less energy than the common 26W CFL downlight.
Eco-friendly no lead or mercury
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights to save anywhere from 35% up to 75% on energy cost.
Idea suited for use in commercial, retail and other architectural applications
Available with dedicated Emergency Battery Back-up.
FEATURES
- Robust, durable and lightweight.
- PoE scheme or LED quick connector provided.
- Power & CCT Tunable, convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids.
- 5 classic color temperatures tunable (2700K, 3000K, 3500K, 4000K, 5000K),RGB+Tunable White(2700K- 6000K) and Tunable White(1800K-6000K).
- Beam angle: 120゜
Reflector
High quality reflector with 1.2mm thickness
Optional painted white flange is available
Reflector Assembly
Reflector easily wires to dedicated frame with locking quick connect
LED Module
Cree true white® technology available
CRI>80%
Color temperature 3000K-5000K
Rated for 50000 hours at 70% lumen output
No heat, mercury or UV
Electrical System
Thermal protection guard protects the LED module from overheating and will dim LED module if necessary
PF>9.50/60Hz
Fully dimmable down to 10% of initial light output with a 0-10 Volt dimmer
Wattage
20W Max.
Color Temperature
3000K – 5000K
Lumen
1250-1500LM

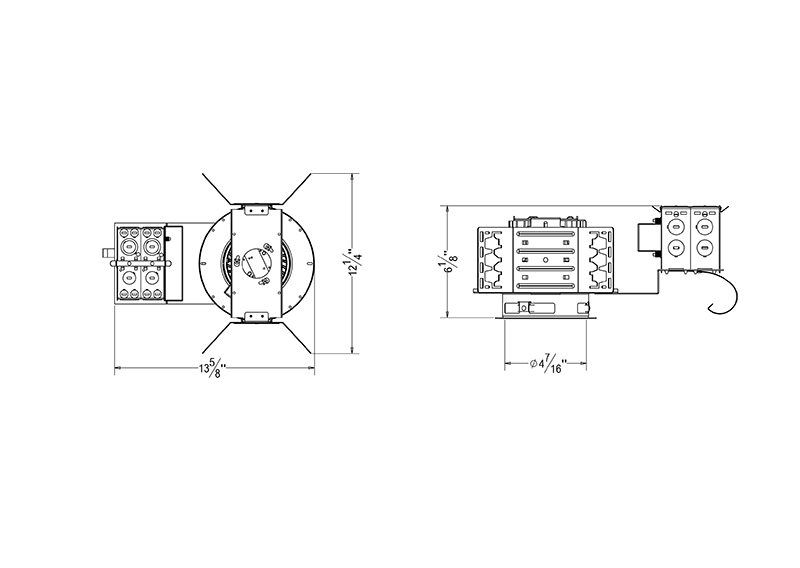

Frame
Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection.
Clearance
Frames require a minimum clearance of 3” ring from thermal insulation and 1/2” from adjacent building component.
Mounting
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights.
Flex is designed to attach into existing junction box.
Vertically adjustable universal mounting brackets accept flat bar hangers, conduit or C channel.
The reflector assembly is held in with 4 “butter-fly” spring clips.
Reflector assy quickly attaches with lockable quick connect. Hanger bars ordered separately.
Compatible with C-channel, flat bar wood joist bar hanger and EMT
Junction Box
Plaster frame integrated 29 cubic inch 0.064″ thick galvanized steel
Provided with four ½” knockouts, one ¾” knockout and four Romex knockouts with true pryout slots and strain clamps. Designed for straight through conduit runs.
Electrical connections are made through a single junction box door.
Green wire provided for installation with ground wire fed through PVC pipe conduit.
Thermal Protector
External thermal device is located on the junction box wrap.
Driver
The LED driver is mounted to the J-box cover and is accessible from below the ceiling.
Rated for 50 to 60Hz at 120V/277V input
Produces less than 20% THD
Listing & Warranty
ETL listed to US and Canada standards for wet locations
5-year limited warranty
