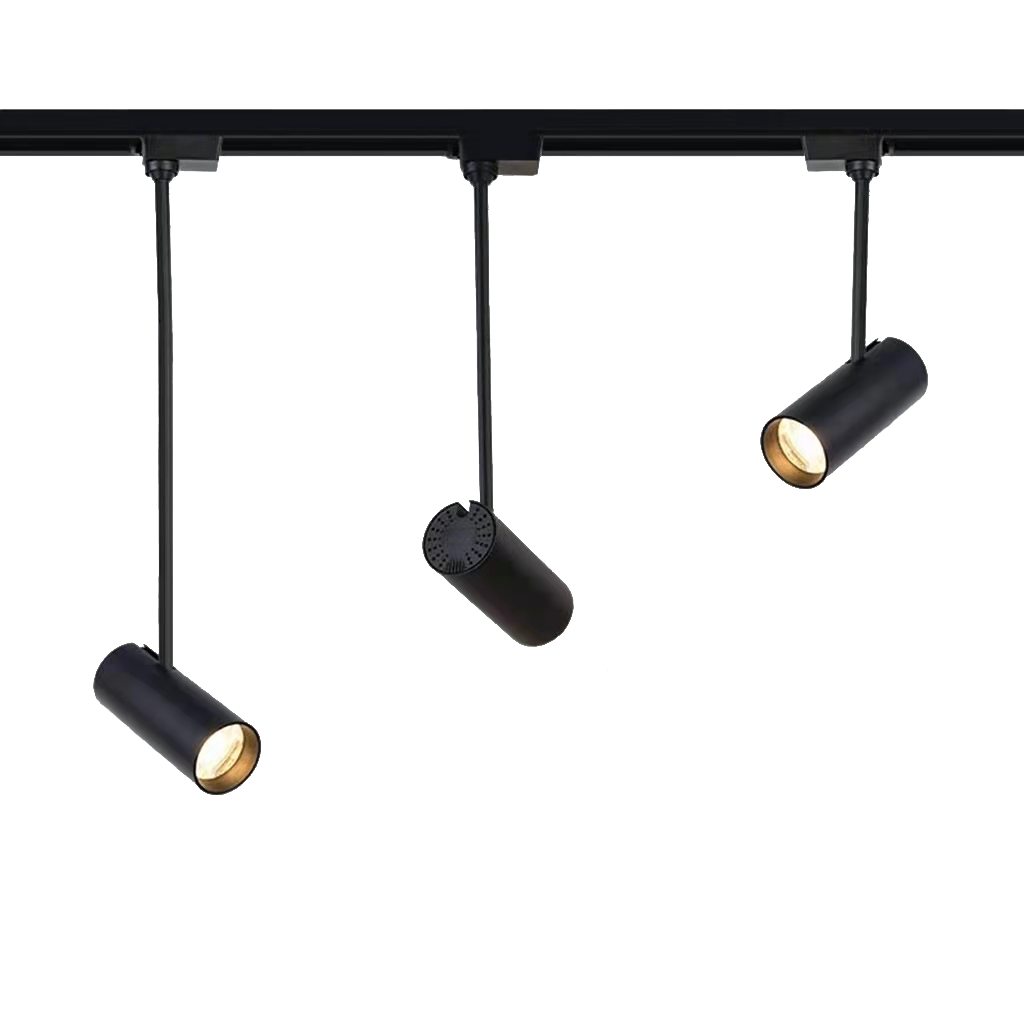

Track Packs COB LED J/H/L Track System Track Pendant Light for Lighting Project


The simple neutral shape fits easily anywhere.‎ Thanks to a variety of applications, an uncompromising performance and high efficiency, AL3023-XM has the power to point the attention and to create a special atmosphere in a space.‎

LED Light Engine

  • Color Temperature 2700K-6000K
  • CRI 80+
  • 3 Step MacAdam (3 SDMC)
  • Passive aluminum heat sink
  • Multiple connectors can share a lamp body
  • 50,000 hrs average rated life

Electrical System

  • 120V/277V 50/60Hz input
  • Over voltage, over current and short circuit protection: Auto recovery
  • MTBF > 100,000 hours


16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood


  • Track Dimming
  • (ELV) reverse phase control dimmers. 120V only.
  • Dimmable 100 – 10%
  • Canopy Dimming
  • ELV Dimming 120V
  • 0-10V Dimming 120V or 277V


Track luminaire is designed for use with the following track systems:

  • Single Circuit/Single Neutral 120V
  • Two Circuit/Single Neutral 120V (No Dimming)
  • Two Circuit / Two Neutral 120V
  • Two Circuit / Two Neutral 277V
Material Die cast aluminum
Input Voltage 120/277v 50/60Hz input
Wattage 10W/15W/25W/28W/Lamp
CCT 2700,3000K,3500K,4000K
PF >0.98
CRI 80+/90+
Mounting Track Pendant Mount


Track Pendant mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
