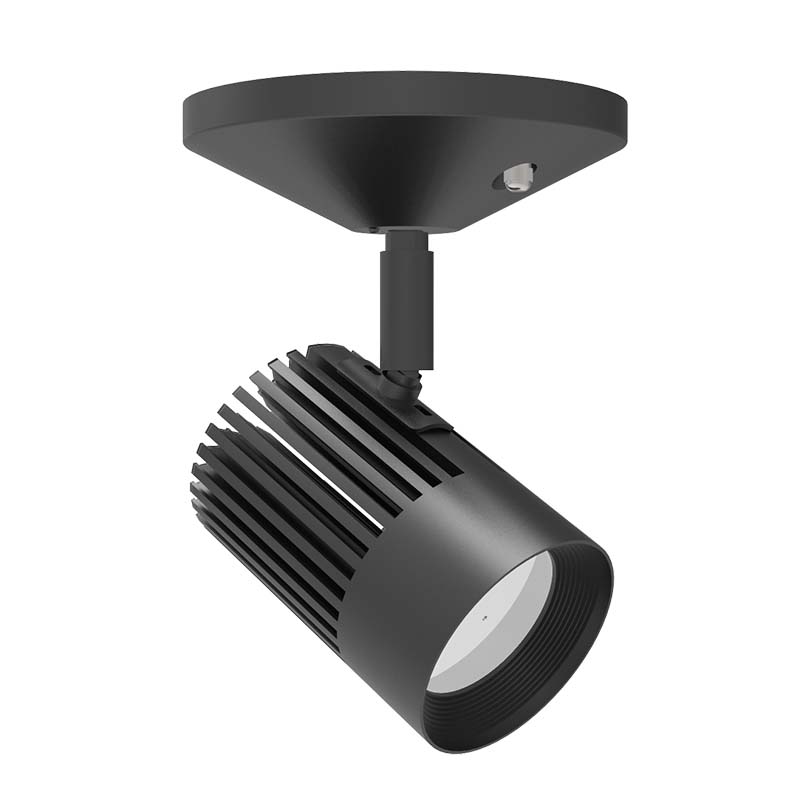

Ceiling/Wall Mount COB 3CCT LED Track Light FM3023M Gallery Lighting
ITEM No.： FM3023M
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 45W
Lumen : 100LM/W
LED COB track light WITH CANOPY
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- 3 color temperature selectable, convenient inventory and cost savings
- 50,000 hrs average rated life
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
- Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
- Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
HIGH VOLT COB CHIP(WITHOUT DRIVER)
This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.
The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
|Material||Die cast aluminum|
Mounts to a standard 4” square or octagon junction box
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
Product File Download
|#||File||Added by||File size||Downloads|
Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
Contacting Liteharbor always makes surprise! www.liteharbor.com
