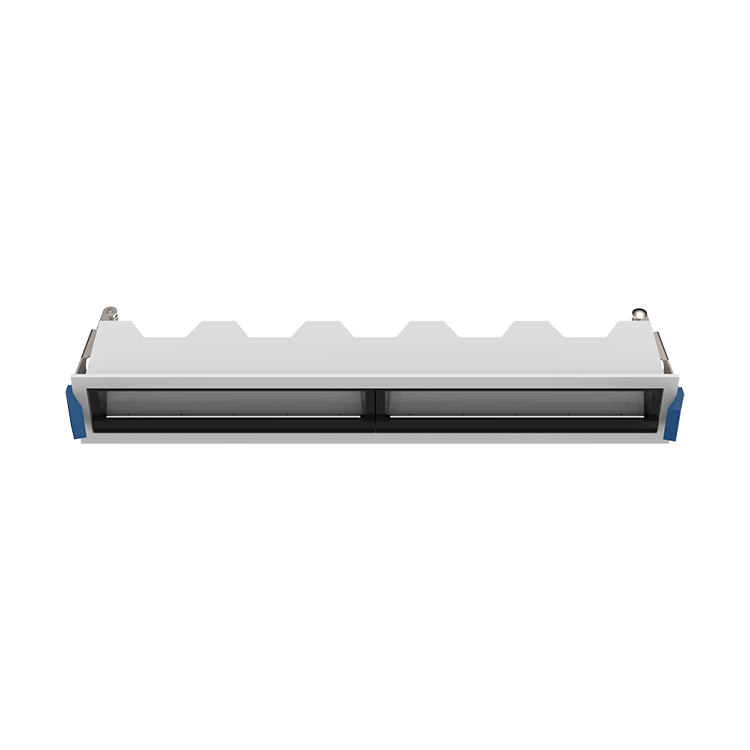

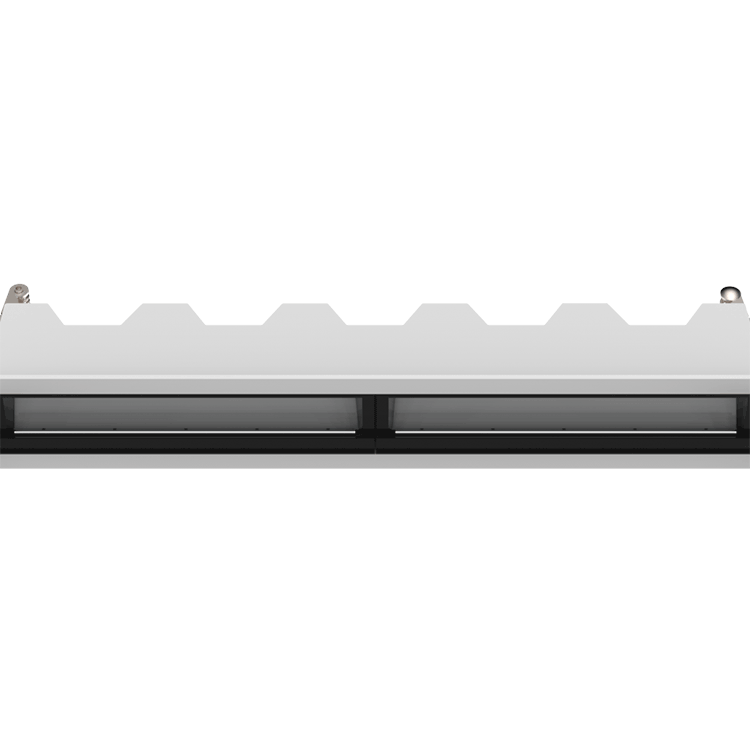

Trimmed/Trimless Remodel Wall Wash Mini LED Multiple Downlight with 10 Lamps


The Mini multiple downlight Series is equipped with5, 10 and 15 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort. It can illuminate the whole wall without any shadow.The Wall Wash LED Downlight from Liteharbor Lighting lines up with the home’s angular corners as a rectilinear design generating directed, inviting illumination. The piece mounts in low-profile ceilings with mouse trap style springs. Provided universal bar hangers adjust for added compatibility. Key components rest inside a wide metal housing fitted with a performance-enhancing heat sink. The housing’s rectangular trim displays a graphic silhouette when turned on. An LED array inside receives a lens to help direct its light towards the wall. This glare-reduced light coats one’s framed pictures or bare walls with a pleasant, uniform quality

– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.

– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic

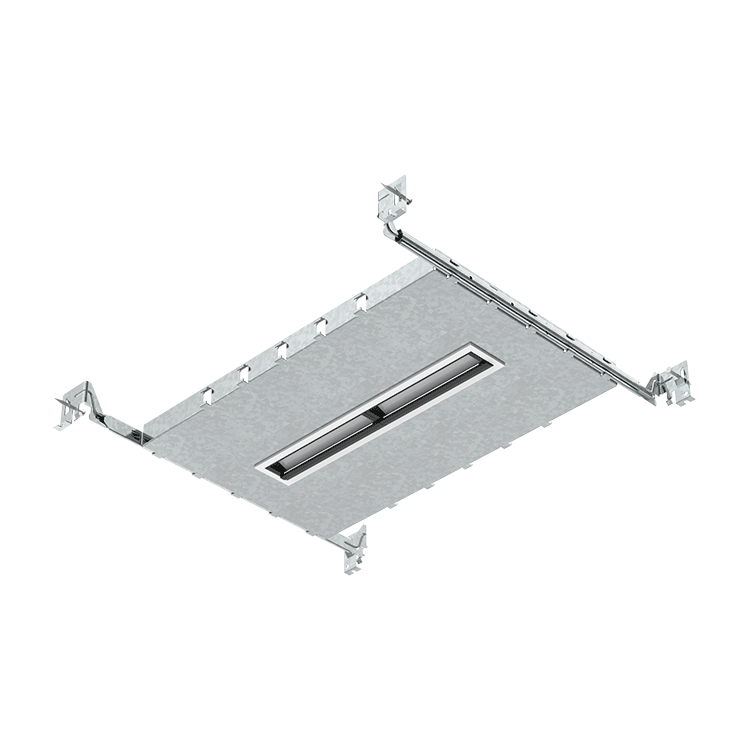

– Mounting: New construction installation or remodel installation

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.

Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.


 Wattagte  2W/Lamp
 Lumen  65-80lm/W
 Optics  30°
 CCT  2700K ~ 6000K
 Material  Die-cast Aluminum
 Dimming  Non/TRIAC/0~10V
 Finish  White/Black/Silver

Product File Download

# File Added by File size Downloads
1 pdf G4012A-10-W liteharbor 841 KB 256
2 pdf G4012A-10-W-NC liteharbor 847 KB 235
3 pdf Mini Multiple DownLight liteharbor 1 MB 587
