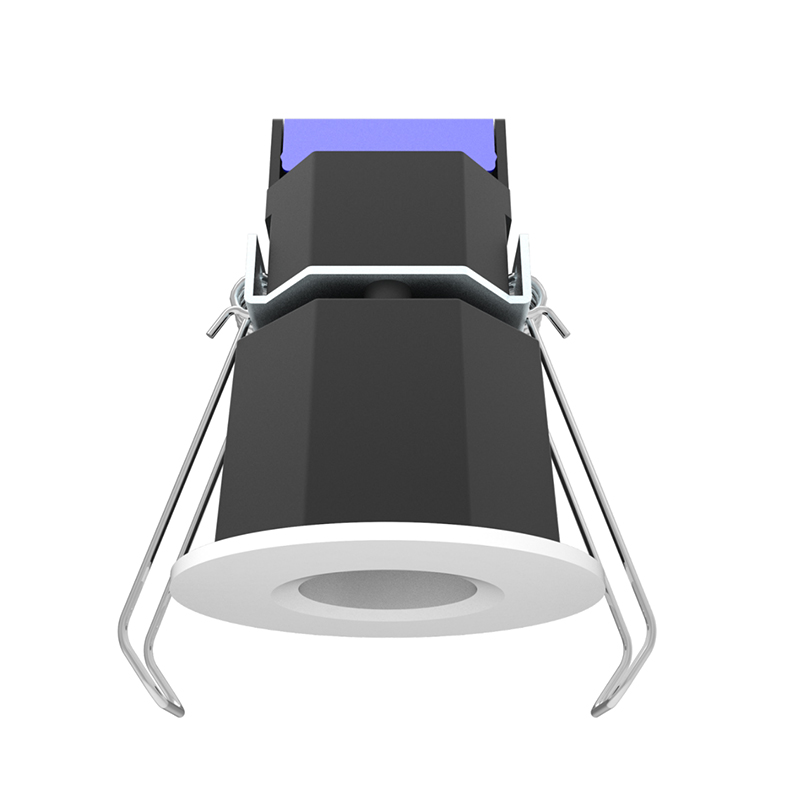

2 Inch Remodel Light 3CCT Emitting Surface Round Fixed Miniature LED Downlight
ITEM No.: BL2-001
Series : Miniature LED Recessed Downlight
Wattage : 8W
Lumens : 800-1000lm
Beam Angle : 30D/60D/90D
CCT : 2700K-5000K
Features
- Constant voltage 24VDC low-voltage centralized power supply improves safety and reduces single lamp spare parts.
- The simplified retrofit installation can be used in both new and existing spaces.
- IC Airtight for use with direct contact to insulation.
- Beam Angle: 15/24/36 Degrees.
- Life Rated for 50,000 hours at 70% lumen maintenance.
- Easy installation for new construction and remodel applications.
- Height allows for use in ceilings with under 3″ depth.Ceiling thickness can be reduced from fixture depth.
- Can be integrated control, the number of fixture connecting depending on the on power used.
- Round and square shape option.
Specification
– Source: LED COB Chips.
– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.
– Optics: PC Lens for even lumen distribution.
– Material: Die-cast aluminum construction for lasting quality.
– Mounting: New construction installation or remodel installation
– Electrical: High efficiency electronic driver, rated at 50 000 hours
– Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.
– Warranty: 3 year limited warranty.
Electrical Specifications
- Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage or constant current mode.
- Constant voltage driver 120V-277V input to 12V/24V low pressure output,one lamp with one driver.
- Integrated power supply optional, easy to replace the power supply.
- Each luminaire is connected in parallel, one power supply can simultaneously control multiple lamps.
- The power has UL listed, can be applied to a variety of applications.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.
Parameter
Voltage | DC 24V | |||||||||
Watt | 8W | |||||||||
CCT | 2700K-6000K/3CCT | |||||||||
Dimmable | Dimming | |||||||||
Lumen | 800-1000lm | |||||||||
Light Source | COB | |||||||||
CRI | 90+ | |||||||||
Beam Angle | 15°/24°/36° | |||||||||
Material | Aluminum | |||||||||
Finish | White/Black/Silver/Satin Nickel/Brown |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | Eyeball Downlight & Miniature LED Downlight | liteharbor | 5 MB | 490 |
2 | BL2-001 | liteharbor | 2 MB | 297 |
3 | BL2-003 | liteharbor | 1 MB | 285 |
4 | BL2-S001 | liteharbor | 1 MB | 267 |
5 | BL2-S003 | liteharbor | 1 MB | 256 |
