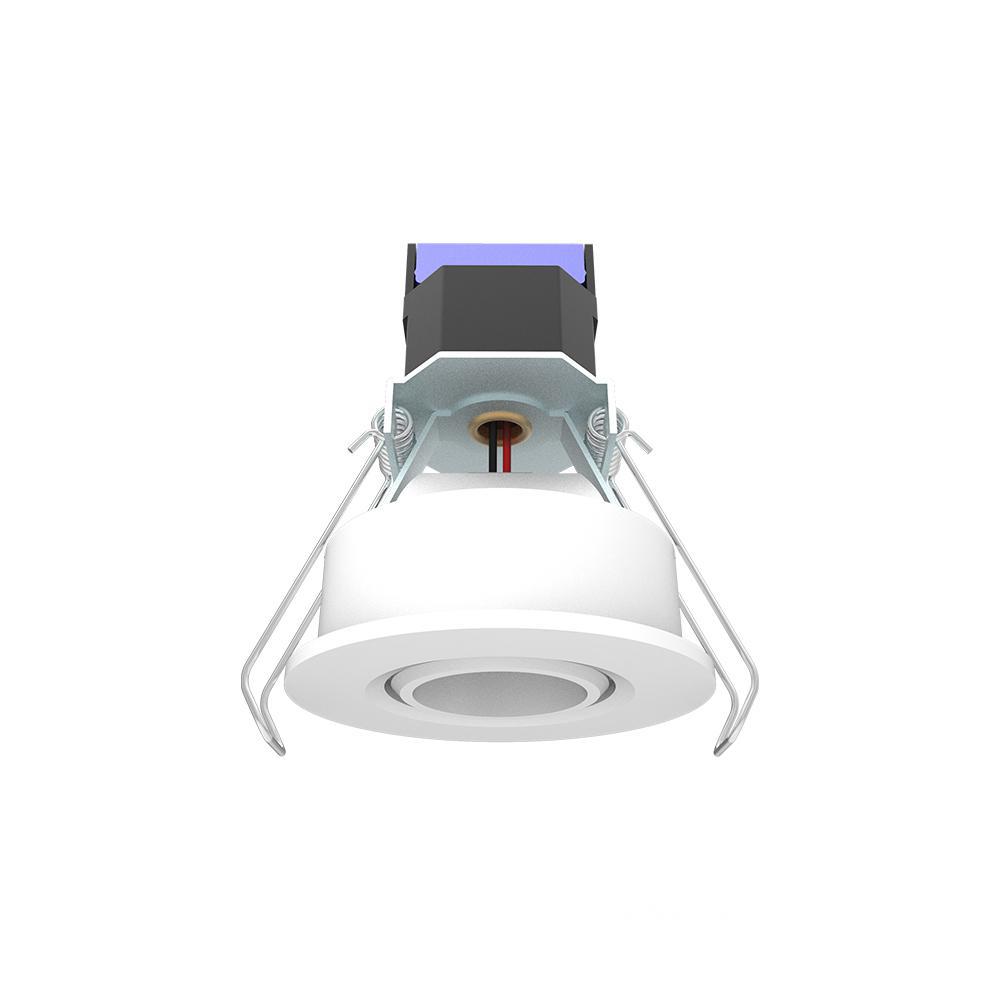

2 Inch Remodel Light Emitting Surface Round Miniature Adjustable LED Downlight


  • Constant voltage 24VDC low-voltage centralized power supply improves safety and reduces single lamp spare parts.
  • The simplified retrofit installation can be used in both new and existing spaces.
  • IC Airtight for use with direct contact to insulation.
  • Beam Angle: 15/24/36 Degrees.
  • Life Rated for 50,000 hours at 70% lumen maintenance.
  • Easy installation for new construction and remodel applications.
  • Height allows for use in ceilings with under 3″ depth.Ceiling thickness can be reduced from fixture depth.
  • Can be integrated control, the number of fixture connecting depending on the on power used.
  • Round and square shape option.
  • Lamp body can adjustable 30 degrees.


– Source: LED COB Chips.

– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.

– Optics: PC Lens for even lumen distribution.

– Material: Die-cast aluminum construction for lasting quality.

– Mounting: New construction installation or remodel installation

– Electrical: High efficiency electronic driver, rated at 50 000 hours

– Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.

– Warranty: 3 year limited warranty.

Electrical Specifications

  • Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage or constant current mode.
  • Constant voltage driver 120V-277V input to 12V/24V low pressure output,one lamp with one driver.
  • Integrated power supply optional, easy to replace the power supply.
  • Each luminaire is connected in parallel, one power supply can simultaneously control multiple lamps.
  • The power has UL listed, can be applied to a variety of applications.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

3 Year Limited Warranty.


Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.


Voltage DC 24V
Watt 8W
CCT 2700K-6000K/3CCT
Dimmable Dimming
Lumen 800-1000lm
Light Source COB
CRI 90+
Beam Angle 15°/24°/36°
Material Aluminum
Finish White/Black/Silver/Satin Nickel/Brown

Product File Download

# File Added by File size Downloads
1 pdf Eyeball Downlight & Miniature LED Downlight liteharbor 5 MB 452
2 pdf BL2-001 liteharbor 2 MB 251
3 pdf BL2-003 liteharbor 1 MB 237
4 pdf BL2-S001 liteharbor 1 MB 226
5 pdf BL2-S003 liteharbor 1 MB 216
