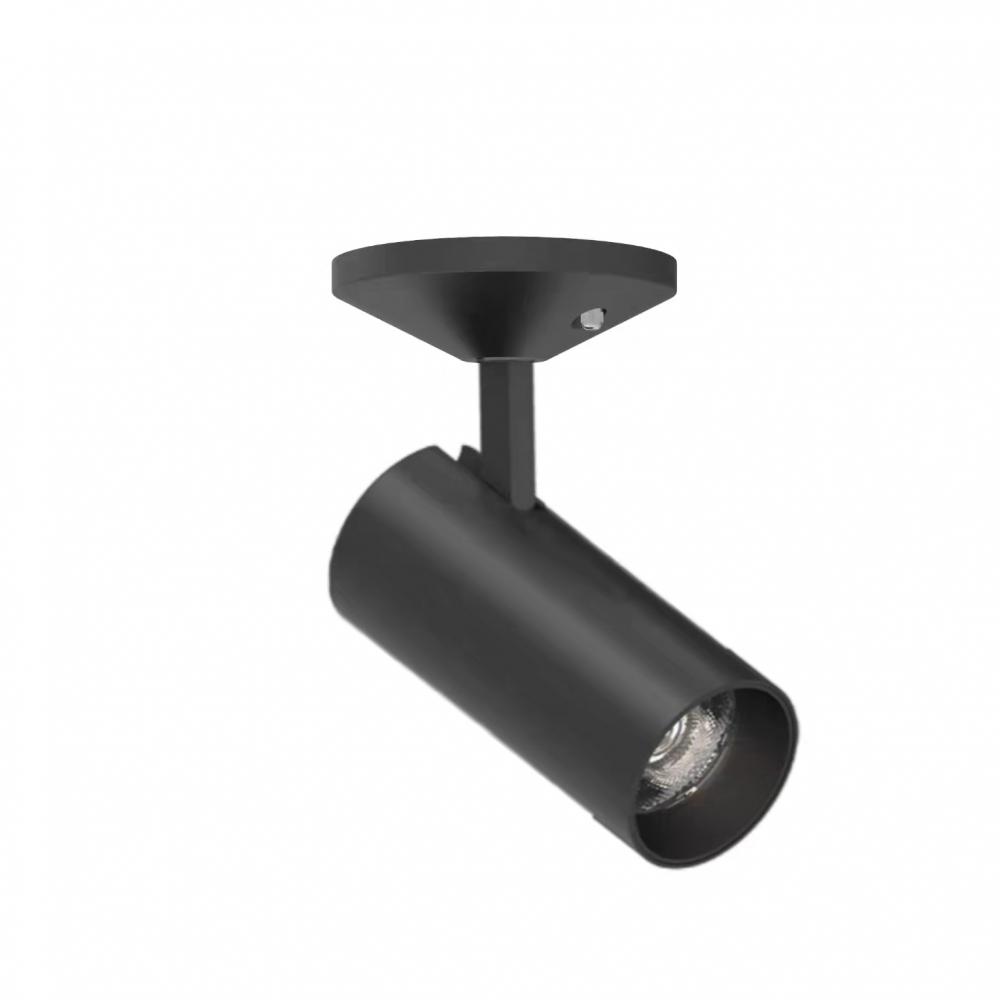

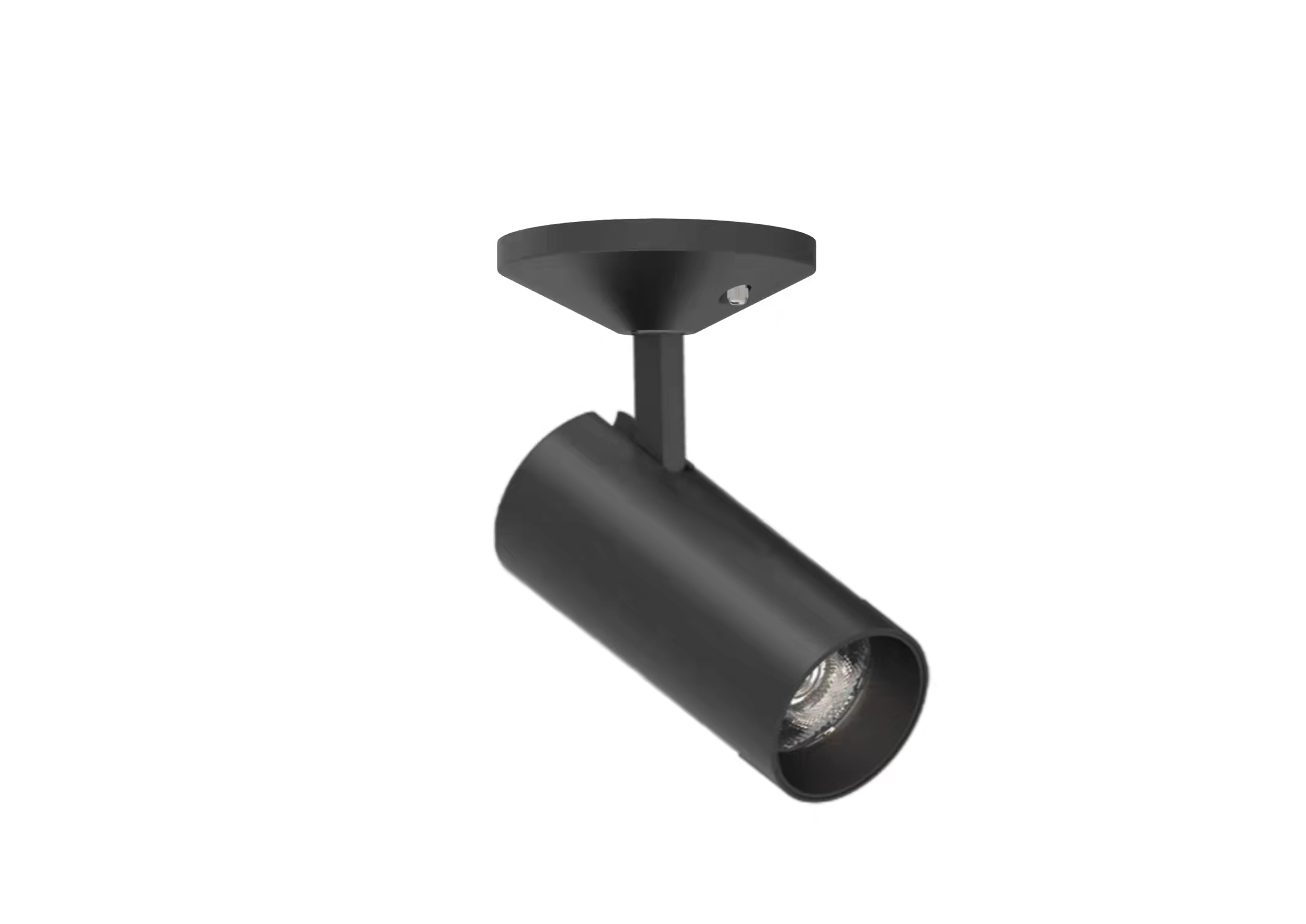

28W Ceiling/Wall Mount COB 3CCT LED Track Light Kitchen Lighting




LED 28W adjustable cylindrical projector for track system. It emits a luminous flux of 2500-2800 lumens with warm white light 3000K or neutral 4000K light. Power supply and track adapter included. Integrated optics with 24 ° or 32 ° or 50° emission.

LED Light Engine

  • Color Temperature 2700K-6000K
  • CRI 80+
  • 3 Step MacAdam (3 SDMC)
  • Passive aluminum heat sink
  • 50,000 hrs average rated life


Electrical System

  • 120V/277V 50/60Hz input
  • Over voltage, over current and short circuit protection: Auto recovery
  • MTBF > 100,000 hours



16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood



  • Track Dimming
  • (ELV) reverse phase control dimmers. 120V only.
  • Dimmable 100 – 10%


  • Canopy Dimming
  • ELV Dimming 120V
  • 0-10V Dimming 120V or 277V

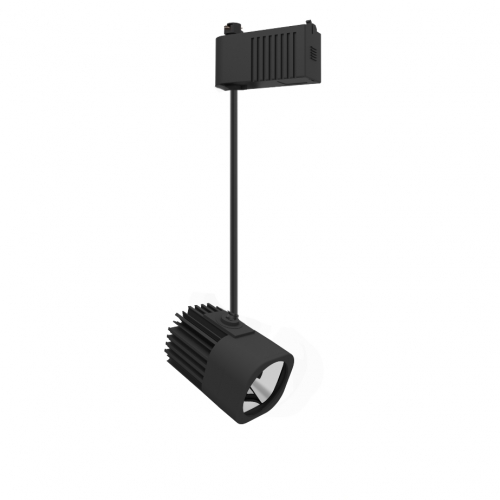

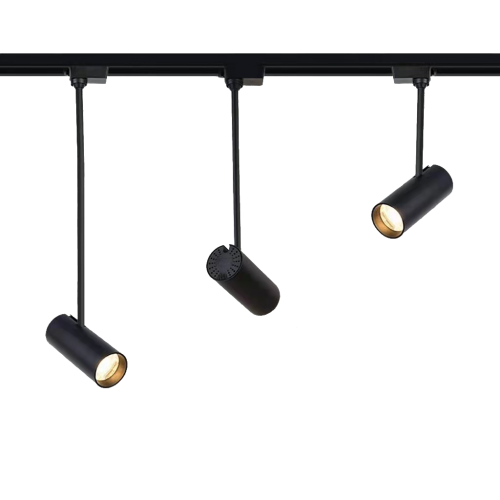

Track luminaire is designed for use with the following track systems:

  • Single Circuit/Single Neutral 120V
  • Two Circuit/Single Neutral 120V (No Dimming)
  • Two Circuit / Two Neutral 120V
  • Two Circuit / Two Neutral 277V
Material Die cast aluminum
Input Voltage 24V
Wattage 10W/15W/25W/28W
CCT 2700,3000K,3500K,4000K
PF >0.98
CRI 80+/90+
Mounting Ceiling Mount


Mounts to a standard 4” square or octagon junction box


Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
