3CCT COB pendant track lighting fixtures FM3024A Gallery Lighting
ITEM No.： FM3024A
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 45W Max
Lumen : 100lm/w
LED COB track light WITH CANOPY
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- 3 color temperature selectable, convenient inventory and cost savings
- 50,000 hrs average rated life
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours

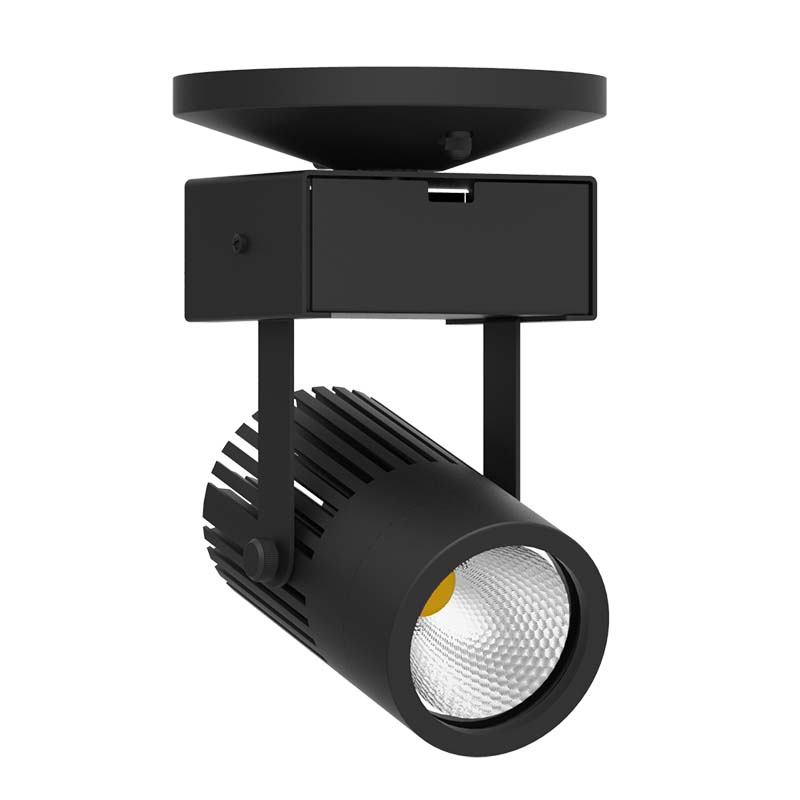

Ceiling mounted single head
Ceiling mounted single head
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
- Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
- Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
HIGH VOLT COB CHIP(WITHOUT DRIVER)
This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.
The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.
|Material||Die cast aluminum|
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
Mounts to a standard 4” square or octagon junction box
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
Product File Download
|#||File||Added by||File size||Downloads|
