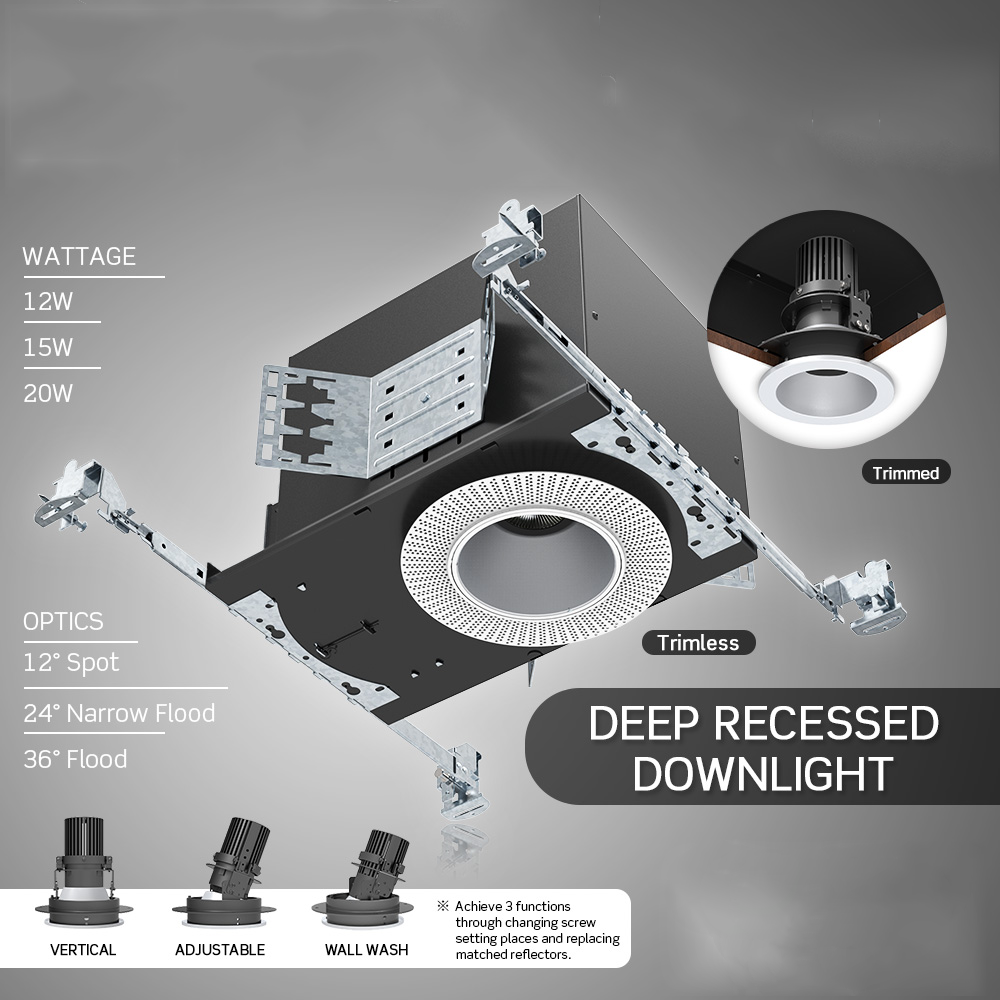

Lighting Project 3.5” COB 25W LED Square Recessed Downlights LED
ITEM No.: A35-M-R
Downlight Name : COB Recessed Downlight
Downlight Size : 3.5 inch
Downlight Light Engine : COB LED
Downlight Wattage : 12 / 15 / 20 /25 W
Downlight Lumens : 1000 1300 1600 2000Lumens
Description
3.5 inch LED recessed fixtures with round or square apertures offer energy-efficient, precision lighting for accent, task, or wall wash applications.
This type LED luminaire approximates the performance of 50W halogen, but at only 12-watts input, consumes just one-fourth the energy.
A feature enriched, small aperture downlight, the innovative design allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim.
Vertical Downlight
With precision optics and adjustments, luminaires put exactly the right amount of light in precisely the right places.
Achieve different beam angles without replacing any parts.
Allow for 358 degree rotation.
Trimless is available.
Features
- PoE scheme or LED quick connector provided. .
- Robust, durable and lightweight.
- Power & CCT Tunable, convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids.
- Up to 80lm/W, total 1000lm to 2000lm delivered lumens(2700K-6000K).
- 5 classic color temperatures tunable (2700K, 3000K, 3500K, 4000K, 5000K),RGB+Tunable White(2700K-6000K) and Tunable White(1800K-6000K).
- Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching most dimmers.
- Beam angle: 12/24/36°
- Available in trimmed or trimless.
- Universal 120V-277V driver with optional 0-10V standard dimming protocol.

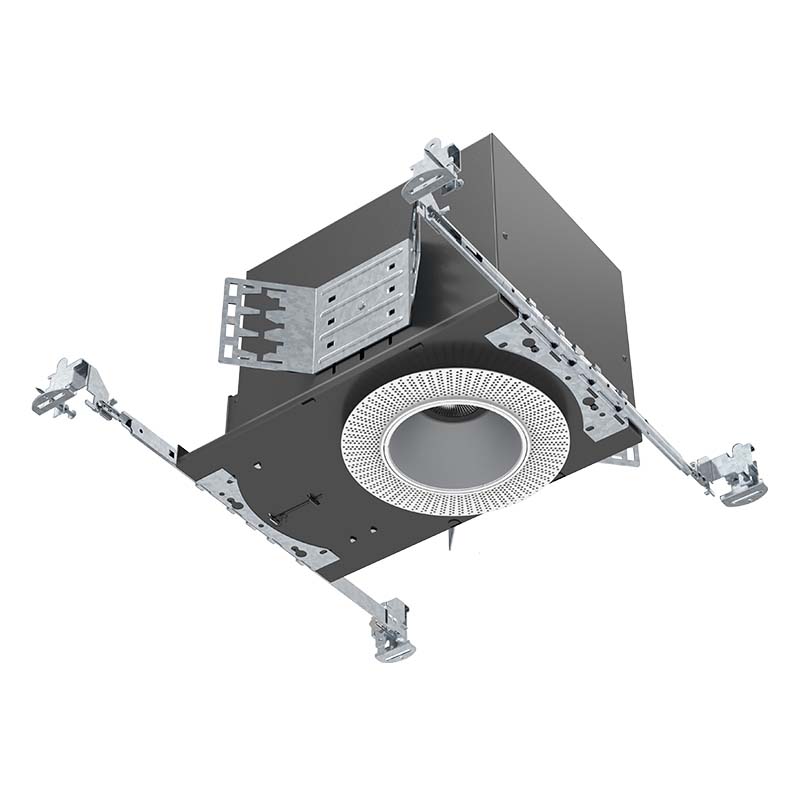

Housing
Heavy duty black powder coated cold roll steel frame.
Designed for New Construction installation
Housing can be installed in 1/2″ to 1-3/8″ thick ceilings
Housing types include IC Air-Tight or Non-IC Rated (must specify).
Junction box and driver are located on opposite ends of the housing, with easy access for maintenance and installation.

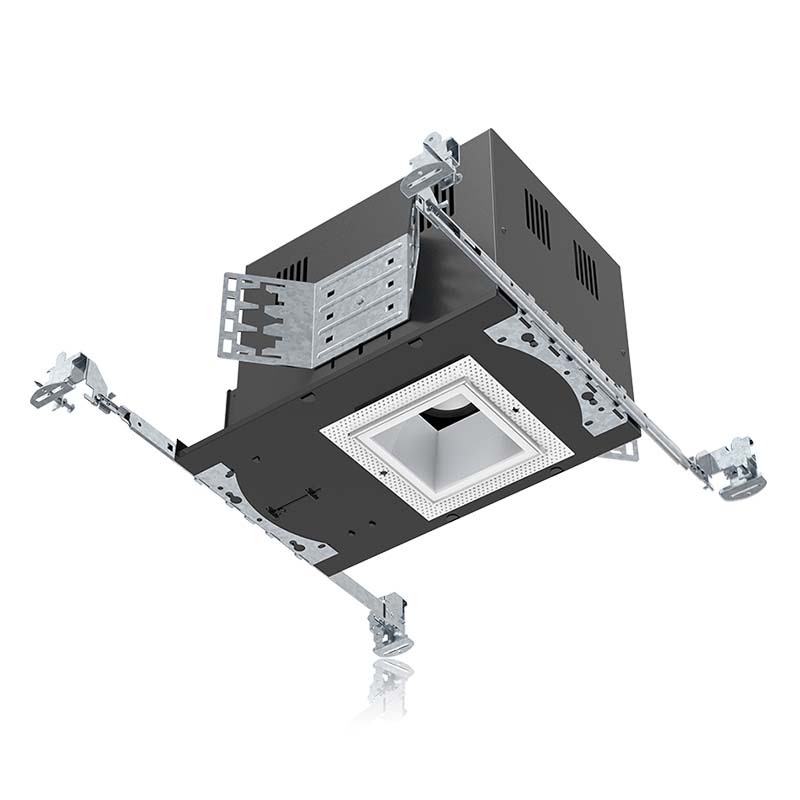

Optional round or square aperture shape.
Trimless design is available.
LED Light Engine
Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is optional)
12W 15W 20W
1000 1300 1600 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output
Optics
12° Spot, 24° Narrow Flood and 36° Flood
Applications
Widely used for commercial and residential applications.
Specification
DESCRIPTION | A35-M-1 | |||||||||||||||||||||||||
Wattage | 12W | 15W | 20W | 25w | ||||||||||||||||||||||
Luminous Flux | 1000lm | 1300lm | 1600lm | 2000lm | ||||||||||||||||||||||
Lumens / Watt | 80lm/w | |||||||||||||||||||||||||
CRI | 80+ / 90+ | |||||||||||||||||||||||||
Colour Temperature | 2700K, 3000K, 4000K, 5000K, 6000K/3CCT/5CCT | |||||||||||||||||||||||||
Driver Input | DC 24V /Universal 120V or 277V | |||||||||||||||||||||||||
Dimming | Tunable White / Dim to Warm / TRIAC Dimming / 0-10V Dimming | |||||||||||||||||||||||||
Optics | 12° / 24° / 36° | |||||||||||||||||||||||||
Location | Insulated Ceiling & Damp Locations | |||||||||||||||||||||||||
Finish | White,Black,Satin Nickel | |||||||||||||||||||||||||
Working Humidity | 10% – 70% | |||||||||||||||||||||||||
IP Rating | 20 | |||||||||||||||||||||||||
UGR | <18 | |||||||||||||||||||||||||
Beam Angle | 120° | |||||||||||||||||||||||||
THD | <20% | |||||||||||||||||||||||||
Installation | Recessed Ceiling Mount | |||||||||||||||||||||||||
Lifespan | 50,000 Hours at 70% Light Output | |||||||||||||||||||||||||
Executive Standard | ETL | |||||||||||||||||||||||||
Warranty | 5 Year Limited |
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
Wall Wash Downlight
High performance wall wash with asymmetric distribution provides uniform illumination.
Allow for 358 degree rotation.
Wall wash downlight used with wall washing reflector matched.
INSTALLATION
Housing types include IC Air-Tight, CCEA (Chicago Plenum), or Non-IC Rated (must specify). Non-IC rated housings must be kept at a minimum of 3” away from insulation.
Butterfly brackets and adjustable hanger bars (14”-25”) with integral nail included.
Butterfly brackets are compatible with C-channel, flat bar hanger and EMT. C-channel is recommended for T-bar ceilings.
C-Channel and flat C-Channel and flat bar hangers must be ordered separately.
PACKAGE
CTN Size: 490*390*223mm
1 PCS/CTN
TOP POE BENEFITS INCLUDE
◆ Further Cost Savings
◆ Easy, Low-Voltage Installation
◆ Helps future-proof buildings
◆ Enhanced Flexibility and Control
◆ Enables software control integration
◆ Social Benefits
◆ Robust, Secure and Reliable
ADVANTAGES OF POE
The primary advantage of power over ethernet is the delivery of data and power over one Cat5 or Cat6 ethernet cable.
Remote installation generally costs less than optical fiber and does not require a qualified electrician, saving building owners valuable time and labor costs.
One of the biggest advantages of PoE technology is cost savings.
PoE installation is cheaper than traditional electrical work, operating costs are lower over the course of the PoE lifetime and data can inform further decisions to save costs
— all without sacrificing lighting quality for occupants.
