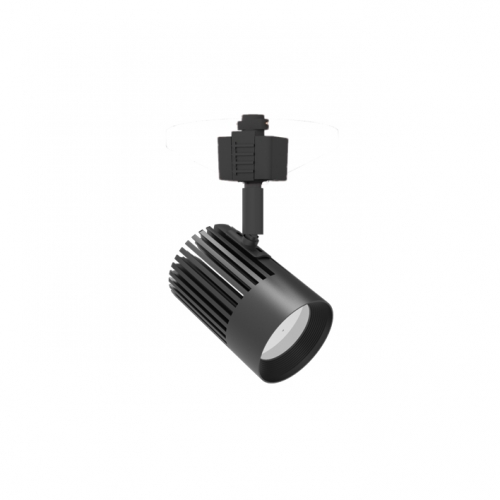

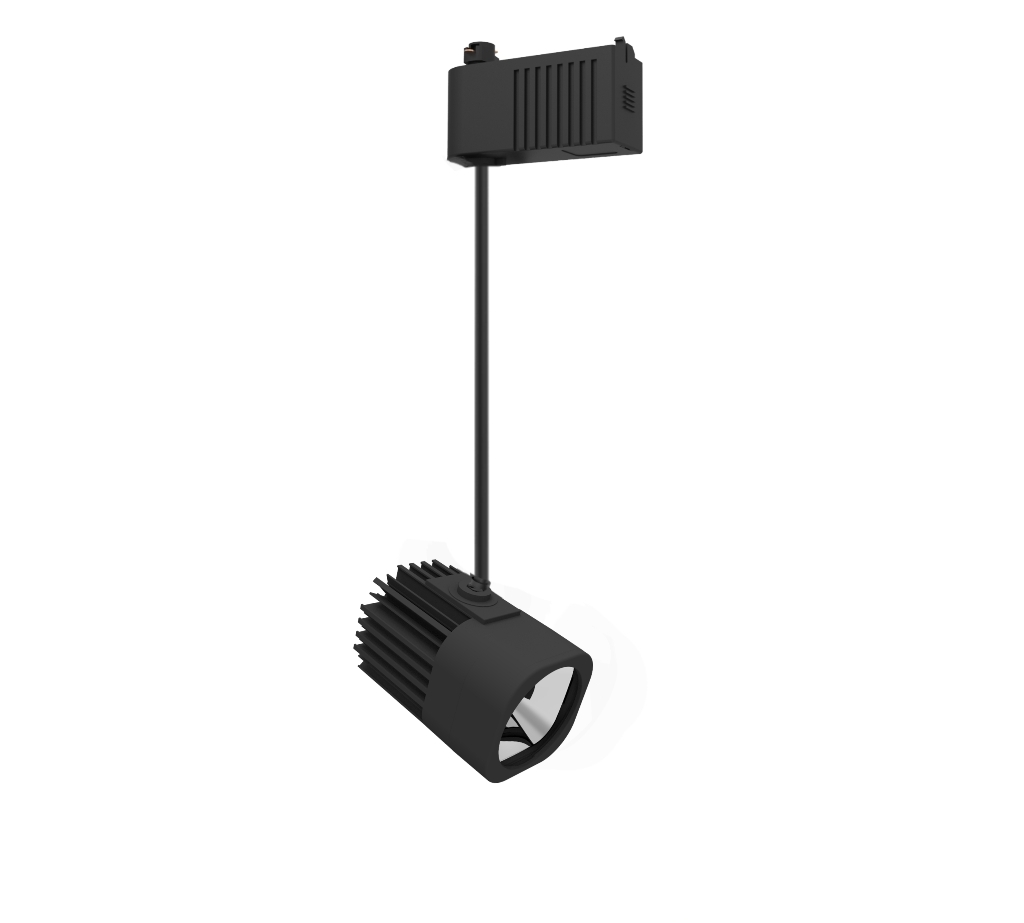

30W Low Volt Track Pendants COB 3CCT LED Track System Square Track Light Lighting Project


Centrally powered driver 120V input at the light source becomes the output 24V power lamp beads. Low-voltage centralized power supply

improves safety and reduces single lamp spare parts.

The structure of the track lights is compact and the appearance is simple and generous.

24W max per lamp(track bar can be customized as required).

The lighting has a wide range of adjustments, the vertical tunability is up to 90 degrees. It provides good light output, high efficiency and energy saving, and can be suitable for various lighting places.

Long life, low electromagnetic interference, low energy consumption, high performance and provides short circuit and over current protection.

Dimming: Non-Dimming/DMX512 Dimming without flicker.

3 color temperature selectable, convenient inventory and cost savings.


Radiator: Using cold forging radiator, fast heat dissipation, he patented structure of the heat dissipation module, integrated balanced conduction convection, radiation heat, to ensure long product life.

Lens: Professional optical grade PMMA lens, a variety of beam angles (narrow 10°, medium 20°, wide 30°) are available, and other beam angles are available.

Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.



16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood


  • 24V Not Dimming
  • DMX512 Dimming


Material Die cast aluminum
Input Voltage 24V
Wattage 10W/15W/20W/25W/30W
CCT 2700,3000K,3500K,4000K
PF >0.98
CRI 80+/90+
Mounting Track Pendants Mount


Track mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty

Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.

Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
