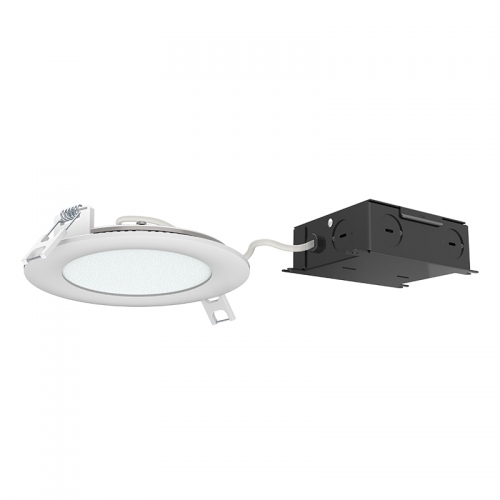

4″ Fire Rated CCT Adjustable 360 Degree Rotating LED Slim Panel Light
Shape : Round
Input Voltage : 120-277V AC/24V(PoE Scheme)
Lumen : 900lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT/5CCT
Beam Angle : 120 Degree
Lifespan : 100000 HoursLED Mini Spotlight

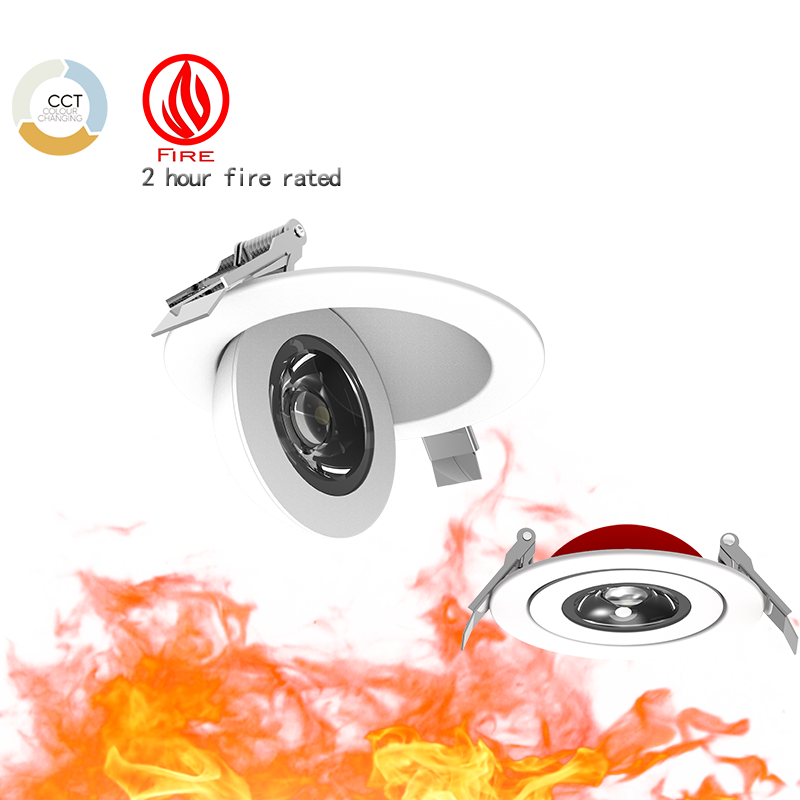

The eyeball design of Liteharbor Mars Light series creates muted illumination to enhance residential or commercial spaces without sacrificing brightness. With 2 Hour Fire Resistance to meet and exceed strict fire safety codes with only 1/2” clearance, this 360 degree rotating recessed LED Panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings. This LED is 9 watts and replaces a 45 watt halogen Save up to 80% energy for same light output.The thin Panel profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.
- PoE scheme or LED quick connector provided.
- Available in all 4″ round openings.
- Retrofit or New Construction.
- 1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
- Robust, durable and lightweight.
- 3CCT and 5CCT range changeablen,3000K, 4000K and 5000K ,convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids
- No UV, IR or Mercury
|Lumens / Watt||100lm/w||100lm/w|
|Colour Temperature||3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)||3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)|
|Driver Input||24V||120V AC or 120V-277V AC 50/60 Hz|
|Dimming||RGB+W / Tunable White||TRIAC Dimmers 10%-100% (120V only)|
|Location||Insulated Ceiling & Damp Locations||Insulated Ceiling & Damp Locations|
|Finish||White,Black,Satin Nickel||White,Black,Satin Nickel|
|Dimensions||∅4.94”* H 1.51”||∅4.94”* H 1.51”|
|Working Temperature||-20°C to +60°C||-20°C to +60°C|
|Working Humidity||10% – 70%||10% – 70%|
|Installation||Recessed Ceiling Mount||Recessed Ceiling Mount|
|Lifespan||50,000 Hours at 70% Light Output||50,000 Hours at 70% Light Output|
|Executive Standard||ETL/ENERGY STAR||ETL/ENERGY STAR|
|Warranty||3 Year Limited for Fixture & Driver||3 Year Limited for Fixture & Driver|
Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.
- indoor / outdoor residential,
- shopping mall stores
LISTING / WARRANTY
- ETL to US and Canadian standards for damp location W/Feed through.
- 3 Year Limited Warranty.
