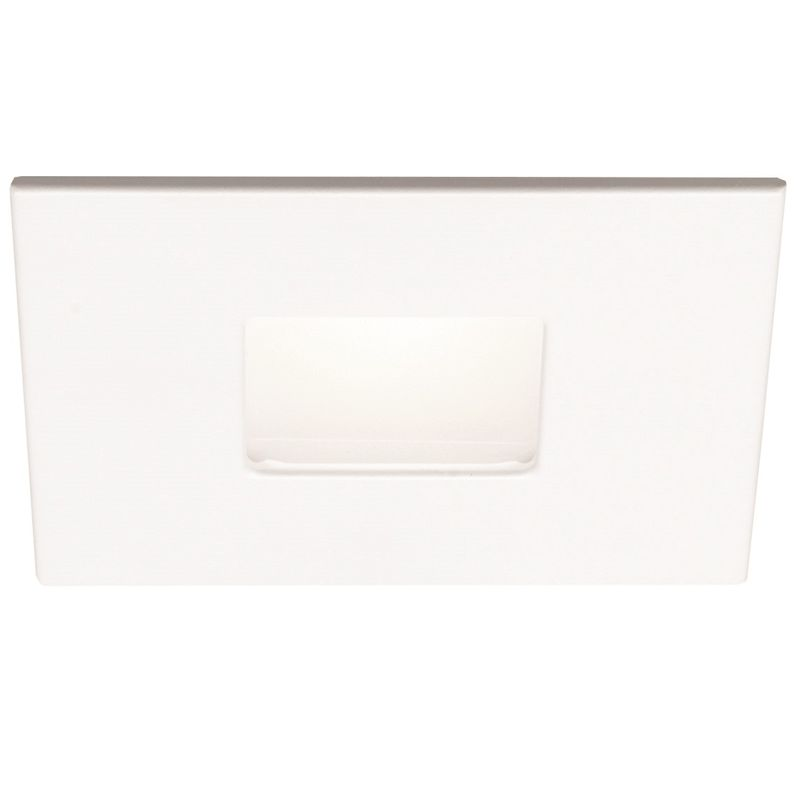

Contrast Lighting UR3H 3-3/4″ Square 10W Shower Trim With Square Pinhole Aperture
Series：UR3H
ITEM No.：DR3H
Cut Hole Size : 3-3/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square 3-1/2in shower dedicated LED trim with square 1-3/4in pinhole aperture of the Urbaï recessed LED series made by Contraste. Two lenses are offered with this model: the standard frosted lens and a clear lens. Six trim finishes are available along with three painted reflector finishes. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with 2,700K and 3,000K. A 48° flood beam is offered with the UR3H model, which delivers 368 lumens @ 3,000K in performance 1. The remodeler housing and the new construction housings are compatible with 120V and 277V input and two dimming options: ELV and 0-10V.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 480LM/ 659LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 48° |
| Luminous Size: | L 1-3/4 in * W 1-3/4 in |
| Height: | 4-3/8 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 217 |
| 2 |
DG-FT_UR3H_EN
|
liteharbor | 2 MB | 119 |
