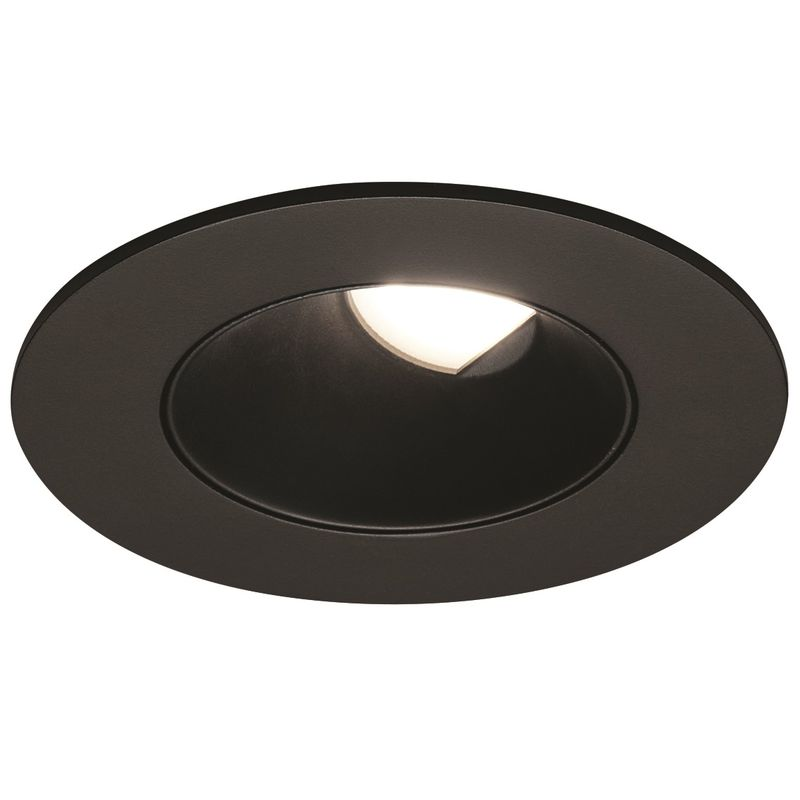

Contrast Lighting UR4G 4″ 15W Round Wall Wash Trim
Series：UR4G
ITEM No.：DR4G
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Round
Description
Round 4in dedicated LED wall wash trim of the Urbaï recessed LED series made by Liteharbor. Available with a frosted lens to soften the lighting on the wall, this model is offered in six trim finishes and in three painted reflector finishes. For an optimal lighting result and a quiet ceiling effect, Contraste suggests the use of the matte black reflector finish. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is offered with the 2,700K and 3,000K. The warm dimming option allows dimming the lights from 3,050K to 1,800K. The UR4G model has a good lighting performance, delivering 516 lumens @ 3,000K in performance 1 with its standard frosted lens. The housings are compatible with 120V and 277V input and two dimming options: ELV and 0-10V.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 516LM/ 672LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 65° |
| Luminous Size: | φ 3 in |
| Height: | 4-1/2 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 216 |
| 2 |
DG-FT_UR4G_EN
|
liteharbor | 2 MB | 123 |
