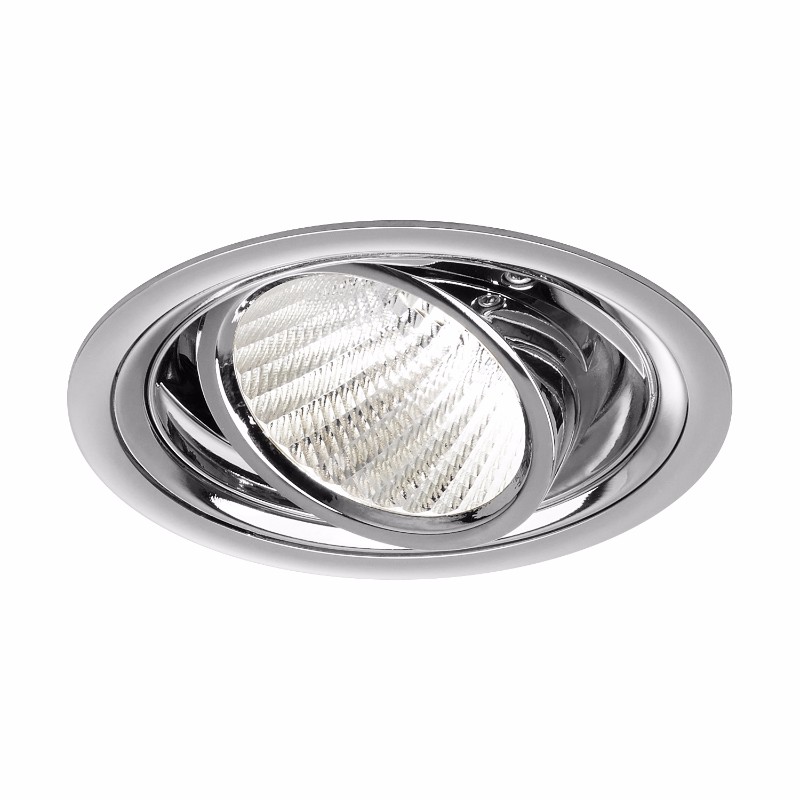

Contrast Lighting A3RAF 3.5″ 14W Round Adjustable LED Downlight
Series:A3RAF
ITEM No.:DL3RAF
Watt:14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Round
Description
Ardito dedicated LED ultra-thin round adjustable 3-1/2” trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings in performance 1 (14W) and performance 2 (23W). With a choice of seven trim finishes, four color temperatures and a 90+ CRI, this model is also available with the warm dimming (from 3,050K to 1,800K) and color tuning options. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input. This entirely adjustable trim, thanks to its 30° tilt, 359°rotation and 15° spot beam, allows to highlight the features of a certain object or place in a room. A3RAF offers an excellent performance, delivering from 1,300 to 1,900 lumens, for 96 lm/W @ 3,000K in performance 1. The spot beam delivers close to 12,000 candelas at nadir, while keeping the minimalist look of the trim.
Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″

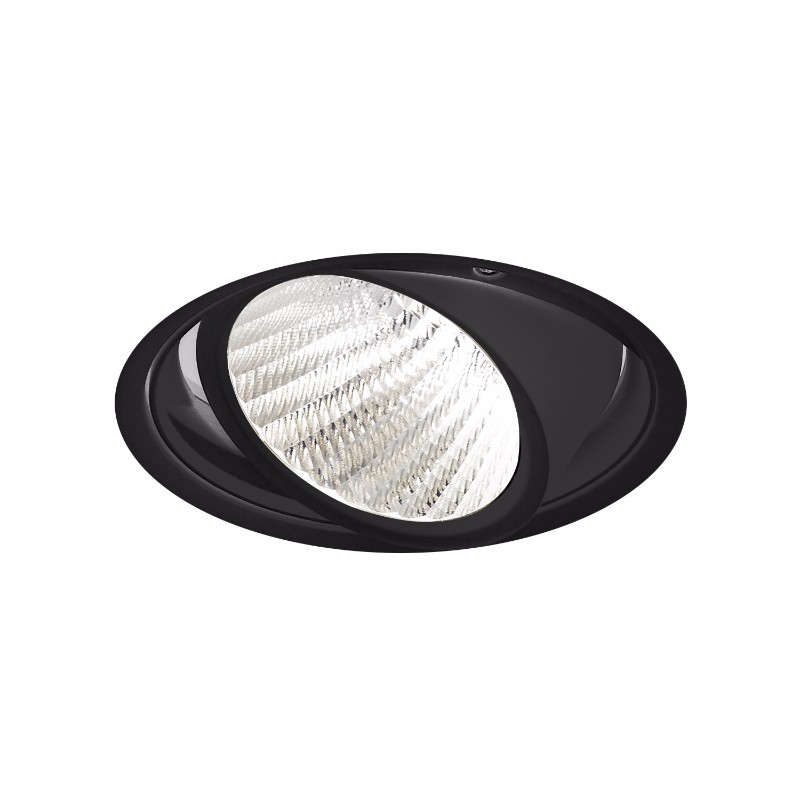

Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
Volts: | 120V-277V |
Watts: | 14W |
Lumens: | 470 – 670LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 15°/30°/42° |
Luminous Size: | ø3-1/2 in |
Height: | 5-1/4 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-Ardito_EN | liteharbor | 9 MB | 355 |
