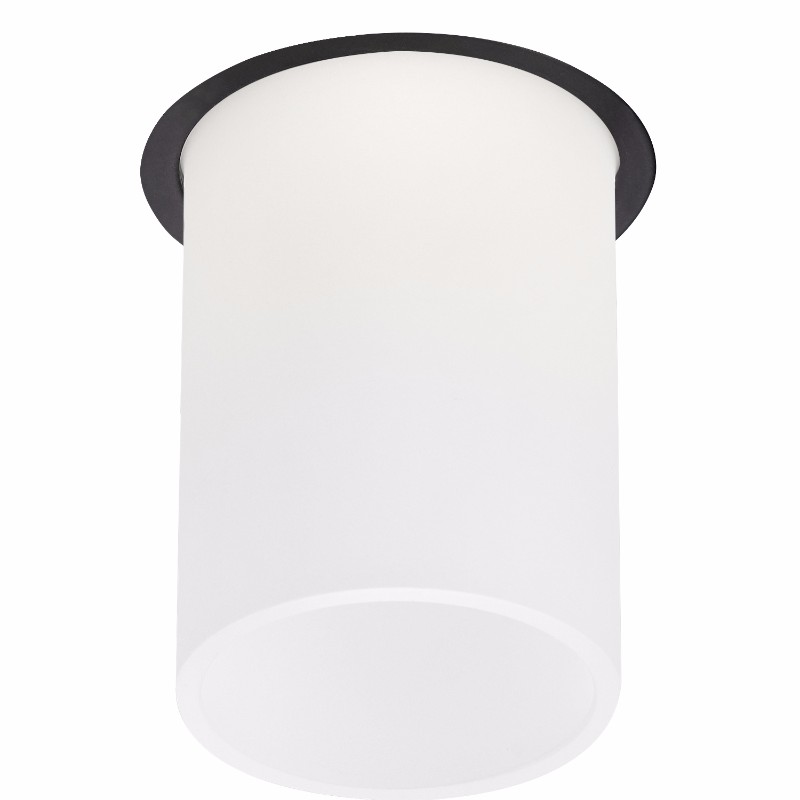

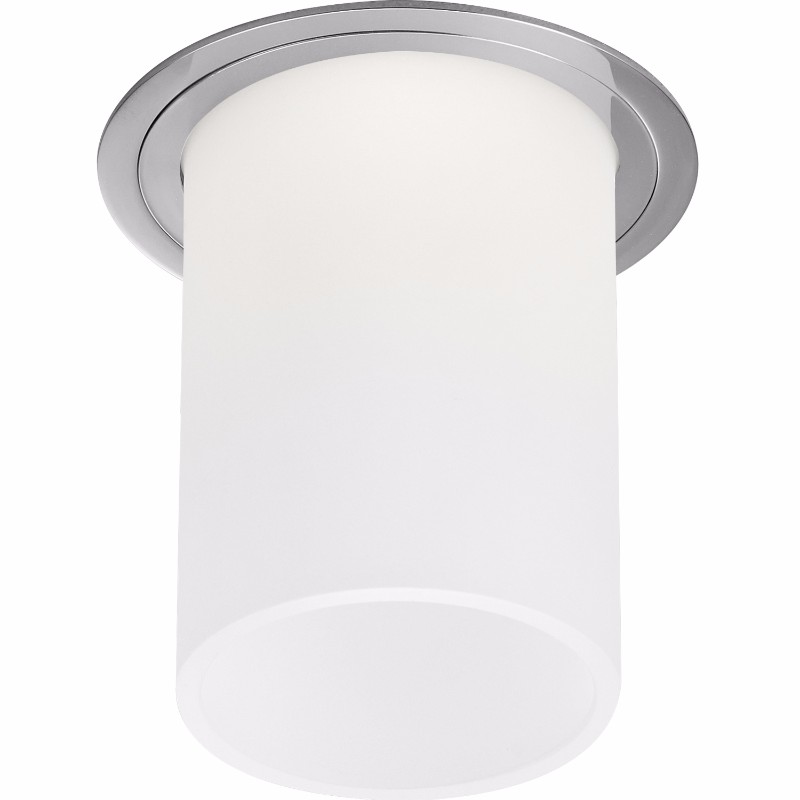

Contrast Lighting A3RFD 3.5″ 14W Round LED Downlight with Frosted Glass Tube

Description

Ardito dedicated LED ultra-thin round 3-1/2” trim with a 4” long frosted glass decorative tube available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings. Offered in four color temperatures and with a 90+ CRI, this architectural trim offers the warm dimming (from 3,050K to 1,800K) and the color tuning options. Two dimming options are compatible with the housings: ELV and 0-10V. With its first quality components, A3RFD delivers between 800 and 1,150 lumens in a 19° narrow flood beam. This product is offered in seven trim finishes to maximize its integration and personalize its look.

Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.

Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.

Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations



Ardito Series

Three aperture sizes: 2.5″, 3.5″ and 4″

Trim and Trimless (-TR) available.



Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.



Specifications

Volts: 120V-277V
Watts: 14W
Lumens: 470 – 670LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 15°/30°/42°
Luminous Size: ø3-1/2 in /H:4 in
Height: 5-5/8 in
Green: Energy Star, Yes

Product File Download

# File Added by File size Downloads
1 pdf DG-Ardito_EN liteharbor 9 MB 357
2 pdf DG_A3RFD-TR_EN liteharbor 6 MB 162
3 pdf DG_A3RFD_EN liteharbor 2 MB 167
