Contrast Lighting UR4C 4″ 15W Round Shower Trim

Description

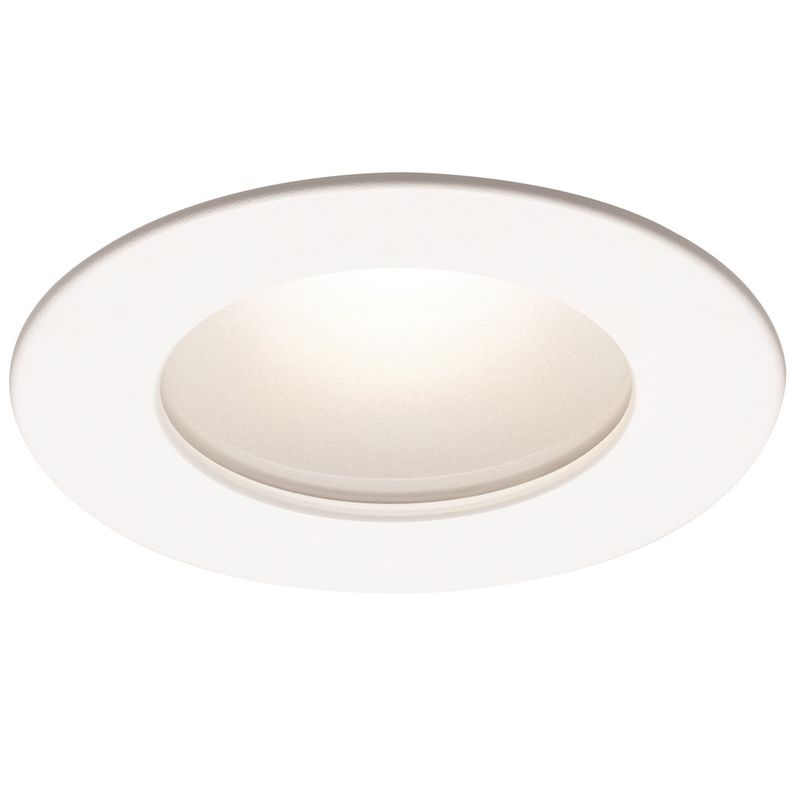

Round 4in dedicated LED shower trim of the Urbai recessed LED series available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This model is offered with a choice of three lenses. The clear lens is suggested as the standard lens for the UR4C model – a clear and a frosted clear center lenses are available too for a greater lumen output. With its standard frosted lens, the UR4C model delivers 584 lumens @ 3,000K – 58 lm/W – in performance 1. Four color temperatures are offered, with an 80+ CRI (2,700K and 3,000K only) or a 90+ CRI; only a flood beam of 48° is offered with this model. The warm dimming option is available in performance 2 (15W) and two dimming options are possible: ELV and 0-10V. Six trim finishes and three reflector finishes are suggested to maximize the integration of this model.



Specifications

Volts: 120V-277V
Watts: 10W/15W
Lumens: 764LM/ 1048LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 48°
Luminous Size: φ 3 in
Height: 4-5/16 in
Green: Energy Star, Yes

Product File Download

# File Added by File size Downloads
1 pdf DG-URBAI liteharbor 20 MB 237
2 pdf DG-FT_UR4C_EN liteharbor 7 MB 115
