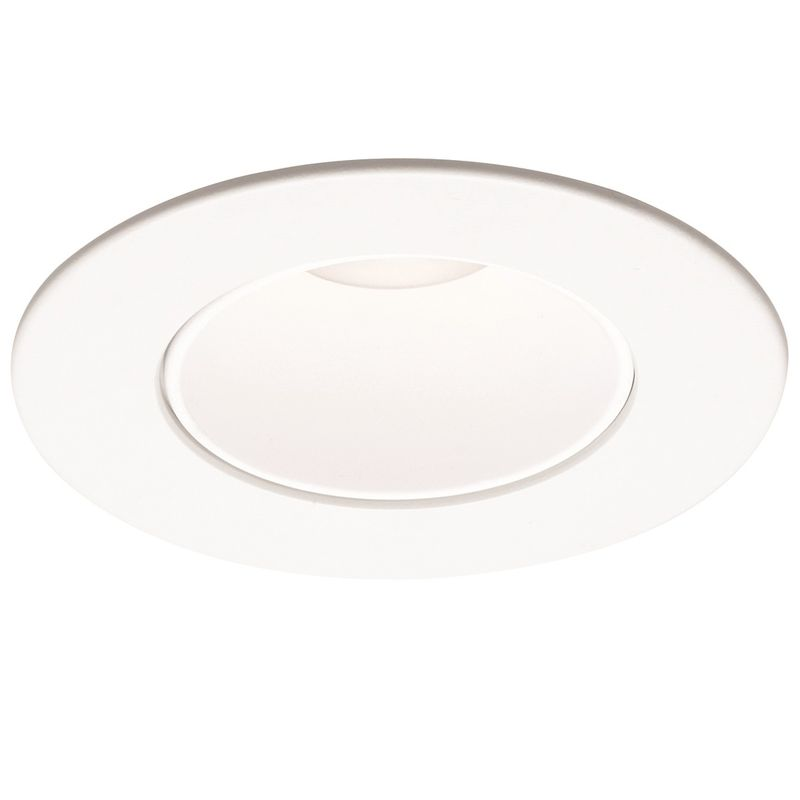

Contrast Lighting UR4E 4″ 15W Round Downlight Regressed Trim

Description
Round downlight regressed 4in dedicated LED trim of the Urbai recessed LED series available in performance 1 (10W) and performance 2 (15W) with the remodeler housing and the new construction housings. Offered in six trim finishes and three painted reflector finishes for better integration, along with a choice of six lenses – or no lens as a standard – the UR4E model is available in four color temperatures, with a 90+ CRI and an 80+ CRI (only with 2,700K and 3,000K). Three beam angles are available: a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option, offered in performance 2 (15W), allows dimming the light from 3,050K to 1,800K. The standard model – without a lens – delivers 850 lumens at 3,000K in performance 1, for 85 lm/W. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input.



Specifications

Volts: 120V-277V
Watts: 10W/15W
Lumens: 764LM/ 1048LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 16°/32°/48°
Luminous Size: φ 3 in
Height: 4-1/8 in
Green: Energy Star, Yes
