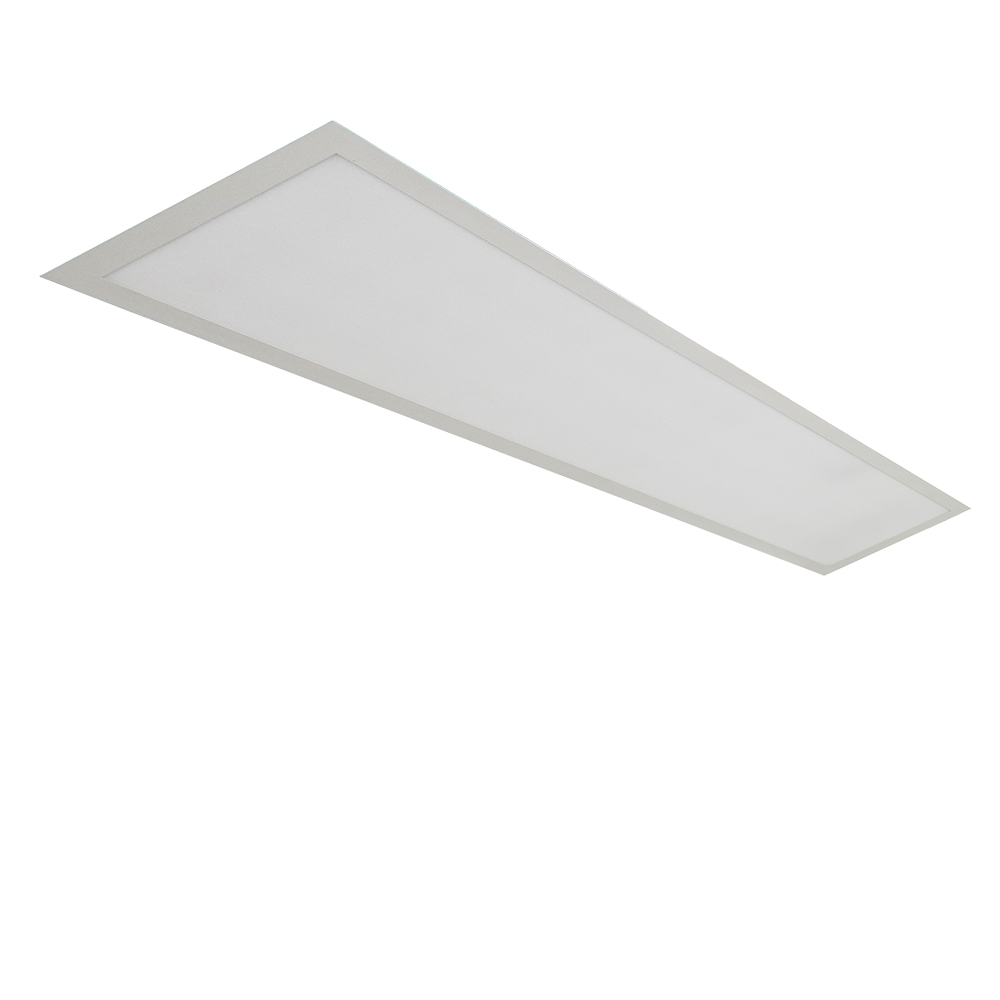

POE Solution 300 * 1200 Edgelit LED Panel Light With Power/ CCT Tunable For Lighting Project
ITEM No.： DGL-P12328-E
Panel Light Name : 300 * 1200 LED Panel Light
Wattage : 35W
Lumens : 3400LM
LED Type : SMD2835
Dimming : Dimmable
Size : 300 *1200
LED Edge-Lit Flat Panel with is the perfect replacement for fluorescent troffers used in drop ceilings. Thoughtfully designed for superior illumination, ultimate efficiency and easy installation. Designed to fit in a conventional suspended grid ceiling for new construction or retrofit projects, LED flat panels will save you time and money. Perfect for areas where you need bright, even light such as schools, universities, offices, churches, game rooms and restaurants.
- Power over Ethernet（POE） Lighitng Solution option
- 2.4G Wireless CCTTunable.
- Power & CCTTunable.
- Without LGP, never turn yellow.
- Isolated driver, PF>0.9, THD≤15 %
- Super bright SMD2835 LEDs, LM80 rated Ra>80.
- Lumen output: 130LM/W
- AC120-277V or AC120-347V, 0-10V dimmable.
- Non-flicker, no dark spot, protect your eyes.
- Ideal replacement for traditional troffer with over 80% energy saving.
- Back-lit technology diffuse reflection, uniform and soft light, no glare, no humming, no flare, no direct attention, effectively alleviate eye fatigue, more healthy use.
- Newest LGP technology, higher luminous efficiency.
- Leading LED driver design, overlong lifespan.
- Delicate structure design, ultra thin and ultra light.
- Simple, fashionable and elegant appearance.
- Easy installation,can replace the same size of ceiling lights or grille lights.
- No lead, no mercury, energy saving and environment friendly.
- IP Rating: IP40.
- Operating temperature: -20°C to 50°C.
Liteharbor’s DGL-P series with single/double ethernet interface“One in” or “One in One out”design. It’s provides Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.
|Attribute||Cat 6||Cat 7||Cat 8|
|Transmission speed||1Gbps/10 Gbps||10 Gbps||25 Gbps/40 Gbps|
|Number of Connectors in Channel||4||4||2|
|Cable Construction||UTP or Shielded||Shielded||Shielded|
|AWG||24 AWG||30 AWG||26AWG|
LED panel light is widely used in commercial lighting, residential lighting and communal facilities lighting such as meeting room, office, office building and so on.
Factory, hotel, restaurant, KTV, supermarket, market, subway station, the station’s waiting room, school, hospital, and all other places need energy saving and high CRI.
|Edgelit Regular Series Wattage||36W/40W/45W||40W/45W||50W/60W/72W|
|Edgelit Premium Series Wattage||25W/35W/40W||25W/40W||32W/40W/50W/60W|
|Edgelit 2.4G Wireless Wattage||40W||40W||50W/60W|
|Edgelit Power & CCT Tunable SeriesWattage||20W-25W-30W-35W
|Lumens / Watt||110LM/W|
|Dimming||0-10V Dimminhg/ 2.4G Wireless
Dimming / CCT
|Function||●Wireless dimm ing ●Dimming
●Wireless dimming + Sensing ●Dimming + Sensing
●Wireless dimming + Emergency ●Dimming + Emergency
●Wireless dimming + Sensing + Emergency ●Dimming + Sensing + Emergency
●CCT & Watt Tunable ●CCT & Watt Tunable + Sensing
●CCT & Watt Tunable + Emergency ●CCT & Watt Tunable + Sensing + Emergency
|Working Temperature:||-20℃ – 50℃|
|Anti-power level:||Class II|
|Emitting Color:||Warm white/Pure white/Cool white|
|Certifications:||UL DLC CE RoHS FCC|
Certifications: UL DLC CE RoHS FCC
50000 Hours Lifetime.
5-Year Limited Warranty.
Liteharbor Lighting is a manufacturer with 16-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
Contacting Liteharbor always makes surprise! www.liteharbor.com
