Recessed Multiple Downlight Single light LED RGBW

Recessed Multiple Downlight Single light LED RGBW

ITEM No.: G4011-C
Input Volt. : 85~240VAC/12VDC
DMX decoder 512DMX : 12/24VDC 256 levels
LED Driver : 85~240VAC/12VDC
RGBW Chip : COB 9 x 9 mm
FIXTURE : Trim less or trimmed
CERTIFICATE : ETL, UL, CCC, CE, TUV, RoHs, Fcc
WARRANTY : 5 Years

DMX decoder

512DMX

512/1990 Standard 12/24VDC
256 levels 4 channels
LED Driver 85~240VAC/12VDC UL Listed
5 years warranty Mean Well/ Rico
RGBW Chip 40W RGBW

Individually addressable(

channels

9 x 9 mm Extreme Lm density
COB Low Thermal resistance
Glass lens

Level 1 moisture

sensitivity

MCPCB Available

Compatible with(high(

Uniformity mixing lenses

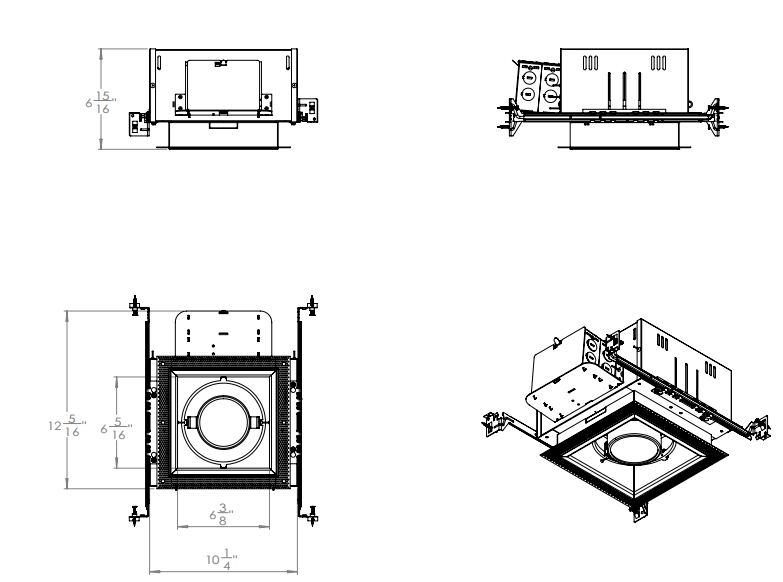

FIXTURE Trim less or trimmed UL / ETL Listed

0.5mm thick gauge

Aluminum / steel sheet

4 “device”

Compartments for

Electrical equipment

High grade commercial

brackets

Swivel in all directions

floating head

1/2” UL standard

Knockouts

5 Year warranty
CERTIFICATE ETL, UL, CCC, CE, TUV, RoHs, Fcc
WARRANTY 5 Years



Application

Down-lighting with RGBW and 512DMX control

• High end residence and Commercial applications

• Hotel

• Casino

• Photo Studio

• Art gallery

• Film studio

• Film set

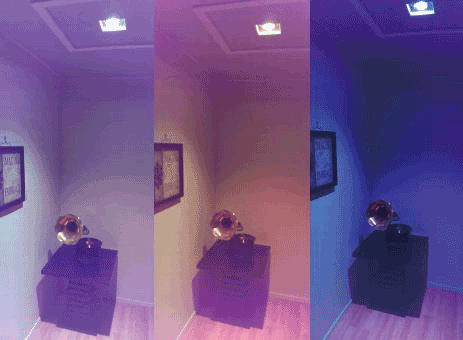

RGBW state of the art down light

Imagine creating any color your mood desires just by press of a button

Regular lighting

Reading Mode

Color changing

Party mode

DMX 512 controller needed
