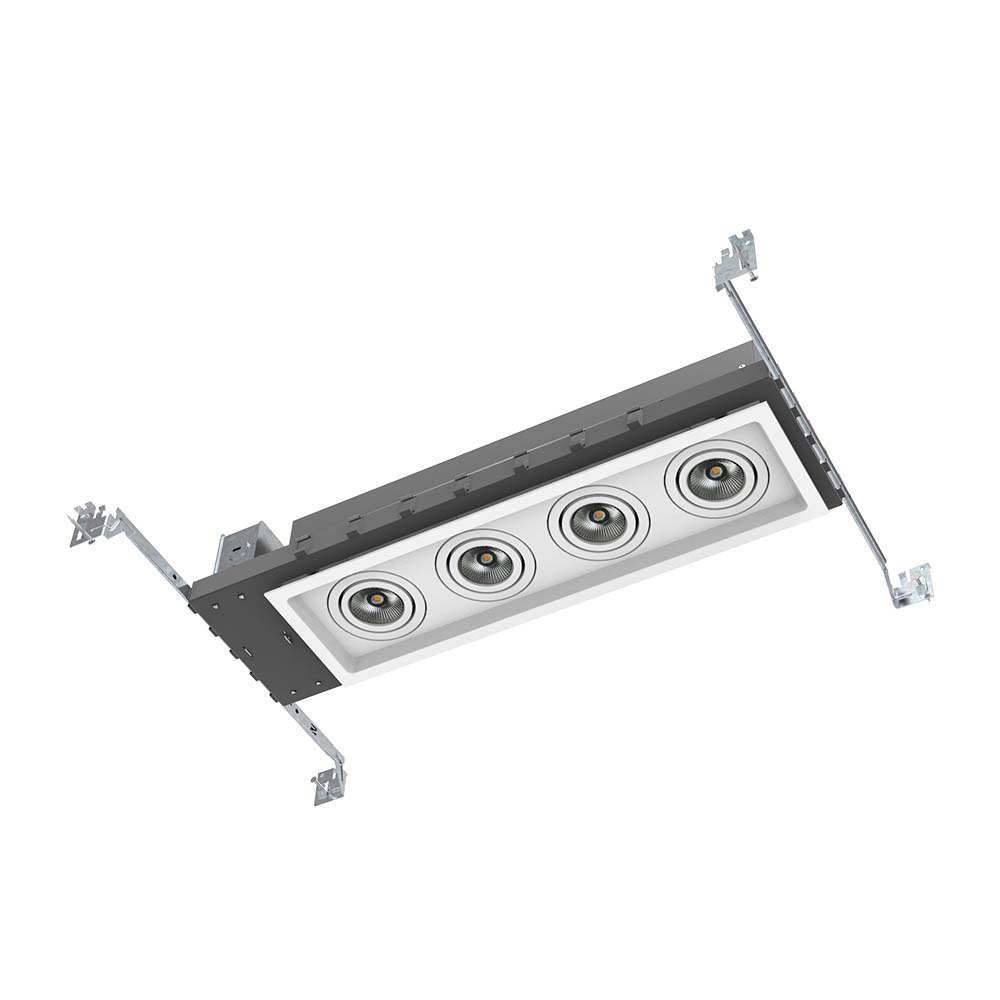

4-Lamp New Construction Mini Multiple COB LED Recessed Grille Light
ITEM No.： G4014-E-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 110V-277V
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless

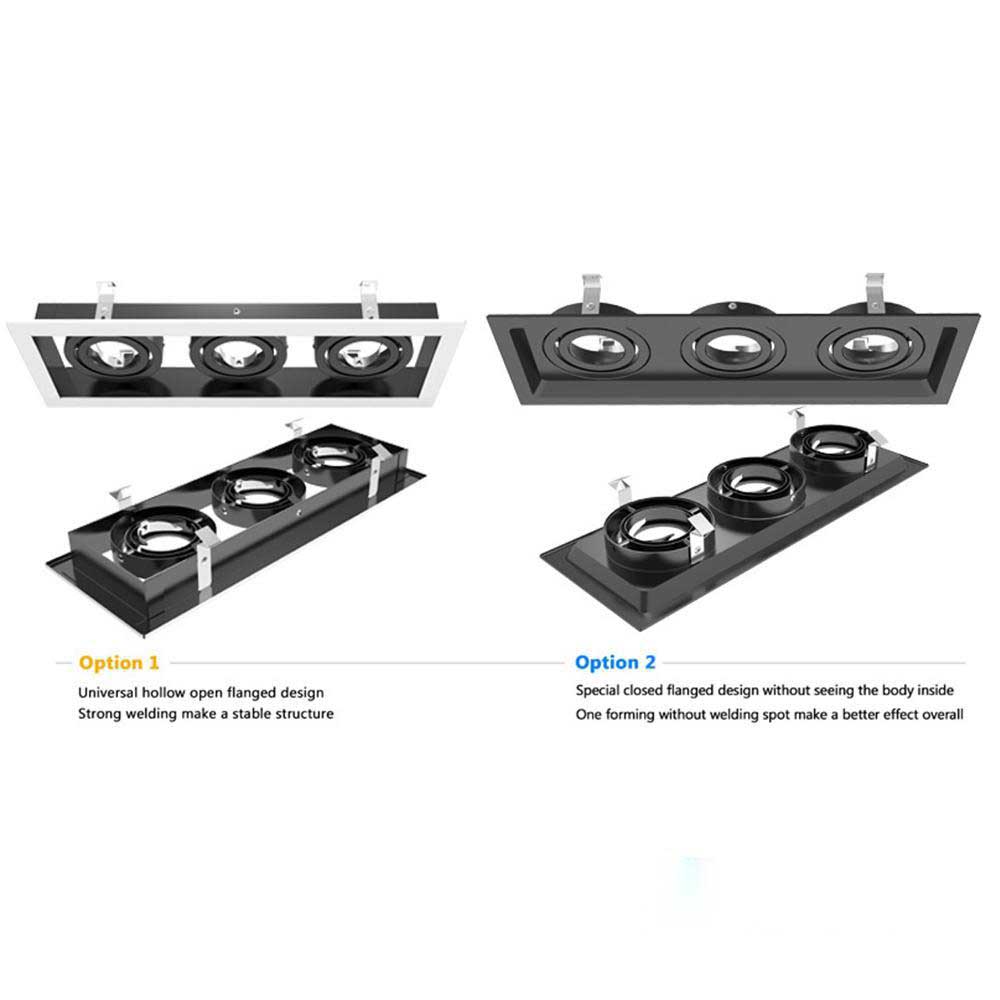

Trim Baseplate : Open or Closed Design
- Click to share on Facebook (Opens in new window)
- Click to share on LinkedIn (Opens in new window)
- Click to share on Pinterest (Opens in new window)
- Click to share on Twitter (Opens in new window)
- Click to share on Tumblr (Opens in new window)
- Click to share on WhatsApp (Opens in new window)
- Click to share on Skype (Opens in new window)
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments. The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control.
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.
– 12˚ Spot, 24° Narrow Flood, and 36˚ Flood
– Up to 30° Vertical Adjustment
– 360° Horizontal Adjustmen

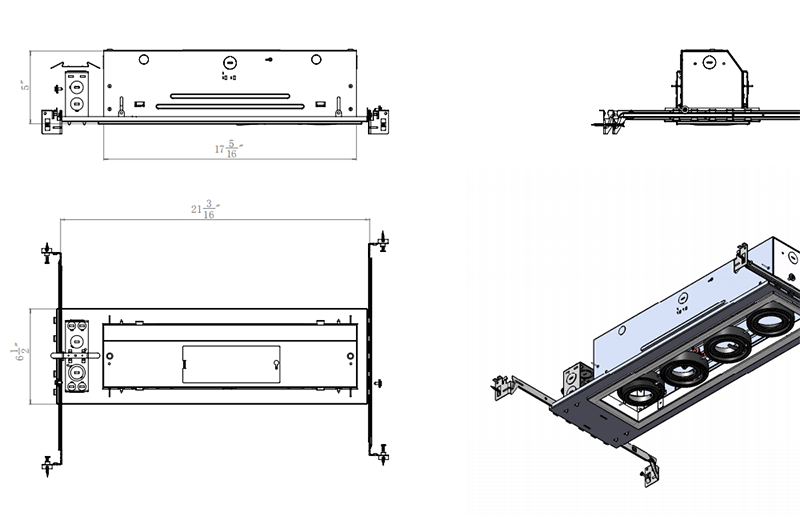

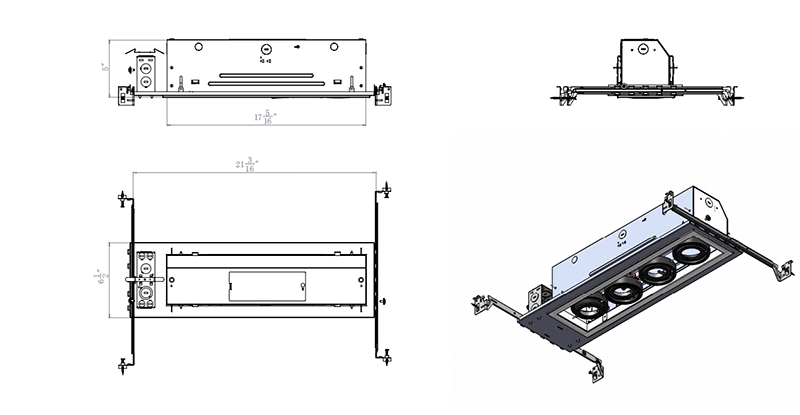

Supplied with 4 ways hanger bar, adjustable from 14½”-25″ to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting “screw-nail” for ease
installation. Can be accommodate a 1/2″ to 1 1/4″ ceiling
High output COB LED Chips
Dimmable to 10% with most brand dimmers.
|Input Voltage||AC 90-305V 50/60Hz|
|Luminous Efficiency||70 LM/W|
|Power Factor||＞ 0.98|
|Dimming*||Triac Dimming/0-10V Dimming|
|Finish||Black or White powder coat|
|General Listing||ETL listed. Damp listed.|
LISTING / WARRANTY
cETLus listed for damp location and feed through wiring.
5 Year Limited Warranty.
